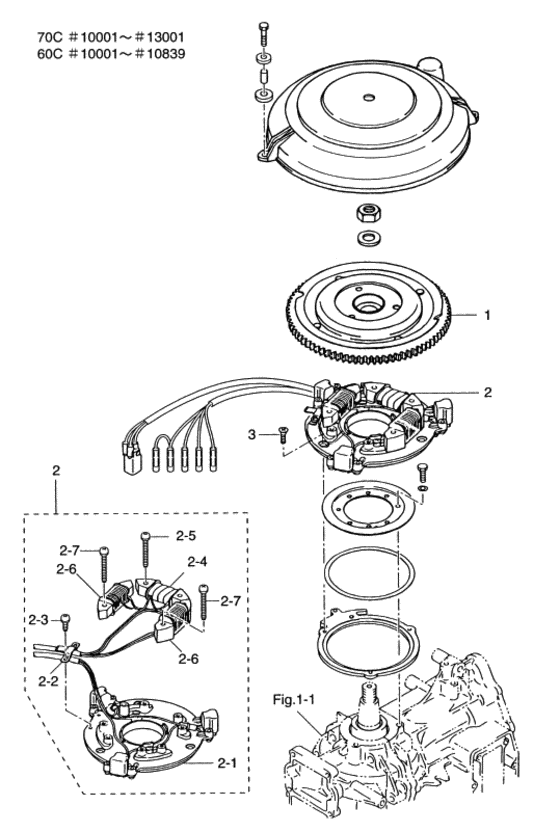

Magneto (old) Diagram Tohatsu M70C
- Year
- 2003
- Model
- M70C
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3F3-06091-2
Flywheel
70C #10001~13001 / 60C #10001~10839 |
3F3-06091-2 |
— | ||
|
2
|
2
3F3-06002-2
Coil Plate Ass'y
70C #10001~13001 / 60C #10001~10839 |
3F3-06002-2 |
— | ||
|
2-1
|
2-1
3F3-06072-1 Plate Ass'y70C #10001~13001 / 60C #10001~10839 |
3F3-06072-1 |
from US $491.04 |
||
| replacement | |||||
|
2-1
|
2-1
3F3-06002-2
Coil Plate Ass'y
70C #10001~13001 / 60C #10001~10839 |
3F3-06002-2 |
— | ||
|
2-4
|
2-4
3F3-06020-1 Exciter Coil70C #10001~13001 / 60C #10001~10839 |
3F3-06020-1 |
from US $133.49 |
||
|
2-5
|
2-5
3F3-06037-0 Screw70C #10001~13001 / 60C #10001~10839 |
3F3-06037-0 |
from US $0.74 |
||
|
2-6
|
2-6
3F3-06026-1 Alternator Set70C #10001~13001 / 60C #10001~10839 |
3F3-06026-1 |
US $128.30 |
||
|
2-7
|
2-7
3F3-06039-1 Screw70C #10001~13001 / 60C #10001~10839 |
3F3-06039-1 |
from US $1.60 |
||
|
3
|
3
921603-0512 Screw70C #10001~13001 / 60C #10001~10839 |
921603-0512 |
from US $0.86 |
||
