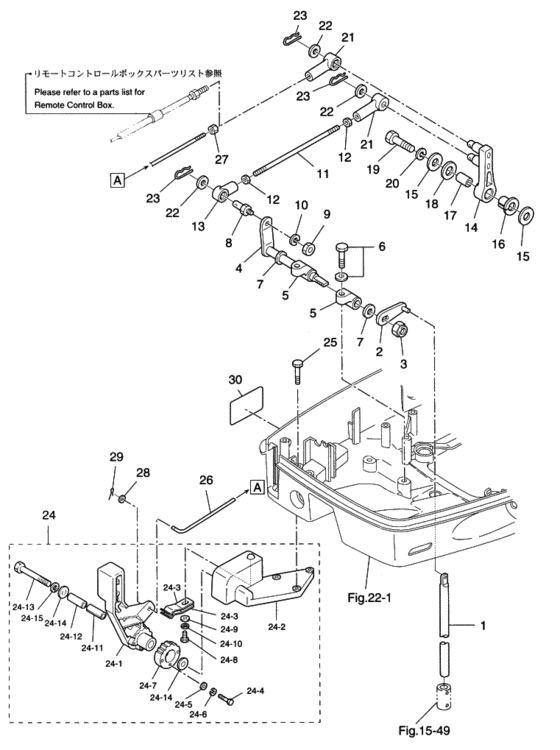

Shift Diagram Tohatsu M70C
- Year
- 2003
- Model
- M70C
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-66215-1 Shift Rod (L) |
353-66215-1 |
from US $22.90 |
||
|
2
|
2
3T9-66110-0 Shift Rod Lever |
3T9-66110-0 |
from US $19.58 |
||
| replacement | |||||
|
2
|
2
3Y9-66225-0 Shift Rod Lever |
3Y9-66225-0 |
from US $17.86 |
||
|
3
|
3
930403-1000 Nylon Nut |
930403-1000 |
from US $3.31 |
||
|
4
|
4
3B7-66225-0 Shift Lever Shaft |
3B7-66225-0 |
from US $42.48 |
||
|
5
|
5
353-66145-1 Holder |
353-66145-1 |
US $3.74 |
||
|
6
|
6
910103-5825 Bolt |
910103-5825 |
from US $2.36 |
||
|
7
|
7
332-61315-0 Washer |
332-61315-0 |
from US $1.15 |
||
|
8
|
8
353-83728-0 Cable Pin |
353-83728-0 |
US $10.14 |
||
| replacement | |||||
|
8
|
8
353-83728-1 Pin |
353-83728-1 |
from US $9.65 |
||
|
9
|
9
930113-0600
Nut
|
930113-0600 |
— | ||
| replacement | |||||
|
9
|
9
930103-0600 Nut |
930103-0600 |
from US $1.01 |
||
|
10
|
10
941303-0600 Spring Washer |
941303-0600 |
from US $1.01 |
||
|
11
|
11
3F3-05222-0 Starter Lock Rod |
3F3-05222-0 |
from US $3.60 |
||
|
12
|
12
3B2-83865-0 Nut |
3B2-83865-0 |
from US $0.72 |
||
|
13
|
13
3A3-83715-0 Cable Joint |
3A3-83715-0 |
from US $2.82 |
||
|
14
|
14
3B7-66122-0 Shift Arm |
3B7-66122-0 |
from US $8.21 |
||
| replacement | |||||
|
14
|
14
3B7-66122-2 Shift Arm |
3B7-66122-2 |
from US $12.96 |
||
|
15
|
15
3B7-63730-0 Washer |
3B7-63730-0 |
from US $1.44 |
||
|
16
|
16
3B7-63713-0 Bushing |
3B7-63713-0 |
from US $1.58 |
||
|
17
|
17
3B7-63732-0 Collar 8.4-12-17 |
3B7-63732-0 |
from US $1.66 |
||
| replacement | |||||
|
17
|
17
3B7-63732-1 Collar |
3B7-63732-1 |
from US $2.34 |
||
|
18
|
18
3B7-63731-0 Washer |
3B7-63731-0 |
from US $1.73 |
||
|
19
|
19
910103-0835 BoltOR 910103-6835 |
910103-0835 |
from US $2.02 |
||
|
20
|
20
941303-0800 Spring WasherOR 910103-6835 |
941303-0800 |
from US $0.56 |
||
|
21
|
21
3B7-83715-0 Cable Joint |
3B7-83715-0 |
US $5.46 |
||
| replacement | |||||
|
21
|
21
3B7-83715-2 Cable Joint |
3B7-83715-2 |
from US $4.03 |
||
|
22
|
22
353-83719-0 Washer 8.5-18-1.6 |
353-83719-0 |
US $2.64 |
||
| replacement | |||||
|
22
|
22
3AA-83719-0 Washer |
3AA-83719-0 |
from US $2.64 |
||
|
23
|
23
951603-0800 Snap Pin |
951603-0800 |
from US $0.86 |
||
|
24
|
24
3B7S80403-0 Shift Lever Ass'yFOR F TYPE |
3B7S80403-0 |
US $330.71 |
||
|
24-1
|
24-1
3B7S66110-0 Shift LeverFOR F TYPE |
3B7S66110-0 |
from US $163.01 |
||
|
24-10
|
24-10
941303-0600 Spring WasherFOR F TYPE |
941303-0600 |
from US $1.01 |
||
|
24-11
|
24-11
346-62437-0 BushingFOR F TYPE |
346-62437-0 |
from US $1.40 |
||
|
24-12
|
24-12
3B7-66124-0 CollarFOR F TYPE |
3B7-66124-0 |
from US $3.60 |
||
|
24-13
|
24-13
910103-0855 BoltFOR F TYPE |
910103-0855 |
from US $2.22 |
||
|
24-14
|
24-14
940113-0800 WasherFOR F TYPE |
940113-0800 |
from US $0.55 |
||
| replacements | |||||
|
24-14
|
24-14
940103-0800 WasherFOR F TYPE |
940103-0800 |
from US $0.99 |
||
|
24-14
|
24-14
9401E3-0800 WasherFOR F TYPE |
9401E3-0800 |
from US $0.72 |
||
|
24-15
|
24-15
941303-0800 Spring WasherFOR F TYPE |
941303-0800 |
from US $0.56 |
||
|
24-2
|
24-2
3B7S66115-0 Bracket Shift LeverFOR F TYPE |
3B7S66115-0 |
from US $151.07 |
||
|
24-3
|
24-3
3B2-66113-0 Shift Lever StopperFOR F TYPE |
3B2-66113-0 |
from US $2.30 |
||
| replacement | |||||
|
24-3
|
24-3
3C8-66112-0 Shift Lever StopperFOR F TYPE |
3C8-66112-0 |
US $3.39 |
||
|
24-4
|
24-4
910103-0420 BoltFOR F TYPE |
910103-0420 |
from US $0.72 |
||
|
24-5
|
24-5
940103-0400 WasherFOR F TYPE |
940103-0400 |
from US $0.71 |
||
|
24-6
|
24-6
941303-0400 Spring WasherFOR F TYPE |
941303-0400 |
from US $1.08 |
||
|
24-7
|
24-7
3B7-66121-0 Shift Lever StopperFOR F TYPE |
3B7-66121-0 |
from US $16.13 |
||
|
24-8
|
24-8
910113-0616 BoltFOR F TYPE |
910113-0616 |
from US $0.92 |
||
| replacements | |||||
|
24-8
|
24-8
910103-0616 BoltFOR F TYPE |
910103-0616 |
from US $1.01 |
||
|
24-8
|
24-8
9101E3-0616 BoltFOR F TYPE |
9101E3-0616 |
from US $1.01 |
||
|
24-9
|
24-9
940113-0600 WasherFOR F TYPE |
940113-0600 |
from US $0.58 |
||
|
25
|
25
910113-5620 BoltFOR F TYPE |
910113-5620 |
US $1.92 |
||
| replacement | |||||
|
25
|
25
9101E3-5620 BoltFOR F TYPE |
9101E3-5620 |
from US $1.76 |
||
|
26
|
26
3F3-66134-0 Shift Lever RodFOR F TYPE |
3F3-66134-0 |
from US $7.78 |
||
|
27
|
27
3B2-83865-0 NutFOR F TYPE |
3B2-83865-0 |
from US $0.72 |
||
|
28
|
28
940103-0500 WasherFOR F TYPE |
940103-0500 |
from US $0.43 |
||
|
29
|
29
951503-0212 Split PinFOR F TYPE |
951503-0212 |
from US $0.58 |
||
|
30
|
30
353-72013-0 Clutch DecalFOR F TYPE |
353-72013-0 |
from US $4.03 |
||
