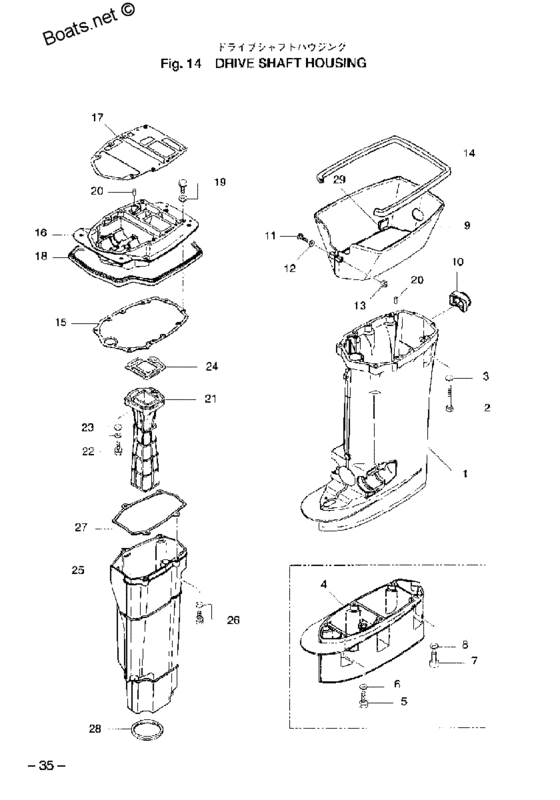

Drive shaft housing Diagram Tohatsu M70C
- Year
- 2002
- Model
- M70C
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
3A3-61017-2 Bolt 8-100 |
3A3-61017-2 |
from US $4.32 |
||
| replacement | |||||
|
2
|
2
3A3-61017-3 Bolt |
3A3-61017-3 |
from US $3.74 |
||
|
3
|
3
940203-0800 Washer |
940203-0800 |
from US $0.70 |
||
|
7
|
7
3B7-60001-2 Bolt 10-40FOR TRANSOM UL |
3B7-60001-2 |
from US $3.68 |
||
| replacement | |||||
|
7
|
7
3B7-60001-5 BoltFOR TRANSOM UL |
3B7-60001-5 |
from US $8.21 |
||
|
9
|
9
3F3S61210-0 Splash Pan |
3F3S61210-0 |
US $114.54 |
||
|
10
|
10
3F3-61212-0 Grommet |
3F3-61212-0 |
from US $5.33 |
||
|
12
|
12
940103-0500 Washer |
940103-0500 |
from US $0.43 |
||
|
13
|
13
930403-0500 Nylon Nut |
930403-0500 |
from US $1.58 |
||
|
14
|
14
3F3-61213-0 Seal |
3F3-61213-0 |
from US $5.90 |
||
|
15
|
15
3F3-61012-0 Gasket Drive Shaft Housing |
3F3-61012-0 |
from US $7.18 |
||
| replacement | |||||
|
15
|
15
3F3-61012-2 Drive Shaft Housing Gasket |
3F3-61012-2 |
from US $10.97 |
||
|
16
|
16
3F3S01301-0 Engine Base |
3F3S01301-0 |
from US $371.94 |
||
|
17
|
17
3F3-01303-1 Gasket Engine BaseT=1MM |
3F3-01303-1 |
from US $23.90 |
||
| replacement | |||||
|
17
|
17
3F3-01303-4 Engine Basement GasketT=1MM |
3F3-01303-4 |
from US $23.90 |
||
|
18
|
18
3F3-67116-0 Engine Basement Seal |
3F3-67116-0 |
from US $10.94 |
||
|
19
|
19
910103-5630 Bolt |
910103-5630 |
from US $1.30 |
||
|
20
|
20
345-01111-0 Dowel Pin |
345-01111-0 |
from US $1.15 |
||
|
21
|
21
3F3-02311-0 Exhaust Pipe |
3F3-02311-0 |
from US $95.04 |
||
|
22
|
22
910103-6835 Bolt |
910103-6835 |
from US $2.16 |
||
|
23
|
23
940103-0800 Washer |
940103-0800 |
from US $0.99 |
||
|
24
|
24
3F3-02312-0 Gasket Exhaust Pipe |
3F3-02312-0 |
from US $2.21 |
||
| replacement | |||||
|
24
|
24
3F3-02312-2 Exhaust Pipe Gasket |
3F3-02312-2 |
US $5.33 |
||
|
25
|
25
3F3-61180-0 Exhaust Housing |
3F3-61180-0 |
from US $119.52 |
||
|
27
|
27
3F3-61181-0 Gasket Exhaust Housing |
3F3-61181-0 |
from US $7.18 |
||
| replacement | |||||
|
27
|
27
3F3-61181-2 Exhaust Housing Gasket |
3F3-61181-2 |
from US $12.10 |
||
|
28
|
28
3F3-61182-0 Grommet |
3F3-61182-0 |
from US $7.34 |
||
|
29
|
29
3C7-61216-0 Pad |
3C7-61216-0 |
from US $1.15 |
||
