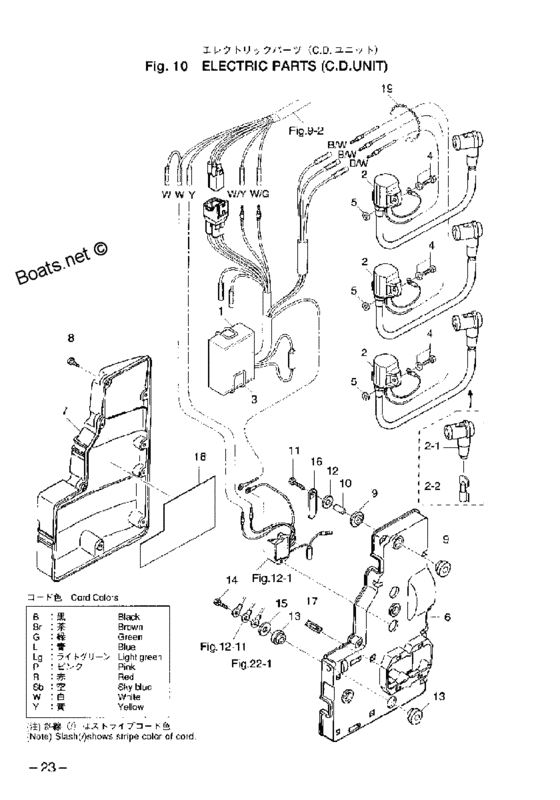

Electric parts (c.d. unit) Diagram Tohatsu M70C
- Year
- 2002
- Model
- M70C
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3F3-06060-2 C.d. Unit70C/60C- |
3F3-06060-2 |
US $340.40 |
||
|
2
|
2
3F3-06050-0
Ignition coil ass'y
|
3F3-06050-0 |
— | ||
|
2-1
|
2-1
3M2-06921-0 Plug Cap |
3M2-06921-0 |
from US $9.65 |
||
|
2-1
|
2-1
3C7-16921-0 Plug cap |
3C7-16921-0 |
US $7.35 |
||
|
2-2
|
2-2
3M2-06926-0 Plug Cap Terminal |
3M2-06926-0 |
from US $5.62 |
||
|
3
|
3
3B7-06165-0 Cd Unit Band |
3B7-06165-0 |
from US $2.59 |
||
|
5
|
5
151-33159-0 Gasket Combination Gauge |
151-33159-0 |
from US $2.02 |
||
|
6
|
6
3F3-06901-0 Electric bracket |
3F3-06901-0 |
from US $44.16 |
||
|
7
|
7
3F3-06902-0 Cover electric bracket |
3F3-06902-0 |
from US $29.44 |
||
|
8
|
8
3F3-02423-0 Tapping Screw |
3F3-02423-0 |
from US $1.15 |
||
|
10
|
10
353-76079-0 Collar |
353-76079-0 |
from US $2.02 |
||
|
11
|
11
910103-0625 Bolt |
910103-0625 |
from US $1.12 |
||
|
12
|
12
3C8-66308-0 Washer |
3C8-66308-0 |
from US $1.15 |
||
|
13
|
13
345-67113-0 Mount |
345-67113-0 |
from US $1.30 |
||
|
14
|
14
910103-0616 Bolt |
910103-0616 |
from US $1.01 |
||
|
15
|
15
346-67115-0 Washer |
346-67115-0 |
from US $1.44 |
||
|
16
|
16
309-06972-0 Clamp |
309-06972-0 |
US $2.34 |
||
| replacement | |||||
|
16
|
16
3PR-06972-0 Clamp |
3PR-06972-0 |
from US $1.44 |
||
|
17
|
17
353-76213-0 Spare Fuse |
353-76213-0 |
from US $1.56 |
||
|
18
|
18
3F3-72028-0 Label wiring diagram |
3F3-72028-0 |
from US $5.34 |
||
|
19
|
19
336-76091-0 Lead Wire Band |
336-76091-0 |
from US $0.86 |
||
