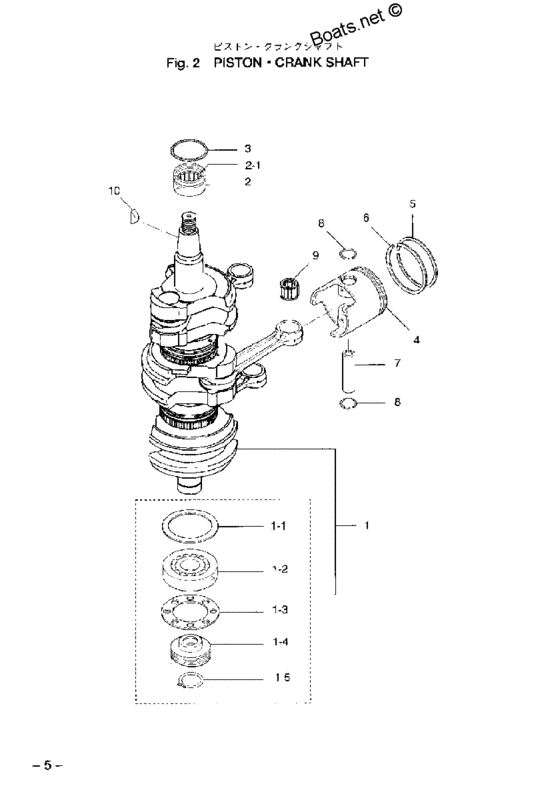

Piston & crank shaft Diagram Tohatsu M70C
- Year
- 2002
- Model
- M70C
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-00121-0 Oil Seal |
353-00121-0 |
from US $11.66 |
||
|
1
|
1
3F3-00030-0 Crank Shaft Ass'y |
3F3-00030-0 |
from US $1,705.68 |
||
| replacement | |||||
|
1
|
1
3N4-00069-1 Crankshaft Sub-Assy |
3N4-00069-1 |
from US $1,705.68 |
||
|
1-1
|
1-1
353-00115-0 Thrust Plate |
353-00115-0 |
from US $7.49 |
||
|
1-2
|
1-2
353-00118-0 Main Bearing |
353-00118-0 |
from US $32.69 |
||
|
1-3
|
1-3
3F3-00115-0 Thrust Plate |
3F3-00115-0 |
from US $4.03 |
||
|
1-4
|
1-4
3F3-09060-0 Oil Pump Drive Gear |
3F3-09060-0 |
from US $126.14 |
||
|
2
|
2
353-00113-0 Main Bearing |
353-00113-0 |
from US $60.48 |
||
|
3
|
3
353-00108-0 O-Ring |
353-00108-0 |
from US $2.45 |
||
|
4
|
4
3F3-00001-0 Piston |
3F3-00001-0 |
US $65.38 |
||
|
4
|
4
3F3-00011-2 Piston RingOPTION |
3F3-00011-2 |
from US $17.86 |
||
|
5
|
5
3F3-00014-2 Piston Ring (0.5 O/s)OPTION |
3F3-00014-2 |
from US $17.60 |
||
|
6
|
6
3F3-00015-1 Piston Ring (0.5 O/s)OPTION |
3F3-00015-1 |
from US $12.25 |
||
|
6
|
6
3F3-00012-1 Piston Ring |
3F3-00012-1 |
from US $13.39 |
||
|
7
|
7
3F3-00021-0 Piston Pin |
3F3-00021-0 |
from US $9.20 |
||
| replacement | |||||
|
7
|
7
3F3-00021-1 Piston Pin |
3F3-00021-1 |
from US $8.45 |
||
|
8
|
8
353-00024-1 Piston Pin Clip |
353-00024-1 |
from US $0.86 |
||
|
9
|
9
3F3-00042-1 Roller Bearing |
3F3-00042-1 |
from US $16.04 |
||
|
10
|
10
334-00131-0 Key |
334-00131-0 |
from US $2.45 |
||
