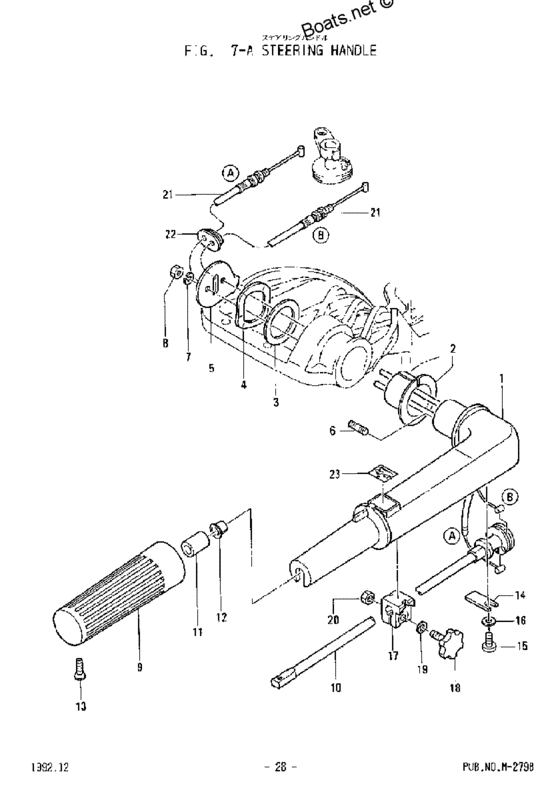

Steering handle Diagram Tohatsu M8B
- Year
- 2002
- Model
- M8B
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B2-63011-0 Steering HandleBlue, -52085 |
3B2-63011-0 |
US $49 |
||
| replacements | |||||
|
1
|
1
3B2S63011-1 Steering HandleBlue, -52085 |
3B2S63011-1 |
US $44.04 |
||
|
1
|
1
3B2Q63011-1 Tiller HandleBlue, -52085 |
3B2Q63011-1 |
from US $59.33 |
||
|
1
|
1
NB2-63011-0 Steering handleGray, Not Interchangeable, 52086- |
NB2-63011-0 |
US $49 |
||
|
2
|
2
3B2-63102-0 Bushing |
3B2-63102-0 |
from US $3.60 |
||
|
3
|
3
3B2-63108-0 Washer |
3B2-63108-0 |
from US $1.15 |
||
|
4
|
4
3B2-63109-0 Wave Washer |
3B2-63109-0 |
from US $3.02 |
||
|
5
|
5
3B2-63103-0 Steering Handle Stopper |
3B2-63103-0 |
from US $7.49 |
||
|
6
|
6
3B2-63104-0 Stud Bolt |
3B2-63104-0 |
from US $2.74 |
||
| replacement | |||||
|
6
|
6
3B2-63104-1 Stud |
3B2-63104-1 |
from US $2.45 |
||
|
7
|
7
941303-0600 Spring Washer |
941303-0600 |
from US $1.01 |
||
|
8
|
8
930103-0600 Nut |
930103-0600 |
from US $1.01 |
||
|
9
|
9
350-63012-0 Grip |
350-63012-0 |
US $33.79 |
||
| replacement | |||||
|
9
|
9
350-63012-2 Grip |
350-63012-2 |
from US $21.31 |
||
|
10
|
10
3B2-63041-0 Throttle Shaft |
3B2-63041-0 |
from US $13.39 |
||
|
11
|
11
345-63048-0 Throttle Shaft Damper |
345-63048-0 |
US $1.44 |
||
|
12
|
12
350-63046-0 Bushing |
350-63046-0 |
from US $1.40 |
||
|
13
|
13
920-83051-8 Screw |
920-83051-8 |
from US $0.86 |
||
| replacement | |||||
|
13
|
13
920803-0518 Screw |
920803-0518 |
from US $0.86 |
||
|
14
|
14
3B2-63063-0 Throttle Shaft Support |
3B2-63063-0 |
from US $1.73 |
||
|
15
|
15
910103-0612 Bolt |
910103-0612 |
from US $1.01 |
||
|
16
|
16
940-13060-0
Washer
|
940-13060-0 |
— | ||
| replacement | |||||
|
16
|
16
940103-0600 Washer |
940103-0600 |
US $0.84 |
||
|
17
|
17
3B2-63035-0 Friction Piece Grip |
3B2-63035-0 |
from US $3.74 |
||
| replacement | |||||
|
17
|
17
3B2-63035-1 Friction Piece |
3B2-63035-1 |
from US $3.02 |
||
|
18
|
18
3B2-63034-0 Adjusting Screw |
3B2-63034-0 |
from US $2.88 |
||
|
21
|
21
3B2-63600-1 Throttle Wire |
3B2-63600-1 |
from US $17.28 |
||
|
22
|
22
3B2-63621-0 Grommet |
3B2-63621-0 |
from US $2.45 |
||
|
23
|
23
369-72019-0 Lable Throttle |
369-72019-0 |
from US $1.35 |
||
| replacement | |||||
|
23
|
23
369-72019-1 Throttle Decal |
369-72019-1 |
US $1.35 |
||
