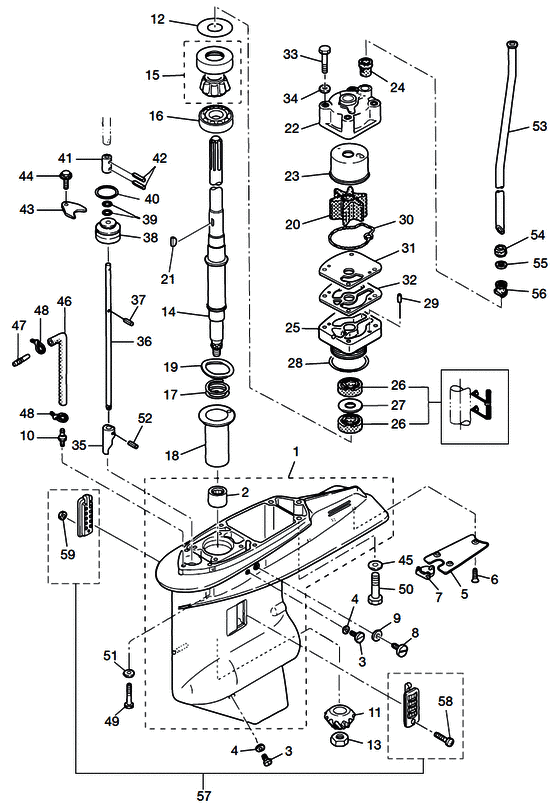

Gear case (drive shaft) Diagram Tohatsu MD115A2
- Year
- 2012
- Model
- MD115A2
- Year
- 2012
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C7Q60000-6 Gear Case Assy |
3C7Q60000-6 |
from US $873.96 |
||
|
2
|
2
3C7-60211-1 Roller Bearing |
3C7-60211-1 |
from US $32.69 |
||
|
3
|
3
332-60005-2 Plug |
332-60005-2 |
US $7.12 |
||
| replacement | |||||
|
3
|
3
332-60005-3 Plug |
332-60005-3 |
US $3.74 |
||
|
4
|
4
332-60006-0
Gasket
|
332-60006-0 |
— | ||
| replacement | |||||
|
4
|
4
332-60006-1 Gasket |
332-60006-1 |
from US $0.99 |
||
|
5
|
5
3B7-60012-1 Gear Case Plate |
3B7-60012-1 |
from US $12.24 |
||
|
6
|
6
9216E3-0614 Screw |
9216E3-0614 |
from US $0.86 |
||
|
7
|
7
3B7-60013-0 Gear Case Plate Plug |
3B7-60013-0 |
from US $2.02 |
||
|
8
|
8
3B7-60015-1 Plug |
3B7-60015-1 |
US $5.99 |
||
| replacement | |||||
|
8
|
8
3B7-60015-2 Water Plug/Oil Plug |
3B7-60015-2 |
US $5.04 |
||
|
9
|
9
3B7-60016-1 Gasket |
3B7-60016-1 |
from US $2.53 |
||
|
10
|
10
3C7-60017-0 NippleSPEEDOMETER |
3C7-60017-0 |
from US $2.30 |
||
|
11
|
11
3C7-64020-0 Bevel Gear B |
3C7-64020-0 |
from US $124.72 |
||
|
12
|
12
353-64014-0 Shim |
353-64014-0 |
from US $1.73 |
||
| replacement | |||||
|
12
|
12
353-64012-0 New Genuine Part |
353-64012-0 |
from US $2.16 |
||
|
12
|
12
353-64015-0 Shim |
353-64015-0 |
from US $1.73 |
||
| replacement | |||||
|
12
|
12
353-64012-0 New Genuine Part |
353-64012-0 |
from US $2.16 |
||
|
12
|
12
353-64016-0 Shim |
353-64016-0 |
from US $1.73 |
||
| replacement | |||||
|
12
|
12
353-64012-0 New Genuine Part |
353-64012-0 |
from US $2.16 |
||
|
13
|
13
3B7-64027-0 Nut |
3B7-64027-0 |
from US $7.34 |
||
|
14
|
14
3C7-64302-3 Drive Shaft (L)FOR TRANSOM “L” |
3C7-64302-3 |
from US $464.26 |
||
|
14
|
14
3C7-64303-3 Drive Shaft (Ul)FOR TRANSOM “UL” |
3C7-64303-3 |
from US $480.67 |
||
|
15
|
15
3C7-60213-0 Tapered Roller Bearing |
3C7-60213-0 |
from US $29.38 |
||
|
16
|
16
3C7-60214-0 Ball Bearing |
3C7-60214-0 |
from US $14.40 |
||
|
17
|
17
3C7-64327-1 Drive Shaft Spring |
3C7-64327-1 |
from US $3.89 |
||
|
18
|
18
3C7-64328-0 Drive Shaft Spring Guide |
3C7-64328-0 |
from US $5.90 |
||
|
19
|
19
3C7-60210-0 Wave Washer |
3C7-60210-0 |
from US $3.17 |
||
|
20
|
20
3C7-65021-1 Water Pump Impeller |
3C7-65021-1 |
from US $43.20 |
||
|
21
|
21
3B7-65022-0 Key |
3B7-65022-0 |
from US $12.43 |
||
|
22
|
22
3C7-65016-0 Pump Case Sub-Assy (Upper) |
3C7-65016-0 |
from US $36 |
||
|
23
|
23
3C7-65011-0 Pump Case Liner |
3C7-65011-0 |
from US $11.82 |
||
|
24
|
24
3C7-65014-0 Water Pipe Seal (Lower) |
3C7-65014-0 |
from US $1.73 |
||
|
25
|
25
3C7-65017-2 Pump Case (Lower) |
3C7-65017-2 |
from US $68.54 |
||
|
26
|
26
3C7-60223-1 Oil Seal |
3C7-60223-1 |
from US $6.73 |
||
|
27
|
27
346-64084-0 Shim |
346-64084-0 |
from US $3.31 |
||
|
28
|
28
3B7-65015-0 O-Ring |
3B7-65015-0 |
from US $4 |
||
|
29
|
29
334-65012-0 Dowel Pin |
334-65012-0 |
from US $2.72 |
||
|
30
|
30
3C7-65018-0 Pump Case Gasket |
3C7-65018-0 |
from US $3.74 |
||
|
31
|
31
3C7-65025-0 Water Pump Guide Plate |
3C7-65025-0 |
from US $9.65 |
||
|
32
|
32
3C7-65029-0 Guide Plate Gasket |
3C7-65029-0 |
from US $2.74 |
||
|
33
|
33
9161E3-0885 Bolt |
9161E3-0885 |
from US $3.84 |
||
|
34
|
34
940103-0800 WasherTRIM TAB PUMP CASE |
940103-0800 |
from US $0.99 |
||
|
35
|
35
3B7-66011-1 Clutch Cam |
3B7-66011-1 |
from US $37.58 |
||
|
36
|
36
3B7-66013-1 Cam Rod (L)FOR TRANSOM “L” |
3B7-66013-1 |
from US $14.26 |
||
|
36
|
36
3B7-66014-1 Cam Rod (Ul)FOR TRANSOM “UL” |
3B7-66014-1 |
from US $15.70 |
||
|
37
|
37
951403-3510 Spring Pin |
951403-3510 |
from US $0.72 |
||
|
38
|
38
3B7-66031-1 Cam Rod Bushing |
3B7-66031-1 |
from US $16.42 |
||
|
39
|
39
345-66021-0 O-Ring |
345-66021-0 |
from US $1.27 |
||
|
40
|
40
3B7-66023-0 O-Ring |
3B7-66023-0 |
from US $2.55 |
||
|
41
|
41
353-66241-1 Shift Rod Joint |
353-66241-1 |
from US $4.46 |
||
|
42
|
42
951403-3516 Spring Pin |
951403-3516 |
from US $0.72 |
||
|
43
|
43
353-66024-0 Stopper |
353-66024-0 |
from US $3.95 |
||
|
44
|
44
910103-6612 Bolt |
910103-6612 |
from US $1.15 |
||
|
45
|
45
9402E3-1000 Washer |
9402E3-1000 |
from US $1.01 |
||
|
46
|
46
98AL-4-0800 HoseFOR TRANSOM “L” / 98AL-401000 |
98AL-4-0800 |
US $9.69 |
||
| replacements | |||||
|
46
|
46
98AL-4-1000
Rubber Pipe
FOR TRANSOM “L” / 98AL-401000 |
98AL-4-1000 |
— | ||
|
46
|
46
98AL-401000 HoseFOR TRANSOM “L” / 98AL-401000 |
98AL-401000 |
from US $8.64 |
||
|
46
|
46
98AL-4-0920 HoseFOR TRANSOM “UL” / 98AL-401000 |
98AL-4-0920 |
US $9.69 |
||
| replacements | |||||
|
46
|
46
98AL-4-1000
Rubber Pipe
FOR TRANSOM “UL” / 98AL-401000 |
98AL-4-1000 |
— | ||
|
46
|
46
98AL-401000 HoseFOR TRANSOM “UL” / 98AL-401000 |
98AL-401000 |
from US $8.64 |
||
|
47
|
47
3C7-60018-0 Nipple |
3C7-60018-0 |
from US $2.30 |
||
|
48
|
48
353-84398-0 Band |
353-84398-0 |
from US $0.71 |
||
|
49
|
49
3T1-60001-1 Bolt |
3T1-60001-1 |
from US $4.32 |
||
|
50
|
50
3B7-60001-5 Bolt |
3B7-60001-5 |
from US $8.21 |
||
|
51
|
51
9401E3-0800 Washer |
9401E3-0800 |
from US $0.72 |
||
| replacement | |||||
|
51
|
51
940103-0800 Washer |
940103-0800 |
from US $0.99 |
||
|
52
|
52
951403-3516 Spring Pin |
951403-3516 |
from US $0.72 |
||
|
53
|
53
3C7-65110-0 Water Pipe (L)FOR TRANSOM “L” |
3C7-65110-0 |
from US $16.13 |
||
|
53
|
53
3C7-65120-0 Water Pipe (Ul)FOR TRANSOM “UL” |
3C7-65120-0 |
from US $18 |
||
|
54
|
54
3C7-65206-0 Water Pipe Seal (Upper) |
3C7-65206-0 |
from US $1.87 |
||
|
55
|
55
345-65205-0 Collar |
345-65205-0 |
from US $2.16 |
||
|
56
|
56
3C7-65204-0 Water Pipe Auxiliary Mount |
3C7-65204-0 |
from US $2.02 |
||
|
57
|
57
3C7-60205-1 Water Strainer Set |
3C7-60205-1 |
from US $12.37 |
||
|
58
|
58
921503-0445 Screw |
921503-0445 |
from US $1.01 |
||
|
59
|
59
930403-0400 Nylon Nut |
930403-0400 |
from US $1.44 |
||
