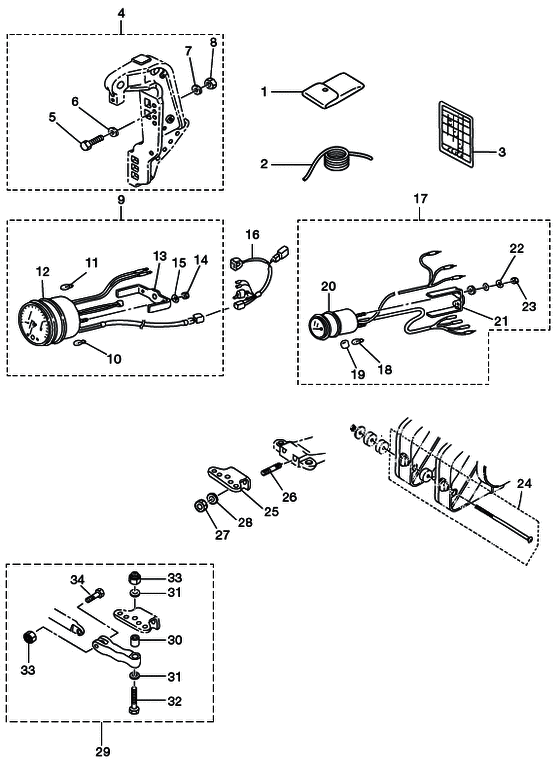

Accessories Diagram Tohatsu MD50B2
- Year
- 2010
- Model
- MD50B2
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3H6-72100-0 Tool Kit |
3H6-72100-0 |
from US $25.76 |
||
| replacement | |||||
|
1
|
1
3BJ-72100-0 Tool Kit |
3BJ-72100-0 |
from US $29.38 |
||
|
2
|
2
3B7-72201-0 Safety Rope |
3B7-72201-0 |
from US $3.74 |
||
|
3
|
3
3T5-72050-0 Buzzer Caution Decal |
3T5-72050-0 |
from US $4.90 |
||
|
4
|
4
3C8-72120-0 Rigging Bolt Set |
3C8-72120-0 |
from US $52.85 |
||
|
5
|
5
3C7-62133-2 Bolt |
3C7-62133-2 |
from US $9.07 |
||
|
6
|
6
353-61334-0 Washer |
353-61334-0 |
from US $3.64 |
||
|
7
|
7
940103-1200 Washer |
940103-1200 |
from US $0.72 |
||
|
8
|
8
3C7-62139-1 Nut |
3C7-62139-1 |
from US $2.30 |
||
|
9
|
9
3GF-72647-0 Tachometer Kit |
3GF-72647-0 |
from US $164.27 |
||
| replacement | |||||
|
9
|
9
3GF-72647-1 Tachometer |
3GF-72647-1 |
from US $164.27 |
||
|
9
|
9
3GL-72647-0 Tachometer Kit |
3GL-72647-0 |
from US $164.27 |
||
|
9
|
9
3Z5-72640-1 Tachometer W/oil LampFOR P TYPE |
3Z5-72640-1 |
US $345.60 |
||
|
10
|
10
3B7-72658-0 Oil BulbFOR P TYPE |
3B7-72658-0 |
from US $2.45 |
||
|
11
|
11
3B7-72659-0 Meter BulbFOR P TYPE |
3B7-72659-0 |
US $2.45 |
||
|
12
|
12
3B7-72656-0 Meter DamperFOR P TYPE |
3B7-72656-0 |
from US $2.45 |
||
|
13
|
13
3B7-72661-0 Fitting PlateFOR P TYPE |
3B7-72661-0 |
from US $18 |
||
|
14
|
14
930203-0500 NutFOR P TYPE |
930203-0500 |
from US $0.72 |
||
|
15
|
15
941303-0500 Spring WasherFOR P TYPE |
941303-0500 |
from US $0.86 |
||
|
16
|
16
3T5-72537-0 Lead Wire MeterFOR P TYPE |
3T5-72537-0 |
from US $227.89 |
||
| replacement | |||||
|
16
|
16
3T5-72537-1 Meter Lead WireFOR P TYPE |
3T5-72537-1 |
from US $227.89 |
||
|
17
|
17
3GF-72571-0 Trim Meter Kit |
3GF-72571-0 |
from US $138.48 |
||
| replacement | |||||
|
17
|
17
3ZC-72523-0 TRIM METER KIT BLACK |
3ZC-72523-0 |
US $138.48 |
||
|
17
|
17
3GL-72571-0 Trim Meter Kit |
3GL-72571-0 |
from US $63.96 |
||
|
17
|
17
3T1-72571-0 Trim Meter AssyFOR P TYPE |
3T1-72571-0 |
US $257.76 |
||
|
18
|
18
3T1-72659-0 Meter BulbFOR P TYPE |
3T1-72659-0 |
from US $2.59 |
||
|
19
|
19
3T1-72653-0 Meter Bulb CapFOR P TYPE |
3T1-72653-0 |
from US $1.73 |
||
|
20
|
20
3B7-72655-0 Meter DamperFOR P TYPE |
3B7-72655-0 |
from US $2.16 |
||
|
21
|
21
3T1-72665-0 Fitting PlateFOR P TYPE |
3T1-72665-0 |
from US $14.27 |
||
|
22
|
22
941303-0400 Spring WasherFOR P TYPE |
941303-0400 |
from US $1.08 |
||
|
23
|
23
930203-0400 NutFOR P TYPE |
930203-0400 |
from US $0.58 |
||
|
24
|
24
3A3-81301-0 Twin Remote Control Kit |
3A3-81301-0 |
from US $37.58 |
||
|
25
|
25
3C8-84830-0 Steering Hook Plate |
3C8-84830-0 |
from US $33.70 |
||
|
26
|
26
915203-0816 Stud |
915203-0816 |
from US $10.18 |
||
|
27
|
27
930403-0800 Nylon Nut |
930403-0800 |
from US $2.81 |
||
|
28
|
28
940103-0600 Washer |
940103-0600 |
US $0.84 |
||
|
29
|
29
3C8Q84960-0 Clevis Assy |
3C8Q84960-0 |
from US $266.72 |
||
|
30
|
30
3C8-84962-0 Collar |
3C8-84962-0 |
from US $4.03 |
||
|
31
|
31
353-84916-0 Washer |
353-84916-0 |
from US $1.44 |
||
|
32
|
32
3C8-84963-0 Bolt |
3C8-84963-0 |
from US $3.60 |
||
|
33
|
33
353-84918-0 Nylon Nut |
353-84918-0 |
from US $4.18 |
||
|
34
|
34
3C8-84964-0 Bolt |
3C8-84964-0 |
from US $5.90 |
||
