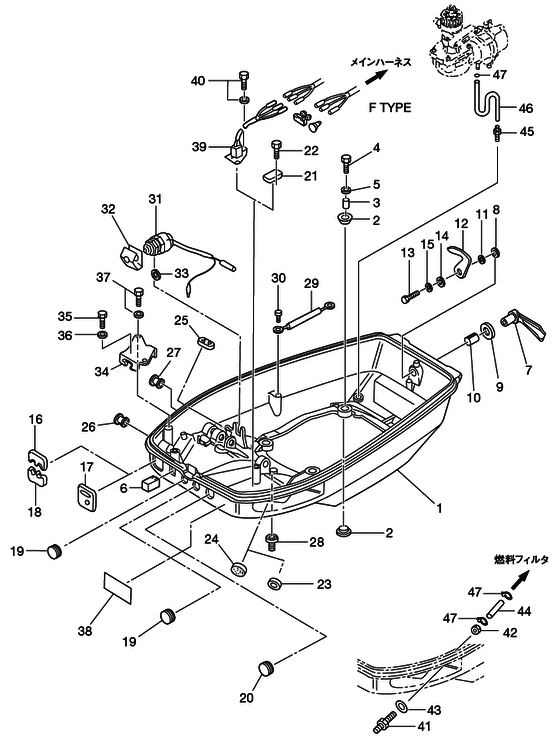

Bottom cowl (motor cover lower) Diagram Tohatsu MD50B2
- Year
- 2010
- Model
- MD50B2
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C8Q67100-0
Bottom Cowl
|
3C8Q67100-0 |
— | ||
|
2
|
2
346-67113-0 Mount |
346-67113-0 |
from US $1.30 |
||
|
3
|
3
346-67114-1 Spacer |
346-67114-1 |
from US $1.15 |
||
| replacement | |||||
|
3
|
3
346-67114-0 Spacer 6.2-9-15.7 |
346-67114-0 |
from US $1.29 |
||
|
4
|
4
9101E3-0630 Bolt |
9101E3-0630 |
from US $1.44 |
||
|
5
|
5
346-67115-0 Washer |
346-67115-0 |
from US $1.44 |
||
|
6
|
6
3T5-67150-0 Plug |
3T5-67150-0 |
from US $1.55 |
||
|
7
|
7
3C8Q67141-0 Hook Lever |
3C8Q67141-0 |
from US $13.39 |
||
|
8
|
8
3C8-67146-0 Washer |
3C8-67146-0 |
from US $1.73 |
||
|
9
|
9
338-67147-0 Seal Ring |
338-67147-0 |
from US $1.44 |
||
|
10
|
10
369-67105-0 Hook Lever Bushing |
369-67105-0 |
from US $1.58 |
||
|
11
|
11
941403-1400 Wave Washer |
941403-1400 |
from US $0.71 |
||
|
12
|
12
3C8-67142-1 Cover Hook |
3C8-67142-1 |
from US $11.59 |
||
|
13
|
13
9101F4-0612 Bolt |
9101F4-0612 |
from US $1.15 |
||
| replacements | |||||
|
13
|
13
910114-0612 Bolt |
910114-0612 |
from US $0.74 |
||
|
13
|
13
910103-0612 Bolt |
910103-0612 |
from US $1.01 |
||
|
14
|
14
3C8-66308-0 Washer |
3C8-66308-0 |
from US $1.15 |
||
|
15
|
15
941303-0600 Spring Washer |
941303-0600 |
from US $1.01 |
||
|
16
|
16
3C8-83732-0 GrommetFOR P TYPE |
3C8-83732-0 |
from US $1.56 |
||
|
17
|
17
3T5-67162-0 GrommetFOR F TYPE |
3T5-67162-0 |
from US $7.32 |
||
|
18
|
18
3C8-76116-1 GrommetFOR P TYPE |
3C8-76116-1 |
from US $1.68 |
||
|
19
|
19
345-67117-0 Grommet |
345-67117-0 |
US $1.68 |
||
|
20
|
20
345-76092-0 Grommet |
345-76092-0 |
from US $3.46 |
||
|
21
|
21
3C8-72619-0
Grommet
FOR F TYPE |
3C8-72619-0 |
— | ||
|
22
|
22
910103-0610 BoltFOR F TYPE |
910103-0610 |
from US $1.01 |
||
|
23
|
23
338-67163-0 Grommet |
338-67163-0 |
from US $1.58 |
||
|
24
|
24
345-67117-0 Grommet |
345-67117-0 |
US $1.68 |
||
|
25
|
25
3C8-63621-0 GrommetFOR F TYPE |
3C8-63621-0 |
from US $2.59 |
||
|
25
|
25
3C8-63624-0 GrommetFOR P TYPE |
3C8-63624-0 |
from US $2.59 |
||
|
26
|
26
3B2-67187-0 GrommetFOR P TYPE |
3B2-67187-0 |
from US $2.45 |
||
|
27
|
27
3B7-01046-0 Plug |
3B7-01046-0 |
from US $1.15 |
||
|
28
|
28
345-66226-0 Grommet |
345-66226-0 |
from US $2.81 |
||
|
29
|
29
3N4-76142-1 Ground Cable |
3N4-76142-1 |
from US $4.61 |
||
| replacement | |||||
|
29
|
29
3N4-76142-0 Ground Cable |
3N4-76142-0 |
from US $5.18 |
||
|
30
|
30
910103-6612 Bolt |
910103-6612 |
from US $1.15 |
||
|
31
|
31
398-76080-0 Neutral SwitchFOR F TYPE |
398-76080-0 |
from US $29.38 |
||
|
32
|
32
398-76083-0 Neutral Switch ActuatorFOR F TYPE |
398-76083-0 |
from US $6.19 |
||
|
33
|
33
3B7-63731-0 WasherFOR F TYPE |
3B7-63731-0 |
from US $1.73 |
||
|
34
|
34
3C8-83820-0 Bracket Remote Control CableFOR P TYPE |
3C8-83820-0 |
from US $10.02 |
||
|
35
|
35
3C8-83821-0 ScrewFOR P TYPE |
3C8-83821-0 |
from US $1.99 |
||
|
36
|
36
941303-0400 Spring WasherFOR P TYPE |
941303-0400 |
from US $1.08 |
||
|
37
|
37
910103-5616 BoltFOR P TYPE |
910103-5616 |
from US $1.15 |
||
| replacement | |||||
|
37
|
37
9101E3-5616 BoltFOR P TYPE |
9101E3-5616 |
from US $1.58 |
||
|
38
|
38
3T5-72057-0 Lavel Power Trim & SwitchFOR P TYPE |
3T5-72057-0 |
from US $1.66 |
||
|
39
|
39
3T5-72613-1 Switch B Ass'y PttFOR P TYPE |
3T5-72613-1 |
from US $75.02 |
||
|
40
|
40
910103-5612 BoltFOR P TYPE |
910103-5612 |
from US $1.12 |
||
| replacement | |||||
|
40
|
40
9101E3-5612 BoltFOR P TYPE |
9101E3-5612 |
from US $1.52 |
||
|
41
|
41
3B2-70260-1 Fuel Connector (Male) |
3B2-70260-1 |
from US $18.72 |
||
|
42
|
42
332-70261-0 Nut |
332-70261-0 |
from US $2.39 |
||
|
43
|
43
336-70112-0 Gasket |
336-70112-0 |
from US $1.01 |
||
|
44
|
44
98AB-5-0260 Hose98AB-501000 |
98AB-5-0260 |
US $12.25 |
||
| replacement | |||||
|
44
|
44
98AB-501000 Rubber Hose (1 M)98AB-501000 |
98AB-501000 |
from US $8.44 |
||
|
45
|
45
3BA-01138-0 Nipple |
3BA-01138-0 |
from US $2.16 |
||
|
46
|
46
98AB-5-0250 Rubber Hose98AB-501000 |
98AB-5-0250 |
US $12.91 |
||
| replacement | |||||
|
46
|
46
98AB-501000 Rubber Hose (1 M)98AB-501000 |
98AB-501000 |
from US $8.44 |
||
|
47
|
47
338-02215-0 Clip |
338-02215-0 |
from US $1.15 |
||
