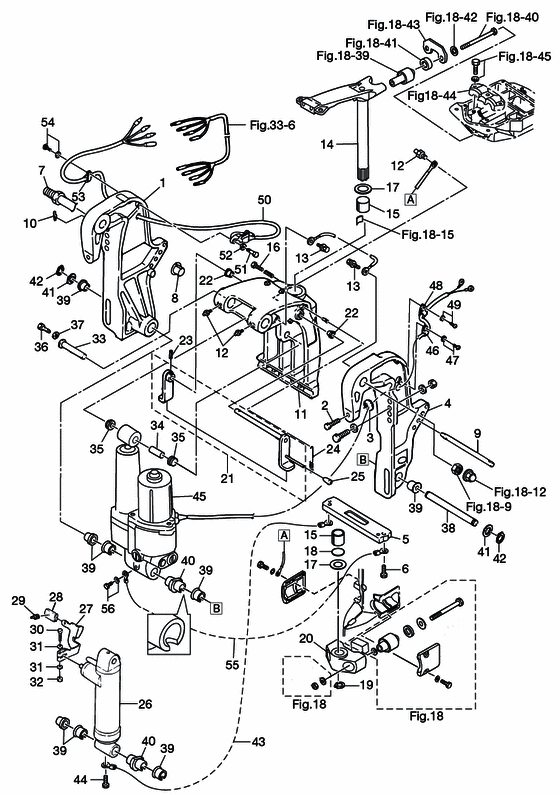

Bracket (2) power trim & tilt Diagram Tohatsu MD50B2
- Year
- 2010
- Model
- MD50B2
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Z5Q77211-0 Clamp Bracket R (Right)STERN BRACKET (RIGHT) STARBOARD |
3Z5Q77211-0 |
from US $174.80 |
||
|
2
|
2
3C8-77214-0 Clamp screwR |
3C8-77214-0 |
from US $14.69 |
||
| replacement | |||||
|
2
|
2
3C8-77216-0 Clamp Screw (Ptt)R |
3C8-77216-0 |
from US $43.88 |
||
|
3
|
3
332-62101-0 Pad Clamp ScrewR |
332-62101-0 |
US $4.71 |
||
|
4
|
4
3Z5Q77212-0 Clamp Bracket (Left)STERN BRACKET (LEFT) PORT |
3Z5Q77212-0 |
from US $174.80 |
||
|
5
|
5
3C7-60218-2 Anode |
3C7-60218-2 |
from US $18 |
||
|
6
|
6
910103-6630 Bolt |
910103-6630 |
from US $1.28 |
||
|
7
|
7
3AD-62191-0 Swivel Bracket Shaft AssyBRACKET BOLT |
3AD-62191-0 |
from US $45.79 |
||
|
8
|
8
3C8-77213-0 Bushing |
3C8-77213-0 |
from US $3.60 |
||
|
9
|
9
3R0-77118-0 Ptt Thrust Rod |
3R0-77118-0 |
from US $25.74 |
||
|
10
|
10
951603-1000 Snap Pin |
951603-1000 |
from US $1.01 |
||
|
11
|
11
3Z5Q77215-0 Swivel Bracket (Ptt) |
3Z5Q77215-0 |
from US $330.41 |
||
| replacement | |||||
|
11
|
11
3GFQ77208-0 Swivel Bracket Assy |
3GFQ77208-0 |
US $372.38 |
||
|
12
|
12
344-67177-0 Grease Nipple |
344-67177-0 |
US $2.89 |
||
| replacement | |||||
|
12
|
12
344-67177-1 Grease Fitting |
344-67177-1 |
from US $2.45 |
||
|
13
|
13
9101E3-5612 BoltFOR GAS ASSIST MODEL |
9101E3-5612 |
from US $1.52 |
||
|
14
|
14
3Z5Q62010-0 Steering Shaft |
3Z5Q62010-0 |
US $338.72 |
||
| replacement | |||||
|
14
|
14
3Z5Q62010-1 Steering Shaft Assy |
3Z5Q62010-1 |
US $432.43 |
||
|
15
|
15
353-62417-0 Bushing |
353-62417-0 |
from US $4.94 |
||
|
16
|
16
9101E3-0830 Bolt |
9101E3-0830 |
from US $1.73 |
||
| replacement | |||||
|
16
|
16
910103-0830 Bolt |
910103-0830 |
from US $1.73 |
||
|
17
|
17
353-62423-1 Thrust Plate (Upper) |
353-62423-1 |
from US $4.18 |
||
|
18
|
18
353-62415-0 O-Ring |
353-62415-0 |
from US $2.12 |
||
|
19
|
19
945103-2800 C-Ring |
945103-2800 |
from US $1.17 |
||
| replacement | |||||
|
19
|
19
945127-2800 C-Ring |
945127-2800 |
from US $0.99 |
||
|
20
|
20
3Z5Q61411-0 Mount Bracket |
3Z5Q61411-0 |
from US $139.82 |
||
|
21
|
21
3R0Q62470-0 Tilt Stopper (Ptt)FOR GAS ASSIST MODEL |
3R0Q62470-0 |
from US $73.40 |
||
| replacement | |||||
|
21
|
21
3AC-62466-1 Tilt Stopper KitFOR GAS ASSIST MODEL |
3AC-62466-1 |
from US $73.40 |
||
|
21
|
21
3Z5-62470-1 Tilt Stopper Ass'yFOR PTT MODEL |
3Z5-62470-1 |
US $73.40 |
||
| replacement | |||||
|
21
|
21
3GF-62466-1 Tilt Stopper KitFOR PTT MODEL |
3GF-62466-1 |
from US $73.40 |
||
|
22
|
22
353-63207-0 Collar |
353-63207-0 |
from US $1.12 |
||
|
23
|
23
951403-3516 Spring Pin |
951403-3516 |
from US $0.72 |
||
|
24
|
24
3R0-62473-0 Tilt Stopper Spring |
3R0-62473-0 |
from US $4.30 |
||
|
25
|
25
369-62433-1 Tilt Stopper Grip |
369-62433-1 |
from US $1.41 |
||
|
27
|
27
3R0-66311-0 Reverse Lock LeverFOR GAS ASSIST MODEL |
3R0-66311-0 |
from US $31.10 |
||
|
28
|
28
3AL-66333-0 Reverse Lock Lever GripFOR GAS ASSIST MODEL |
3AL-66333-0 |
from US $3.98 |
||
|
29
|
29
346-66334-0 StopperFOR GAS ASSIST MODEL |
346-66334-0 |
from US $0.86 |
||
|
30
|
30
9101F4-0635 BoltFOR GAS ASSIST MODEL |
9101F4-0635 |
US $1.58 |
||
| replacement | |||||
|
30
|
30
910114-0635 BoltFOR GAS ASSIST MODEL |
910114-0635 |
from US $1.15 |
||
|
31
|
31
9401E3-0600 WasherFOR GAS ASSIST MODEL |
9401E3-0600 |
from US $0.58 |
||
| replacement | |||||
|
31
|
31
940113-0600 WasherFOR GAS ASSIST MODEL |
940113-0600 |
from US $0.58 |
||
|
31
|
31
940103-0600 WasherFOR GAS ASSIST MODEL |
940103-0600 |
US $0.84 |
||
|
32
|
32
9301E3-0600 NutFOR GAS ASSIST MODEL |
9301E3-0600 |
from US $0.72 |
||
| replacements | |||||
|
32
|
32
930103-0600 NutFOR GAS ASSIST MODEL |
930103-0600 |
from US $1.01 |
||
|
32
|
32
930113-0600
Nut
FOR GAS ASSIST MODEL |
930113-0600 |
— | ||
|
33
|
33
3R0-77071-1 Cylinder Pin (Upper)FOR GAS ASSIST MODEL |
3R0-77071-1 |
US $9.45 |
||
| replacement | |||||
|
33
|
33
3KY-77071-0 Cylinder Pin (Upper)FOR GAS ASSIST MODEL |
3KY-77071-0 |
from US $9.45 |
||
|
34
|
34
3R0-77075-0 BushingFOR GAS ASSIST MODEL |
3R0-77075-0 |
from US $1.73 |
||
|
35
|
35
3R0-77076-0 BushingFOR GAS ASSIST MODEL |
3R0-77076-0 |
from US $1.73 |
||
|
36
|
36
910103-0612 BoltFOR GAS ASSIST MODEL |
910103-0612 |
from US $1.01 |
||
|
36
|
36
9101E3-0612 BoltFOR PTT MODEL |
9101E3-0612 |
from US $0.99 |
||
| replacement | |||||
|
36
|
36
910103-0612 BoltFOR PTT MODEL |
910103-0612 |
from US $1.01 |
||
|
37
|
37
345-05122-1 WasherFOR GAS ASSIST MODEL |
345-05122-1 |
from US $2.41 |
||
|
38
|
38
3R0-77101-1 Cylinder pin lowerFOR GAS ASSIST MODEL |
3R0-77101-1 |
US $41.98 |
||
| replacement | |||||
|
38
|
38
3KY-77101-0 Cylinder Pin (Lower)FOR GAS ASSIST MODEL |
3KY-77101-0 |
from US $41.62 |
||
|
39
|
39
3C8-77076-1 BushingFOR GAS ASSIST MODEL |
3C8-77076-1 |
from US $2.30 |
||
|
40
|
40
3Z5-77103-0 BushingFOR GAS ASSIST MODEL |
3Z5-77103-0 |
from US $3.48 |
||
|
41
|
41
3R0-77112-0 WasherFOR GAS ASSIST MODEL |
3R0-77112-0 |
from US $2.30 |
||
|
42
|
42
945103-1800 C-RingFOR GAS ASSIST MODEL |
945103-1800 |
from US $1.87 |
||
|
43
|
43
3C8-62396-1 GroundFOR GAS ASSIST MODEL |
3C8-62396-1 |
from US $6.12 |
||
|
44
|
44
910103-5608 BoltFOR GAS ASSIST MODEL |
910103-5608 |
from US $1.15 |
||
|
45
|
45
3Z5-77150-1
Ptt Assy
FOR PTT MODEL |
3Z5-77150-1 |
— | ||
| replacement | |||||
|
45
|
45
3Z5-77150-3 PTT ASSYFOR PTT MODEL |
3Z5-77150-3 |
US $1,872.72 |
||
|
46
|
46
336-06973-0 ClampFOR PTT MODEL |
336-06973-0 |
from US $1.28 |
||
|
47
|
47
921503-5612 ScrewFOR PTT MODEL |
921503-5612 |
from US $1 |
||
|
48
|
48
345-06915-0 ClampFOR PTT MODEL |
345-06915-0 |
from US $3.24 |
||
|
49
|
49
921503-5612 ScrewFOR PTT MODEL |
921503-5612 |
from US $1 |
||
|
50
|
50
3Z4-72574-0 Trim SensorFOR PTT MODEL |
3Z4-72574-0 |
from US $244.80 |
||
|
51
|
51
910103-0620 BoltFOR P TYPE |
910103-0620 |
from US $1.01 |
||
|
52
|
52
3C8-66308-0 WasherFOR P TYPE |
3C8-66308-0 |
from US $1.15 |
||
|
53
|
53
336-06973-0 ClampFOR P TYPE |
336-06973-0 |
from US $1.28 |
||
|
54
|
54
921503-5612 ScrewFOR P TYPE |
921503-5612 |
from US $1 |
||
|
55
|
55
398-62396-1 Ground |
398-62396-1 |
from US $5.47 |
||
|
56
|
56
9101E3-5612 Bolt |
9101E3-5612 |
from US $1.52 |
||
