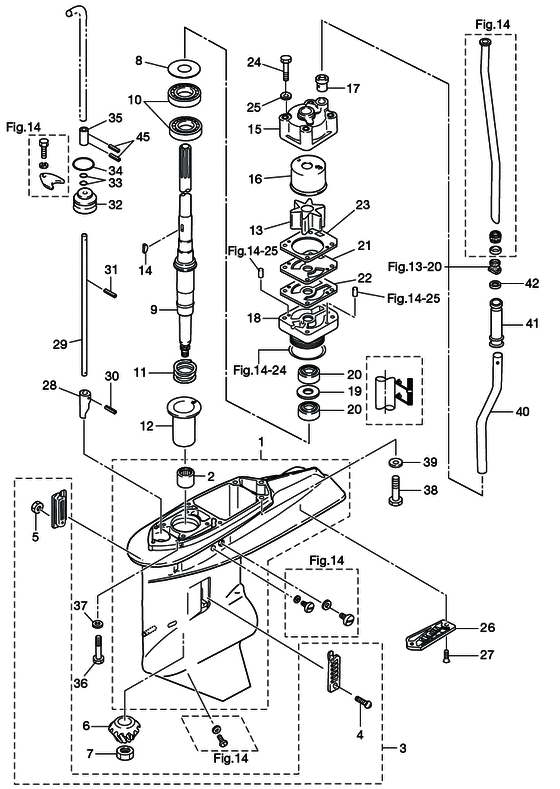

Gear case (drive shaft) for mwd50 bigfoot only Diagram Tohatsu MD50B2
- Year
- 2010
- Model
- MD50B2
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
353-60211-0 Roller Bearing |
353-60211-0 |
from US $18 |
||
|
3
|
3
3B7-60205-0 Water Strainer Set |
3B7-60205-0 |
from US $10.97 |
||
|
4
|
4
921503-0438 Screw |
921503-0438 |
from US $0.85 |
||
|
5
|
5
930403-0400 Nylon Nut |
930403-0400 |
from US $1.44 |
||
|
6
|
6
3F3-64020-0 Bevel Gear B |
3F3-64020-0 |
from US $65.38 |
||
|
7
|
7
353-64027-0 Nut |
353-64027-0 |
from US $7.20 |
||
|
8
|
8
353-64081-0 Shim |
353-64081-0 |
from US $4.75 |
||
| replacement | |||||
|
8
|
8
353-64023-0 Shim |
353-64023-0 |
US $7.45 |
||
|
8
|
8
353-64082-0 Shim |
353-64082-0 |
from US $4.75 |
||
| replacement | |||||
|
8
|
8
353-64023-0 Shim |
353-64023-0 |
US $7.45 |
||
|
8
|
8
353-64083-0 Shim |
353-64083-0 |
from US $4.75 |
||
| replacement | |||||
|
8
|
8
353-64023-0 Shim |
353-64023-0 |
US $7.45 |
||
|
10
|
10
3S7-60213-0 Ball Bearing |
3S7-60213-0 |
US $38.59 |
||
|
11
|
11
353-64327-0 Drive Shaft Spring |
353-64327-0 |
from US $2.30 |
||
|
12
|
12
3A3-64328-0 Drive Shaft Spring Guide |
3A3-64328-0 |
from US $5.77 |
||
|
13
|
13
3B7-65021-2 Water Pump Impeller |
3B7-65021-2 |
from US $49.18 |
||
|
14
|
14
3B7-65022-0 Key |
3B7-65022-0 |
from US $12.43 |
||
|
15
|
15
3B7-65016-0 Pump Case Sub-Assy (Upper) |
3B7-65016-0 |
US $57.24 |
||
| replacement | |||||
|
15
|
15
3B7-65006-0 Pump Case Sub-Assy (Upper) |
3B7-65006-0 |
from US $54.72 |
||
|
16
|
16
3B7-65238-0 Pump Case LinerCHROMIUM PLATED |
3B7-65238-0 |
from US $35.18 |
||
|
17
|
17
3B7-65014-0 Water Pipe Seal (Lower) |
3B7-65014-0 |
from US $3.25 |
||
|
18
|
18
3F3-65017-1 Pump Case (Lower) |
3F3-65017-1 |
from US $61.82 |
||
|
19
|
19
3F3-64084-0 Shim |
3F3-64084-0 |
from US $1.15 |
||
|
20
|
20
3F3-60223-0 Oil Seal |
3F3-60223-0 |
from US $2.25 |
||
|
21
|
21
3F3-65239-1 Water Pump Guide PlateCHROMIUM PLATED |
3F3-65239-1 |
from US $44.16 |
||
| replacement | |||||
|
21
|
21
3F3-65239-2 Water Pump Guide PlateCHROMIUM PLATED |
3F3-65239-2 |
from US $39.17 |
||
|
22
|
22
3B7-65029-0 Guide Plate Gasket |
3B7-65029-0 |
from US $2.89 |
||
|
23
|
23
3B7-65018-0 Pump Case Gasket |
3B7-65018-0 |
from US $3.24 |
||
|
24
|
24
9161E3-0880 Bolt |
9161E3-0880 |
from US $3.31 |
||
|
25
|
25
940103-0800 Washer |
940103-0800 |
from US $0.99 |
||
|
26
|
26
3F3-60204-0 Sub-Water Inlet Strainer |
3F3-60204-0 |
from US $5.90 |
||
|
27
|
27
921503-0608 Screw |
921503-0608 |
from US $0.86 |
||
|
30
|
30
951403-3514 Spring Pin |
951403-3514 |
from US $0.72 |
||
|
31
|
31
951403-3510 Spring Pin |
951403-3510 |
from US $0.72 |
||
|
32
|
32
3B7-66031-1 Cam Rod Bushing |
3B7-66031-1 |
from US $16.42 |
||
|
33
|
33
345-66021-0 O-Ring |
345-66021-0 |
from US $1.27 |
||
|
34
|
34
3B7-66023-0 O-Ring |
3B7-66023-0 |
from US $2.55 |
||
|
36
|
36
3T1-60001-0 Bolt |
3T1-60001-0 |
from US $1.44 |
||
| replacement | |||||
|
36
|
36
3T1-60001-1 Bolt |
3T1-60001-1 |
from US $4.32 |
||
|
37
|
37
9402E3-0800 Washer |
9402E3-0800 |
from US $1.35 |
||
| replacement | |||||
|
37
|
37
940203-0800 Washer |
940203-0800 |
from US $0.70 |
||
|
38
|
38
3B7-60001-4 Bolt |
3B7-60001-4 |
US $9.43 |
||
| replacement | |||||
|
38
|
38
3B7-60001-5 Bolt |
3B7-60001-5 |
from US $8.21 |
||
|
39
|
39
9402E3-1000 Washer |
9402E3-1000 |
from US $1.01 |
||
|
42
|
42
345-65205-0 Collar |
345-65205-0 |
from US $2.16 |
||
