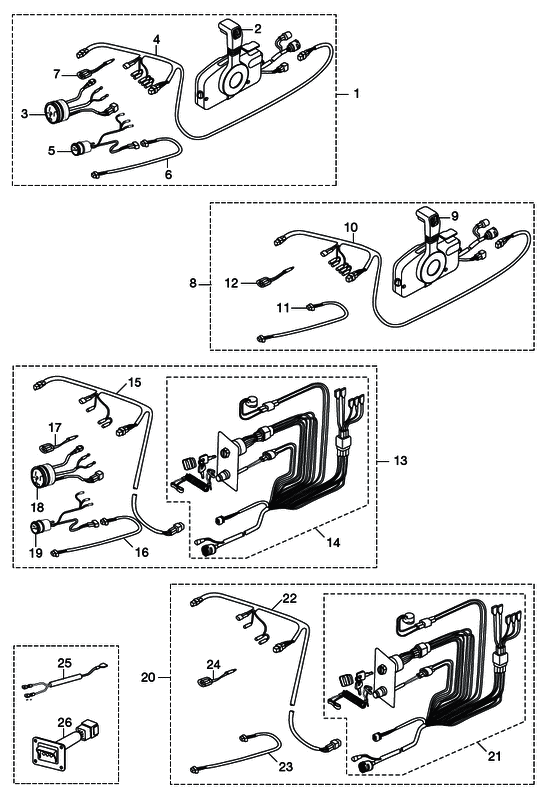

Rigging kit Diagram Tohatsu MD50B2
- Year
- 2010
- Model
- MD50B2
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y7Q84550-5 Pre-Rigging KitWITH METER |
3Y7Q84550-5 |
from US $1,128.09 |
||
| replacements | |||||
|
1
|
1
3Y7Q84550-3 Pre-Rigging KitWITH METER |
3Y7Q84550-3 |
from US $1,128.09 |
||
|
1
|
1
3Y7Q84550-6 Pre-Rigging KitWITH METER |
3Y7Q84550-6 |
from US $1,128.09 |
||
|
2
|
2
3GFQ84500-0 Remote Control Head Assy |
3GFQ84500-0 |
from US $799.18 |
||
|
3
|
3
3GL-72647-0 Tachometer Kit |
3GL-72647-0 |
from US $164.27 |
||
|
3
|
3
3GF-72647-0 Tachometer Kit |
3GF-72647-0 |
from US $164.27 |
||
| replacement | |||||
|
3
|
3
3GF-72647-1 Tachometer |
3GF-72647-1 |
from US $164.27 |
||
|
4
|
4
3T5-72537-0 Lead Wire Meter |
3T5-72537-0 |
from US $227.89 |
||
| replacement | |||||
|
4
|
4
3T5-72537-1 Meter Lead Wire |
3T5-72537-1 |
from US $227.89 |
||
|
5
|
5
3GF-72571-0 Trim Meter Kit2-WIRE |
3GF-72571-0 |
from US $138.48 |
||
| replacement | |||||
|
5
|
5
3ZC-72523-0 TRIM METER KIT BLACK2-WIRE |
3ZC-72523-0 |
US $138.48 |
||
|
5
|
5
3GL-72571-0 Trim Meter Kit2-WIRE |
3GL-72571-0 |
from US $63.96 |
||
|
5
|
5
3T1-72571-0 Trim Meter Assy2-WIRE |
3T1-72571-0 |
US $257.76 |
||
|
6
|
6
3T1-72573-0 Extension Cord (Trim Sensor) |
3T1-72573-0 |
from US $66.10 |
||
|
7
|
7
353-72548-0 Assist Cord (Blk) |
353-72548-0 |
from US $3.17 |
||
|
8
|
8
3GLQ84550-0 Pre-Rigging KitWITHOUT METER |
3GLQ84550-0 |
from US $955.50 |
||
| replacement | |||||
|
8
|
8
3GLQ84550-1 Pre-Rigging KitWITHOUT METER |
3GLQ84550-1 |
from US $955.50 |
||
|
9
|
9
3GFQ84500-0 Remote Control Head Assy |
3GFQ84500-0 |
from US $799.18 |
||
|
10
|
10
3T5-72537-0 Lead Wire Meter |
3T5-72537-0 |
from US $227.89 |
||
| replacement | |||||
|
10
|
10
3T5-72537-1 Meter Lead Wire |
3T5-72537-1 |
from US $227.89 |
||
|
11
|
11
3T1-72573-0 Extension Cord (Trim Sensor) |
3T1-72573-0 |
from US $66.10 |
||
|
12
|
12
353-72548-0 Assist Cord (Blk) |
353-72548-0 |
from US $3.17 |
||
|
13
|
13
3Z5-84550-5 Pre-Rigging KitWITH METER |
3Z5-84550-5 |
from US $910.53 |
||
| replacement | |||||
|
13
|
13
3Z5-84550-4 Pre-Rigging KitWITH METER |
3Z5-84550-4 |
from US $910.53 |
||
|
14
|
14
3Y9-84560-1 Rigging Cord Kit |
3Y9-84560-1 |
from US $421.71 |
||
| replacement | |||||
|
14
|
14
3GF-84560-0 Rigging Cord Kit |
3GF-84560-0 |
from US $421.71 |
||
|
15
|
15
3T5-72537-0 Lead Wire Meter |
3T5-72537-0 |
from US $227.89 |
||
| replacement | |||||
|
15
|
15
3T5-72537-1 Meter Lead Wire |
3T5-72537-1 |
from US $227.89 |
||
|
16
|
16
3T1-72573-0 Extension Cord (Trim Sensor) |
3T1-72573-0 |
from US $66.10 |
||
|
17
|
17
353-72548-0 Assist Cord (Blk) |
353-72548-0 |
from US $3.17 |
||
|
18
|
18
3Z5-72640-1 Tachometer W/oil Lamp |
3Z5-72640-1 |
US $345.60 |
||
|
18
|
18
3GF-72647-0 Tachometer Kit |
3GF-72647-0 |
from US $164.27 |
||
| replacement | |||||
|
18
|
18
3GF-72647-1 Tachometer |
3GF-72647-1 |
from US $164.27 |
||
|
19
|
19
3GF-72571-0 Trim Meter Kit |
3GF-72571-0 |
from US $138.48 |
||
| replacement | |||||
|
19
|
19
3ZC-72523-0 TRIM METER KIT BLACK |
3ZC-72523-0 |
US $138.48 |
||
|
19
|
19
3GL-72571-0 Trim Meter Kit |
3GL-72571-0 |
from US $63.96 |
||
|
19
|
19
3T1-72571-0 Trim Meter Assy |
3T1-72571-0 |
US $257.76 |
||
|
20
|
20
3GM-84550-0 Pre-Rigging KitWITHOUT METER |
3GM-84550-0 |
from US $810.93 |
||
| replacement | |||||
|
20
|
20
3GM-84550-1 Pre-Rigging KitWITHOUT METER |
3GM-84550-1 |
from US $810.93 |
||
|
21
|
21
3Y9-84560-1 Rigging Cord Kit |
3Y9-84560-1 |
from US $421.71 |
||
| replacement | |||||
|
21
|
21
3GF-84560-0 Rigging Cord Kit |
3GF-84560-0 |
from US $421.71 |
||
|
22
|
22
3T5-72537-0 Lead Wire Meter |
3T5-72537-0 |
from US $227.89 |
||
| replacement | |||||
|
22
|
22
3T5-72537-1 Meter Lead Wire |
3T5-72537-1 |
from US $227.89 |
||
|
23
|
23
3T1-72573-0 Extension Cord (Trim Sensor) |
3T1-72573-0 |
from US $66.10 |
||
|
24
|
24
353-72548-0 Assist Cord (Blk) |
353-72548-0 |
from US $3.17 |
||
|
25
|
25
3Y9-76049-0 Lead WireFOR TWIN ENGINES (PTT) |
3Y9-76049-0 |
from US $32.69 |
||
|
26
|
26
3Y9-72651-0
Lamp panel assy
|
3Y9-72651-0 |
— | ||
