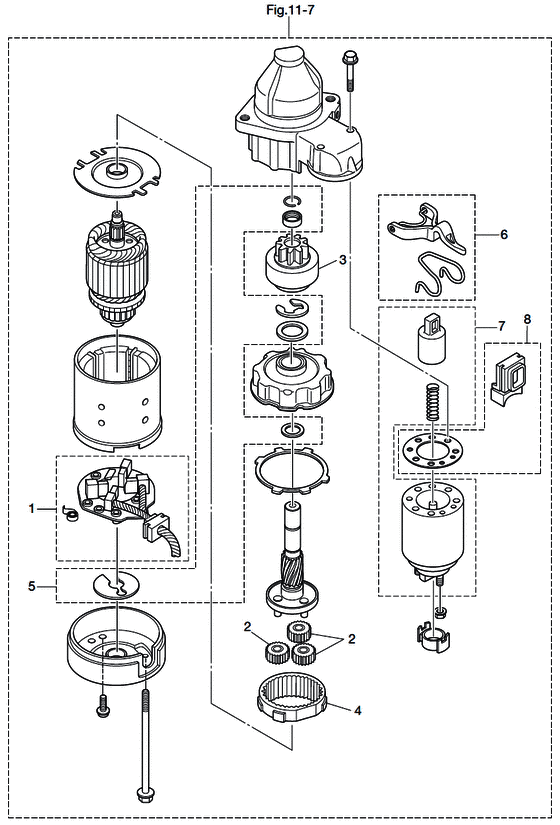

Electric parts (starter motor) (2) Diagram Tohatsu MD75C2
- Year
- 2012
- Model
- MD75C2
- Year
- 2012
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FW-76014-0 Brush Holder |
3FW-76014-0 |
US $72.27 |
||
| replacement | |||||
|
1
|
1
3KY-76014-0 Brush Holder |
3KY-76014-0 |
US $72.27 |
||
|
2
|
2
3FW-76314-0 Internal Gear |
3FW-76314-0 |
from US $9.36 |
||
|
3
|
3
3FW-76015-0 Pinion Assy |
3FW-76015-0 |
from US $240.26 |
||
|
4
|
4
3FW-76317-0 Planet Gear |
3FW-76317-0 |
from US $11.09 |
||
|
5
|
5
3FW-76318-0 Washer Set |
3FW-76318-0 |
US $9.07 |
||
|
6
|
6
3FW-76320-0 Shift Lever Set |
3FW-76320-0 |
from US $8.06 |
||
|
7
|
7
3FW-76321-0 Magnetic Switch |
3FW-76321-0 |
from US $73.87 |
||
|
8
|
8
3FW-76322-0 Dust Cover Set |
3FW-76322-0 |
from US $14.11 |
||
