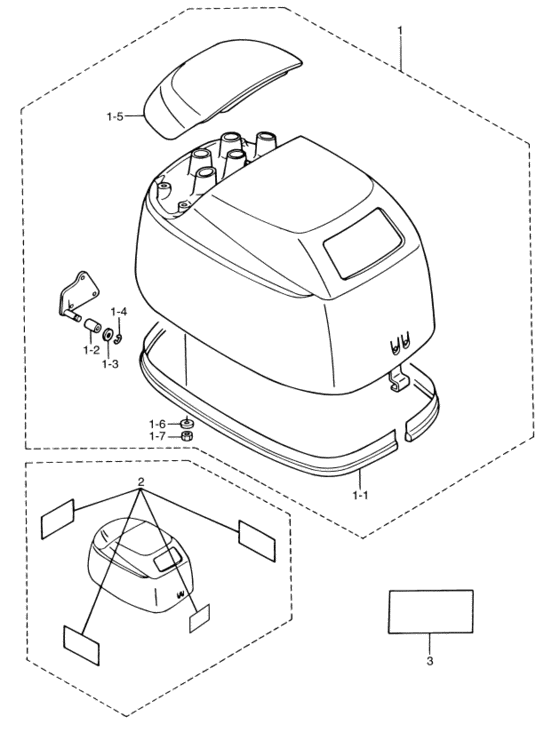

Top cowl Diagram Tohatsu MFS25B
- Year
- 2005
- Model
- MFS25B
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3ACQ67630-0 Top Cowl (F25B/30B)TOHATSU MOTOR COVER (UPPER) |
3ACQ67630-0 |
from US $585.59 |
||
| replacement | |||||
|
1
|
1
3ACQ67645-5 Top Cowl Assy (Service)TOHATSU MOTOR COVER (UPPER) |
3ACQ67645-5 |
from US $639.36 |
||
|
1
|
1
3AEN67630-0 Top Cowl Nfs25B/30BNISSAN MOTOR COVER (UPPER) |
3AEN67630-0 |
from US $585.59 |
||
| replacement | |||||
|
1
|
1
3AEQ67645-3
Top Cowl Assy (Service)
NISSAN MOTOR COVER (UPPER) |
3AEQ67645-3 |
— | ||
|
1-1
|
1-1
3S9-67501-0
Seal Rubber Motor Cover
|
3S9-67501-0 |
— | ||
| replacement | |||||
|
1-1
|
1-1
3AD-67501-0 Top Cowl Seal |
3AD-67501-0 |
from US $49.55 |
||
|
1-2
|
1-2
3R0-67517-0 Roller |
3R0-67517-0 |
from US $5.50 |
||
|
1-3
|
1-3
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
1-4
|
1-4
945303-0500 E-Ring |
945303-0500 |
from US $1.01 |
||
|
1-5
|
1-5
3R0Q67521-1 Tilt Handle |
3R0Q67521-1 |
from US $62.60 |
||
| replacement | |||||
|
1-5
|
1-5
3R0Q67521-2 Tilt Handle |
3R0Q67521-2 |
from US $62.60 |
||
|
1-6
|
1-6
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
1-7
|
1-7
930113-0600
Nut
|
930113-0600 |
— | ||
| replacement | |||||
|
1-7
|
1-7
930103-0600 Nut |
930103-0600 |
from US $1.01 |
||
|
2
|
2
3ADQ87801-0 Decal Set (Mfs25B)TOHATSU |
3ADQ87801-0 |
from US $67.93 |
||
| replacement | |||||
|
2
|
2
3AD-87801-3 Decal SetTOHATSU |
3AD-87801-3 |
from US $53.86 |
||
|
2
|
2
3AFN87801-0 Decal Set Nfs25BNISSAN |
3AFN87801-0 |
from US $63.65 |
||
| replacement | |||||
|
2
|
2
3AF-87801-0 Decal SetNISSAN |
3AF-87801-0 |
from US $53.86 |
||
|
3
|
3
3R0-72180-0 Caution Decal (A) |
3R0-72180-0 |
from US $3.74 |
||
