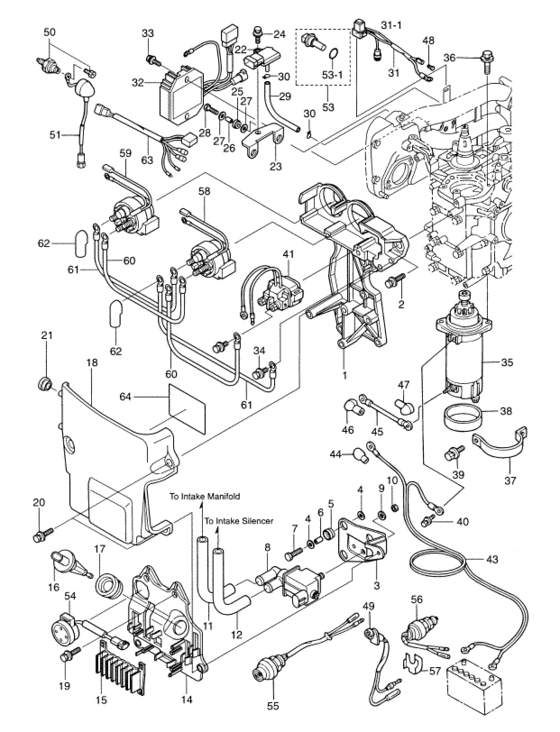

Electric parts Diagram Tohatsu MFS30B
- Year
- 2005
- Model
- MFS30B
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AC-06901-0 Bracket |
3AC-06901-0 |
from US $50.69 |
||
|
2
|
2
910103-5625 Bolt |
910103-5625 |
from US $1.30 |
||
| replacement | |||||
|
2
|
2
9101E3-5625 Bolt |
9101E3-5625 |
from US $1.73 |
||
|
3
|
3
3AC-02501-0 Plate |
3AC-02501-0 |
from US $16.42 |
||
|
4
|
4
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
5
|
5
3AC-06920-0 Rubber Mount |
3AC-06920-0 |
from US $1.73 |
||
|
6
|
6
3A0-76079-0
Collar
|
3A0-76079-0 |
— | ||
| replacement | |||||
|
6
|
6
3H6-76079-1 Collar |
3H6-76079-1 |
from US $1.15 |
||
|
7
|
7
910103-0620 Bolt |
910103-0620 |
from US $1.01 |
||
|
8
|
8
3AC-10211-0 Isc Valve |
3AC-10211-0 |
from US $117.94 |
||
|
9
|
9
940103-0600 Washer |
940103-0600 |
US $0.84 |
||
|
10
|
10
930103-0600 Nut |
930103-0600 |
from US $1.01 |
||
|
11
|
11
3AC-02203-0 Fuel HoseISC VALVE — INTAKE MANIFOLD |
3AC-02203-0 |
from US $4.10 |
||
|
12
|
12
3AD-02203-0 Fuel HoseINTAKE SILENCER — ISC VALVE |
3AD-02203-0 |
from US $11.52 |
||
|
14
|
14
3AC-62004-0 Cord Holder |
3AC-62004-0 |
from US $29.38 |
||
|
15
|
15
3AC-06135-0 Holder |
3AC-06135-0 |
from US $5.99 |
||
|
16
|
16
3AC-10215-0 Mat Sensor |
3AC-10215-0 |
from US $26.21 |
||
|
17
|
17
3AC-04319-0 Grommet |
3AC-04319-0 |
from US $4.10 |
||
|
18
|
18
3AC-06919-0 Cover Assy |
3AC-06919-0 |
from US $34.27 |
||
|
19
|
19
910103-5625 Bolt |
910103-5625 |
from US $1.30 |
||
| replacement | |||||
|
19
|
19
9101E3-5625 Bolt |
9101E3-5625 |
from US $1.73 |
||
|
20
|
20
910113-5620 Bolt |
910113-5620 |
US $1.92 |
||
| replacement | |||||
|
20
|
20
9101E3-5620 Bolt |
9101E3-5620 |
from US $1.76 |
||
|
21
|
21
345-67117-0 Grommet |
345-67117-0 |
US $1.68 |
||
|
22
|
22
3AC-10214-0 Map Sensor |
3AC-10214-0 |
from US $130.61 |
||
|
23
|
23
3AC-07233-0 Plate |
3AC-07233-0 |
from US $6.62 |
||
|
24
|
24
910113-5616 Bolt |
910113-5616 |
US $1.58 |
||
| replacement | |||||
|
24
|
24
9101E3-5616 Bolt |
9101E3-5616 |
from US $1.58 |
||
|
25
|
25
3AC-06920-0 Rubber Mount |
3AC-06920-0 |
from US $1.73 |
||
|
26
|
26
3A0-76079-0
Collar
|
3A0-76079-0 |
— | ||
| replacement | |||||
|
26
|
26
3H6-76079-1 Collar |
3H6-76079-1 |
from US $1.15 |
||
|
27
|
27
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
28
|
28
910113-0620 Bolt |
910113-0620 |
from US $1.15 |
||
| replacements | |||||
|
28
|
28
910103-0620 Bolt |
910103-0620 |
from US $1.01 |
||
|
28
|
28
9101E3-0620 Bolt |
9101E3-0620 |
from US $1.01 |
||
|
29
|
29
98AL-4-1000
Rubber Pipe
MAP SENSOR — I/MANIFOLD |
98AL-4-1000 |
— | ||
| replacement | |||||
|
29
|
29
98AL-401000 HoseMAP SENSOR — I/MANIFOLD |
98AL-401000 |
from US $8.64 |
||
|
30
|
30
338-01133-0 Clip |
338-01133-0 |
from US $1.15 |
||
|
31
|
31
3AC-76066-0 Fuse Wire AssyFOR EP & EF |
3AC-76066-0 |
from US $60.61 |
||
|
31-1
|
31-1
3T5-76247-0 FuseFOR EP & EF |
3T5-76247-0 |
from US $2.02 |
||
|
32
|
32
3AC-76065-0 Rectifier CompleteFOR EP & EF |
3AC-76065-0 |
from US $154.79 |
||
| replacement | |||||
|
32
|
32
3AC-76065-2 Rectifier CompleteFOR EP & EF |
3AC-76065-2 |
from US $152.78 |
||
|
33
|
33
910103-5625 BoltFOR EP & EF |
910103-5625 |
from US $1.30 |
||
| replacement | |||||
|
33
|
33
9101E3-5625 BoltFOR EP & EF |
9101E3-5625 |
from US $1.73 |
||
|
34
|
34
910103-5612 BoltFOR EP & EF |
910103-5612 |
from US $1.12 |
||
| replacement | |||||
|
34
|
34
9101E3-5612 BoltFOR EP & EF |
9101E3-5612 |
from US $1.52 |
||
|
35
|
35
3C8-76010-1 Starter Motor AssyFOR EP & EF |
3C8-76010-1 |
from US $498.38 |
||
|
36
|
36
910103-5830 BoltFOR EP & EF |
910103-5830 |
from US $2.02 |
||
|
37
|
37
3R0-76009-0 Starter Motor BandFOR EP & EF |
3R0-76009-0 |
from US $6.03 |
||
|
38
|
38
3C8-76007-0 DamperFOR EP & EF |
3C8-76007-0 |
from US $3.27 |
||
|
39
|
39
910113-5820 BoltFOR EP & EF |
910113-5820 |
US $2.43 |
||
| replacements | |||||
|
39
|
39
910103-5825 BoltFOR EP & EF |
910103-5825 |
from US $2.36 |
||
|
39
|
39
9101E3-5820 BoltFOR EP & EF |
9101E3-5820 |
from US $2.23 |
||
|
39
|
39
910103-5820 BoltFOR EP & EF |
910103-5820 |
from US $2.02 |
||
|
40
|
40
910103-5612 BoltFOR EP & EF |
910103-5612 |
from US $1.12 |
||
| replacement | |||||
|
40
|
40
9101E3-5612 BoltFOR EP & EF |
9101E3-5612 |
from US $1.52 |
||
|
41
|
41
3H8-76040-0 Starter SolenoidWITH BOLT (910103-5610 X 2) FOR EP & EF |
3H8-76040-0 |
from US $66.96 |
||
|
43
|
43
3V1-76120-1 Battery CordL=2500 FOR EP & EF |
3V1-76120-1 |
from US $69.64 |
||
| replacement | |||||
|
43
|
43
3V1-76120-2 New Genuine PartL=2500 FOR EP & EF |
3V1-76120-2 |
from US $68.54 |
||
|
44
|
44
3AA-76145-0 Terminal CapFOR EP & EF |
3AA-76145-0 |
from US $2.48 |
||
|
45
|
45
3R3-76141-0 Starter CableL=270 FOR EP & EF |
3R3-76141-0 |
from US $24.48 |
||
|
46
|
46
3Y1-76145-0 Terminal CapSTARTER SOLENOID (RED) FOR EP & EF |
3Y1-76145-0 |
from US $2.48 |
||
|
47
|
47
3Y0-76145-0 Terminal CapSTARTER MOTOR (RED) FOR EP & EF |
3Y0-76145-0 |
from US $2.48 |
||
|
48
|
48
3A3-76037-0 Cable Terminal PlugFOR EP & EF |
3A3-76037-0 |
from US $1.15 |
||
| replacement | |||||
|
48
|
48
3T5-76037-0 Cable Terminal PlugFOR EP & EF |
3T5-76037-0 |
from US $1.66 |
||
|
49
|
49
3R3-71040-0 Pilot Lamp Assy |
3R3-71040-0 |
from US $20.13 |
||
|
50
|
50
3H6-07611-0 Oil Pressure Switch |
3H6-07611-0 |
US $19.86 |
||
| replacement | |||||
|
50
|
50
3H6-07611-1 Oil Pressure Switch |
3H6-07611-1 |
US $23.86 |
||
|
51
|
51
3AC-07613-0 Oil Pressure Switch Lead WireL=170 WITH GROMMET |
3AC-07613-0 |
from US $14.11 |
||
|
53
|
53
3Y9-72514-0 Water Temperature Sensor |
3Y9-72514-0 |
from US $24.48 |
||
|
53-1
|
53-1
3G9-66136-0 O-Ring |
3G9-66136-0 |
from US $1.28 |
||
|
54
|
54
3AC-76171-0 Overheat BuzzerFOR MF & EF |
3AC-76171-0 |
from US $40.90 |
||
|
55
|
55
3AA-76026-0 Main Switch AssyOR 3B2-76026-1 FOR EF |
3AA-76026-0 |
US $15.41 |
||
|
56
|
56
361-76080-0
Neutral Switch
FOR EF |
361-76080-0 |
— | ||
| replacement | |||||
|
56
|
56
3NV-76080-0 Neutral SwitchFOR EF |
3NV-76080-0 |
US $22.32 |
||
|
57
|
57
398-76083-0 Neutral Switch ActuatorFOR EF |
398-76083-0 |
from US $6.19 |
||
|
58
|
58
3AC-72580-0 Ptt Solenoid Switch (A)UP FOR PTT TYPE |
3AC-72580-0 |
from US $80.21 |
||
|
59
|
59
3AC-72581-0 Ptt Solenoid Switch (B)DOWN FOR PTT TYPE |
3AC-72581-0 |
from US $80.21 |
||
|
60
|
60
3C7-72583-0 Solenoid Switch Cord (B)L=150 RED (+) FOR PTT TYPE |
3C7-72583-0 |
from US $3.74 |
||
|
61
|
61
3C8-72583-1 Solenoid Switch Cord (B)L=130 BLACK (-) FOR PTT TYPE |
3C8-72583-1 |
from US $4.03 |
||
| replacement | |||||
|
61
|
61
3C8-72583-0 Cord B Solenoid SwitchL=130 BLACK (-) FOR PTT TYPE |
3C8-72583-0 |
from US $3.89 |
||
|
62
|
62
3Y1-76145-0 Terminal CapFOR PTT TYPE |
3Y1-76145-0 |
from US $2.48 |
||
|
63
|
63
3AC-72569-0 Extension Cord (Ptt)FOR PTT TYPE |
3AC-72569-0 |
from US $92.02 |
||
|
64
|
64
3AC-72028-0 Wiring Diagram Decal |
3AC-72028-0 |
from US $3.98 |
||
