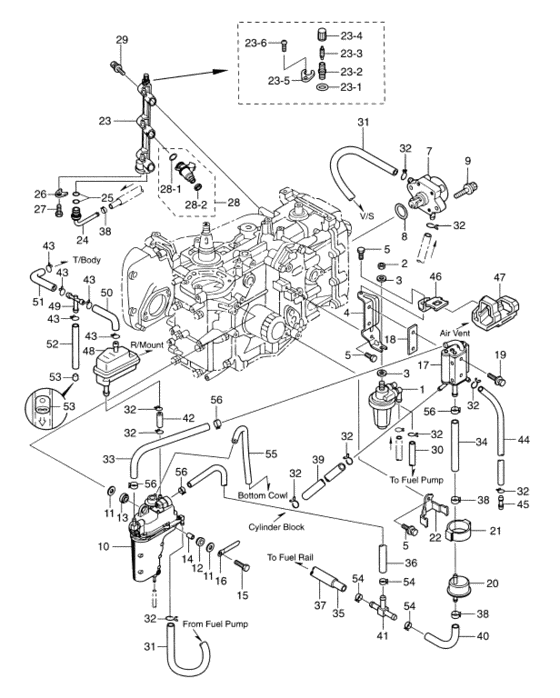

Fuel pump fuel rail & vapor separator Diagram Tohatsu MFS30B
- Year
- 2005
- Model
- MFS30B
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AC-02230-0 Fuel FilterSEE DETAIL |
3AC-02230-0 |
US $31.28 |
||
| replacement | |||||
|
1
|
1
3AD-02230-0 Fuel Filter AssySEE DETAIL |
3AD-02230-0 |
from US $22.94 |
||
|
2
|
2
930113-0800 Nut |
930113-0800 |
from US $0.55 |
||
| replacement | |||||
|
2
|
2
930103-0800 Nut |
930103-0800 |
from US $1.83 |
||
|
3
|
3
940113-0800 Washer |
940113-0800 |
from US $0.55 |
||
| replacements | |||||
|
3
|
3
940103-0800 Washer |
940103-0800 |
from US $0.99 |
||
|
3
|
3
9401E3-0800 Washer |
9401E3-0800 |
from US $0.72 |
||
|
4
|
4
3AC-02239-0 Plate |
3AC-02239-0 |
from US $14.26 |
||
|
5
|
5
910113-5616 Bolt |
910113-5616 |
US $1.58 |
||
| replacement | |||||
|
5
|
5
9101E3-5616 Bolt |
9101E3-5616 |
from US $1.58 |
||
|
7
|
7
3H8-04000-1 Fuel Pump Assy |
3H8-04000-1 |
US $92.89 |
||
|
9
|
9
910113-5625 Bolt |
910113-5625 |
US $1.83 |
||
| replacement | |||||
|
9
|
9
9101E3-5625 Bolt |
9101E3-5625 |
from US $1.73 |
||
|
10
|
10
3AC-10150-0 Vapor Separator AssySEE DETAIL |
3AC-10150-0 |
from US $844.56 |
||
|
11
|
11
346-67115-0 Washer |
346-67115-0 |
from US $1.44 |
||
|
12
|
12
346-67113-0 Mount |
346-67113-0 |
from US $1.30 |
||
|
13
|
13
3B7-06920-0 Rubber Mount |
3B7-06920-0 |
from US $0.99 |
||
|
14
|
14
346-67114-0 Spacer 6.2-9-15.7 |
346-67114-0 |
from US $1.29 |
||
| replacement | |||||
|
14
|
14
346-67114-1 Spacer |
346-67114-1 |
from US $1.15 |
||
|
15
|
15
910113-0630 Bolt |
910113-0630 |
US $1.64 |
||
| replacement | |||||
|
15
|
15
9101E3-0630 Bolt |
9101E3-0630 |
from US $1.44 |
||
|
16
|
16
3T4-06972-0 Clamp 6.5-87P |
3T4-06972-0 |
from US $1.72 |
||
| replacement | |||||
|
16
|
16
3T4-06972-1 Clamp |
3T4-06972-1 |
from US $1.72 |
||
|
17
|
17
3AC-10175-0 Fuel Cooler AssySEE DETAIL |
3AC-10175-0 |
from US $391.68 |
||
|
18
|
18
3AC-10019-0 Gasket |
3AC-10019-0 |
from US $1.73 |
||
|
19
|
19
910113-5635
Bolt
|
910113-5635 |
— | ||
| replacement | |||||
|
19
|
19
9101E3-5635 Bolt |
9101E3-5635 |
from US $2.16 |
||
|
20
|
20
3ACB10143-0 High Pressure Fuel Filter |
3ACB10143-0 |
from US $64.87 |
||
|
21
|
21
3AC-10145-0 Fuel Filter Rubber Mount |
3AC-10145-0 |
from US $5.77 |
||
|
22
|
22
3AC-10144-0 Fuel Filter Band |
3AC-10144-0 |
from US $8.21 |
||
|
23
|
23
3AC-10201-0 Fuel rail assy |
3AC-10201-0 |
US $548.22 |
||
| replacement | |||||
|
23
|
23
3AC-10200-0 Fuel Rail Assy |
3AC-10200-0 |
from US $548.22 |
||
|
23-1
|
23-1
3AC-10162-0 O-Ring |
3AC-10162-0 |
from US $3.46 |
||
|
23-2
|
23-2
3AC-77367-0 Joint |
3AC-77367-0 |
from US $14.26 |
||
|
23-3
|
23-3
3AC-10098-0 Valve Assy (Pressure Check) |
3AC-10098-0 |
US $8.93 |
||
|
23-4
|
23-4
3AC-10099-0 Cap |
3AC-10099-0 |
from US $5.77 |
||
|
23-5
|
23-5
3AC-10169-0 Holding Plate |
3AC-10169-0 |
from US $2.96 |
||
|
23-6
|
23-6
921503-0410 Screw |
921503-0410 |
from US $0.77 |
||
|
24
|
24
3AC-10161-0 Nipple |
3AC-10161-0 |
from US $27.79 |
||
|
25
|
25
3T5-10162-0 O-Ring |
3T5-10162-0 |
from US $1.72 |
||
|
26
|
26
3T5-10169-0 Holding Plate |
3T5-10169-0 |
from US $1.35 |
||
|
27
|
27
910113-5616 Bolt |
910113-5616 |
US $1.58 |
||
| replacement | |||||
|
27
|
27
9101E3-5616 Bolt |
9101E3-5616 |
from US $1.58 |
||
|
28
|
28
3AC-10300-0 Fuel Injector |
3AC-10300-0 |
from US $159.55 |
||
| replacement | |||||
|
28
|
28
3AC-10300-1 Fuel Injector Assy |
3AC-10300-1 |
from US $138.69 |
||
|
28-1
|
28-1
3AC-10304-0 O-Ring |
3AC-10304-0 |
from US $9.10 |
||
| replacement | |||||
|
28-1
|
28-1
3AC-10304-1 O-Ring |
3AC-10304-1 |
from US $9.10 |
||
|
28-2
|
28-2
3AC-10303-0 O-Ring |
3AC-10303-0 |
from US $9.10 |
||
| replacement | |||||
|
28-2
|
28-2
3AC-10303-1 O-Ring |
3AC-10303-1 |
from US $9.10 |
||
|
29
|
29
910113-5625 Bolt |
910113-5625 |
US $1.83 |
||
| replacement | |||||
|
29
|
29
9101E3-5625 Bolt |
9101E3-5625 |
from US $1.73 |
||
|
30
|
30
98AB-5-1000 Rubber HoseF/FILTER - F/PUMP |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
30
|
30
98AB-501000 Rubber Hose (1 M)F/FILTER - F/PUMP |
98AB-501000 |
from US $8.44 |
||
|
31
|
31
98AB-5-1000 Rubber HoseF/PUMP - VAPOR SEPARATOR |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
31
|
31
98AB-501000 Rubber Hose (1 M)F/PUMP - VAPOR SEPARATOR |
98AB-501000 |
from US $8.44 |
||
|
32
|
32
338-02215-0 Clip |
338-02215-0 |
from US $1.15 |
||
|
33
|
33
3AD-02204-0 Fuel HoseVAPOR SEPARATOR - F/COOLER |
3AD-02204-0 |
from US $19.58 |
||
| replacement | |||||
|
33
|
33
3AD-02209-0 Low Permeation HoseVAPOR SEPARATOR - F/COOLER |
3AD-02209-0 |
from US $19.58 |
||
|
34
|
34
3AC-02204-0 Fuel HoseF/COOLER - H/P/F/FILTER |
3AC-02204-0 |
from US $14.11 |
||
| replacement | |||||
|
34
|
34
3AC-02209-0 Low Permeation HoseF/COOLER - H/P/F/FILTER |
3AC-02209-0 |
from US $14.11 |
||
|
35
|
35
3AC-02212-0 Fuel HoseT NIPPLE - FUEL RAIL |
3AC-02212-0 |
from US $30.33 |
||
| replacement | |||||
|
35
|
35
3AL-02210-0 Low Permeation HoseT NIPPLE - FUEL RAIL |
3AL-02210-0 |
from US $31.10 |
||
|
36
|
36
3AD-02211-0 Fuel HoseVAPOR SEPARATOR - T NIPPLE |
3AD-02211-0 |
from US $31.90 |
||
| replacement | |||||
|
36
|
36
3AD-02210-0 Low Permeation HoseVAPOR SEPARATOR - T NIPPLE |
3AD-02210-0 |
from US $32.69 |
||
|
37
|
37
3AD-06157-0 ProtectorL=240 |
3AD-06157-0 |
from US $4.61 |
||
|
38
|
38
3AC-09056-0 Clip |
3AC-09056-0 |
from US $1.30 |
||
|
39
|
39
98AR-5-0600 HoseCYLINDER - F/COOLER |
98AR-5-0600 |
from US $5.80 |
||
|
40
|
40
3AC-02211-0 Fuel HoseH/P/F/FILTER - T NIPPLE |
3AC-02211-0 |
from US $9.74 |
||
| replacement | |||||
|
40
|
40
3AC-02210-0 Low Permeation HoseH/P/F/FILTER - T NIPPLE |
3AC-02210-0 |
from US $10.22 |
||
|
41
|
41
3AC-70013-0 Pipe Joint |
3AC-70013-0 |
from US $2.96 |
||
|
42
|
42
98AB-5-1000 Rubber HoseAIR VENT - VAPOR SEPARATOR |
98AB-5-1000 |
US $15.95 |
||
| replacement | |||||
|
42
|
42
98AB-501000 Rubber Hose (1 M)AIR VENT - VAPOR SEPARATOR |
98AB-501000 |
from US $8.44 |
||
|
43
|
43
338-01133-0 Clip |
338-01133-0 |
from US $1.15 |
||
|
44
|
44
98AR-5-0600 HoseFUEL COOLER - WATER NIPPLE |
98AR-5-0600 |
from US $5.80 |
||
|
45
|
45
353-01138-0 Water NippleBOTTOM COWL |
353-01138-0 |
from US $1.73 |
||
| replacement | |||||
|
45
|
45
3BA-01138-0 NippleBOTTOM COWL |
3BA-01138-0 |
from US $2.16 |
||
|
46
|
46
3AC-76174-0 Stay |
3AC-76174-0 |
from US $3.69 |
||
|
47
|
47
3AC-06302-0 Rubber Mount |
3AC-06302-0 |
from US $18 |
||
|
48
|
48
3AC-10320-0 Air Vent Assy |
3AC-10320-0 |
from US $0.01 |
||
|
49
|
49
3AC-01176-0
T-nipple - not available
|
3AC-01176-0 |
— | ||
|
50
|
50
98AL-4-1000
Rubber Pipe
T NIPPLE - AIR VENT |
98AL-4-1000 |
— | ||
| replacement | |||||
|
50
|
50
98AL-401000 HoseT NIPPLE - AIR VENT |
98AL-401000 |
from US $8.64 |
||
|
51
|
51
98AL-4-1000
Rubber Pipe
T/BODY - T NIPPLE |
98AL-4-1000 |
— | ||
| replacement | |||||
|
51
|
51
98AL-401000 HoseT/BODY - T NIPPLE |
98AL-401000 |
from US $8.64 |
||
|
52
|
52
98AL-4-1000
Rubber Pipe
T NIPPLE - FOR OUTLET |
98AL-4-1000 |
— | ||
| replacement | |||||
|
52
|
52
98AL-401000 HoseT NIPPLE - FOR OUTLET |
98AL-401000 |
from US $8.64 |
||
|
53
|
53
393-01160-0 Check Valve |
393-01160-0 |
from US $5.10 |
||
|
54
|
54
3T5-10086-0 Clamp |
3T5-10086-0 |
from US $6.19 |
||
|
55
|
55
98AB-3-1000 Rubber HoseV/SEPARATOR - BOTTOM COWL |
98AB-3-1000 |
US $14.42 |
||
| replacement | |||||
|
55
|
55
98AB-301000 HoseV/SEPARATOR - BOTTOM COWL |
98AB-301000 |
from US $4.75 |
||
|
56
|
56
3AC-10087-0 Clamp |
3AC-10087-0 |
from US $3.46 |
||
