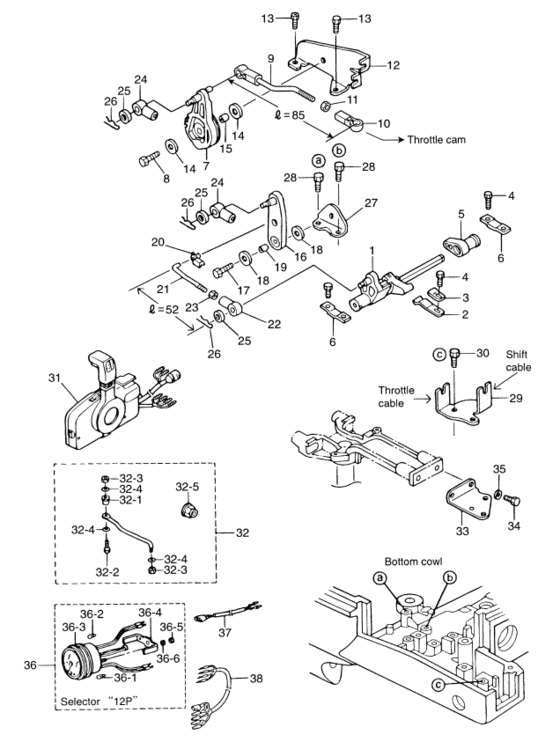

Shift Diagram Tohatsu MFS30B
- Year
- 2005
- Model
- MFS30B
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R0-66130-0 Shift Lever Shaft Assy |
3R0-66130-0 |
from US $16.42 |
||
|
2
|
2
3C8-66112-0 Shift Lever Stopper |
3C8-66112-0 |
US $3.39 |
||
| replacement | |||||
|
2
|
2
3C8-66113-1 SHIFT DETENT SPRING |
3C8-66113-1 |
US $2.30 |
||
|
3
|
3
3C8-66116-0 Shift Lever Stopper |
3C8-66116-0 |
US $2.89 |
||
| replacement | |||||
|
3
|
3
3C8-66117-0 Plate shift lever stopper |
3C8-66117-0 |
US $3.60 |
||
|
4
|
4
910113-5612 Bolt7 FOR MF & EF / 5 FOR EP & EPT |
910113-5612 |
from US $1.10 |
||
| replacement | |||||
|
4
|
4
9101E3-5612 Bolt7 FOR MF & EF / 5 FOR EP & EPT |
9101E3-5612 |
from US $1.52 |
||
|
5
|
5
3R0-66225-0 Shift Rod Lever |
3R0-66225-0 |
from US $3.54 |
||
|
6
|
6
3R3-66145-0 Holder3 FOR MF & EF / 2 FOR EP & EPT |
3R3-66145-0 |
from US $2.55 |
||
|
7
|
7
3AC-63622-0 Throttle Drum Assy |
3AC-63622-0 |
from US $9.07 |
||
|
8
|
8
910113-0620 Bolt |
910113-0620 |
from US $1.15 |
||
| replacements | |||||
|
8
|
8
910103-0620 Bolt |
910103-0620 |
from US $1.01 |
||
|
8
|
8
9101E3-0620 Bolt |
9101E3-0620 |
from US $1.01 |
||
|
9
|
9
3AC-63610-0 Link Rod Assy (Throttle) |
3AC-63610-0 |
from US $14.26 |
||
|
10
|
10
3B7-05243-0 Ball Joint Connector |
3B7-05243-0 |
from US $2.36 |
||
|
11
|
11
930103-0500 Nut |
930103-0500 |
US $0.58 |
||
|
12
|
12
3AC-63508-0 Throttle Wire Bracket |
3AC-63508-0 |
from US $21.31 |
||
|
13
|
13
910113-5612 Bolt |
910113-5612 |
from US $1.10 |
||
| replacement | |||||
|
13
|
13
9101E3-5612 Bolt |
9101E3-5612 |
from US $1.52 |
||
|
14
|
14
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
15
|
15
353-76079-0 Collar |
353-76079-0 |
from US $2.02 |
||
|
16
|
16
3AC-66122-0 Shift ArmFOR EP & EPT |
3AC-66122-0 |
from US $4.18 |
||
|
17
|
17
910113-5620 BoltFOR EP & EPT |
910113-5620 |
US $1.92 |
||
| replacement | |||||
|
17
|
17
9101E3-5620 BoltFOR EP & EPT |
9101E3-5620 |
from US $1.76 |
||
|
18
|
18
3R0-66308-0 WasherFOR EP & EPT |
3R0-66308-0 |
from US $1.58 |
||
|
19
|
19
353-76079-0 CollarFOR EP & EPT |
353-76079-0 |
from US $2.02 |
||
|
20
|
20
3C8-63733-0 Rod SnapFOR EP & EPT |
3C8-63733-0 |
from US $1.73 |
||
|
21
|
21
3R0-63709-0 Shift Lever RodFOR EP & EPT |
3R0-63709-0 |
from US $2.30 |
||
|
22
|
22
3R0-83715-0 Cable JointFOR EP & EPT |
3R0-83715-0 |
from US $1.73 |
||
|
23
|
23
930103-0500 NutFOR EP & EPT |
930103-0500 |
US $0.58 |
||
|
24
|
24
3B7-83715-1 Cable JointFOR EP & EPT |
3B7-83715-1 |
US $5.46 |
||
| replacement | |||||
|
24
|
24
3B7-83715-2 Cable JointFOR EP & EPT |
3B7-83715-2 |
from US $4.03 |
||
|
25
|
25
3AA-83719-0 WasherOR 353-83719-0 FOR EP & EPT |
3AA-83719-0 |
from US $2.64 |
||
|
26
|
26
951603-0800 Snap PinFOR EP & EPT |
951603-0800 |
from US $0.86 |
||
|
27
|
27
3R0-66126-0 BracketFOR EP & EPT |
3R0-66126-0 |
from US $10.80 |
||
|
28
|
28
910113-5616 BoltFOR EP & EPT |
910113-5616 |
US $1.58 |
||
| replacement | |||||
|
28
|
28
9101E3-5616 BoltFOR EP & EPT |
9101E3-5616 |
from US $1.58 |
||
|
29
|
29
3R0-83820-0 Cable Clip AssyFOR EP & EPT |
3R0-83820-0 |
from US $8.87 |
||
|
30
|
30
910113-5616 BoltFOR EP & EPT |
910113-5616 |
US $1.58 |
||
| replacement | |||||
|
30
|
30
9101E3-5616 BoltFOR EP & EPT |
9101E3-5616 |
from US $1.58 |
||
|
31
|
31
3B7Q84330-2 Remote Control Box (Rc5A)TOHATSU / FOR EPT |
3B7Q84330-2 |
from US $616.56 |
||
| replacement | |||||
|
31
|
31
3ACQ84330-0 Remote Control Head AssyTOHATSU / FOR EPT |
3ACQ84330-0 |
from US $616.56 |
||
|
31
|
31
3B7Q84340-2 Remote Control Box (Rc5B)TOHATSU / FOR EP |
3B7Q84340-2 |
from US $639.90 |
||
| replacement | |||||
|
31
|
31
3B7Q84340-3 Remote Control Head AssyTOHATSU / FOR EP |
3B7Q84340-3 |
from US $570.24 |
||
|
31
|
31
3B1Q84303-3
Remote control head assy europe only
NISSAN / FOR EPT |
3B1Q84303-3 |
— | ||
|
31
|
31
3B1N84340-3 Remote Control Box Ass'y (Rc8B)NISSAN / FOR EP |
3B1N84340-3 |
from US $649 |
||
| replacements | |||||
|
31
|
31
3B1Q84340-3 Single Remote Control Box Ass'y (RcNISSAN / FOR EP |
3B1Q84340-3 |
from US $581.30 |
||
|
31
|
31
3B1Q84340-4 Remote Control Head AssyNISSAN / FOR EP |
3B1Q84340-4 |
from US $649 |
||
|
32
|
32
3E0-84905-0 Drag Link AssyFOR EP & EPT |
3E0-84905-0 |
from US $156.24 |
||
|
32-1
|
32-1
3E0-84914-0 SpacerFOR EP & EPT |
3E0-84914-0 |
from US $7.92 |
||
|
32-2
|
32-2
3E0-84917-0 BoltFOR EP & EPT |
3E0-84917-0 |
from US $11.38 |
||
|
32-3
|
32-3
353-84918-0 Nylon NutFOR EP & EPT |
353-84918-0 |
from US $4.18 |
||
|
32-4
|
32-4
353-84916-0 WasherFOR EP & EPT |
353-84916-0 |
from US $1.44 |
||
|
32-5
|
32-5
3F3-84908-0 Seal RingFOR EP & EPT |
3F3-84908-0 |
from US $2.02 |
||
|
33
|
33
3R0-83830-0 Steering Hook PlateFOR EP & EPT |
3R0-83830-0 |
from US $11.26 |
||
|
34
|
34
910113-1030 BoltFOR EP & EPT |
910113-1030 |
from US $2.76 |
||
| replacements | |||||
|
34
|
34
910103-1030 BoltFOR EP & EPT |
910103-1030 |
from US $2.68 |
||
|
34
|
34
9101E3-1030 ﾎﾞﾙﾄFOR EP & EPT |
9101E3-1030 |
US $3.46 |
||
|
35
|
35
940113-1000 WasherFOR EP & EPT |
940113-1000 |
US $1.35 |
||
| replacement | |||||
|
35
|
35
9401E3-1000 WasherFOR EP & EPT |
9401E3-1000 |
from US $0.71 |
||
|
36
|
36
3N8-72640-1 Tachometer W/oil LampOPTION FOR EP & EPT |
3N8-72640-1 |
US $329.76 |
||
|
36-1
|
36-1
3B7-72658-0 Oil BulbFOR EP & EPT |
3B7-72658-0 |
from US $2.45 |
||
|
36-2
|
36-2
3B7-72659-0 Meter BulbFOR EP & EPT |
3B7-72659-0 |
US $2.45 |
||
|
36-3
|
36-3
3B7-72656-0 Meter DamperFOR EP & EPT |
3B7-72656-0 |
from US $2.45 |
||
|
36-4
|
36-4
3B7-72661-0 Fitting PlateFOR EP & EPT |
3B7-72661-0 |
from US $18 |
||
|
36-5
|
36-5
930203-0500 NutFOR EP & EPT |
930203-0500 |
from US $0.72 |
||
|
36-6
|
36-6
941303-0500 Spring WasherFOR EP & EPT |
941303-0500 |
from US $0.86 |
||
|
37
|
37
361-72539-0 Tachometer Lead WireL=6000 OPTION FOR MF & EF |
361-72539-0 |
from US $40.90 |
||
|
38
|
38
3R0-72537-1 Meter Lead WireL=2000 OPTION FOR EP & EPT |
3R0-72537-1 |
from US $72.40 |
||
