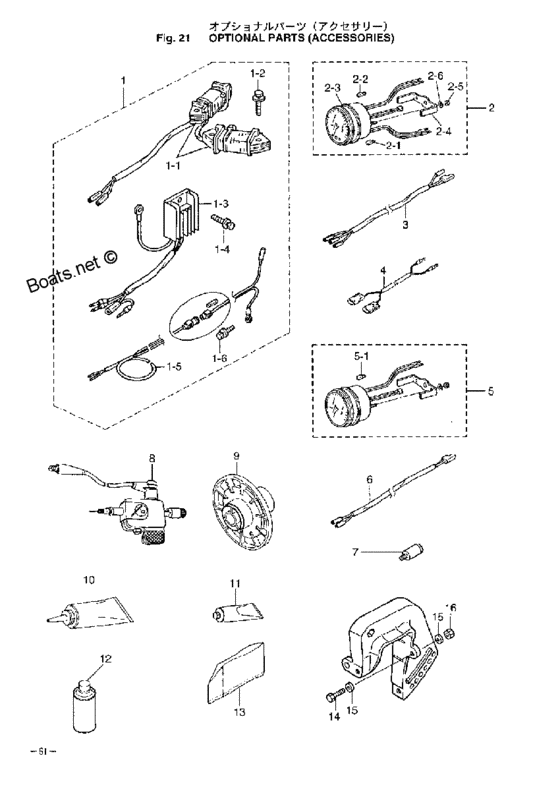

Accessories Diagram Tohatsu MFS8A2
- Year
- 2005
- Model
- MFS8A2
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AA-06128-0 Alternator Set# 031096DX- for 9.8A2/8A2 (MF) |
3AA-06128-0 |
from US $162.72 |
||
|
1-1
|
1-1
3AA-06023-0 Alternator Assy |
3AA-06023-0 |
from US $69.64 |
||
|
1-2
|
1-2
910103-5630 Bolt |
910103-5630 |
from US $1.30 |
||
|
1-3
|
1-3
3AA-76065-0 Rectifier Complete |
3AA-76065-0 |
from US $111.31 |
||
|
1-5
|
1-5
361-76161-0 Extension Cord |
361-76161-0 |
from US $17.78 |
||
|
2
|
2
3N8-72640-1 Tachometer W/oil LampUnique for EP |
3N8-72640-1 |
US $329.76 |
||
|
2-1
|
2-1
3B7-72658-0 Oil Bulb |
3B7-72658-0 |
from US $2.45 |
||
|
2-2
|
2-2
3B7-72659-0 Meter Bulb |
3B7-72659-0 |
US $2.45 |
||
|
2-3
|
2-3
3B7-72656-0 Meter Damper |
3B7-72656-0 |
from US $2.45 |
||
|
2-4
|
2-4
3B7-72661-0 Fitting Plate |
3B7-72661-0 |
from US $18 |
||
|
2-5
|
2-5
930203-0500 Nut |
930203-0500 |
from US $0.72 |
||
|
2-6
|
2-6
941303-0500 Spring Washer |
941303-0500 |
from US $0.86 |
||
|
3
|
3
3V1-72539-0 Tachometer Lead WireL=6000, for EP |
3V1-72539-0 |
from US $87.05 |
||
|
4
|
4
353-72537-0 Meter Lead WireL=1500, for EP |
353-72537-0 |
from US $16.42 |
||
|
5
|
5
3B7-72530-1
Tachometer Ass'y
Unique, for MF & EF |
3B7-72530-1 |
— | ||
| replacement | |||||
|
5
|
5
3B7-72530-2 Tachometer AssyUnique, for MF & EF |
3B7-72530-2 |
US $303.84 |
||
|
6
|
6
361-72539-0 Tachometer Lead WireL=6000, for MF & EF |
361-72539-0 |
from US $40.90 |
||
|
7
|
7
336-60007-0 Flushing Plug |
336-60007-0 |
from US $5.90 |
||
|
8
|
8
3F3-72540-0 Ignition checker |
3F3-72540-0 |
from US $174.24 |
||
|
9
|
9
3B2-64110-1 Test propeller |
3B2-64110-1 |
from US $200.16 |
||
|
10
|
10
332-72306-0 Gear Oil20 Tubes/Case N.A.F.N. |
332-72306-0 |
US $1,667.28 |
||
|
11
|
11
332-72309-0
Grease (250G)
24 Tubes/Case N.A.F.N. |
332-72309-0 |
— | ||
|
12
|
12
3B7-72326-0
Touch-Up Paint (Silver Gray)
N.A.F.N. |
3B7-72326-0 |
— | ||
|
13
|
13
380-72312-0 Vinyl motor coverUnique |
380-72312-0 |
US $34.96 |
||
