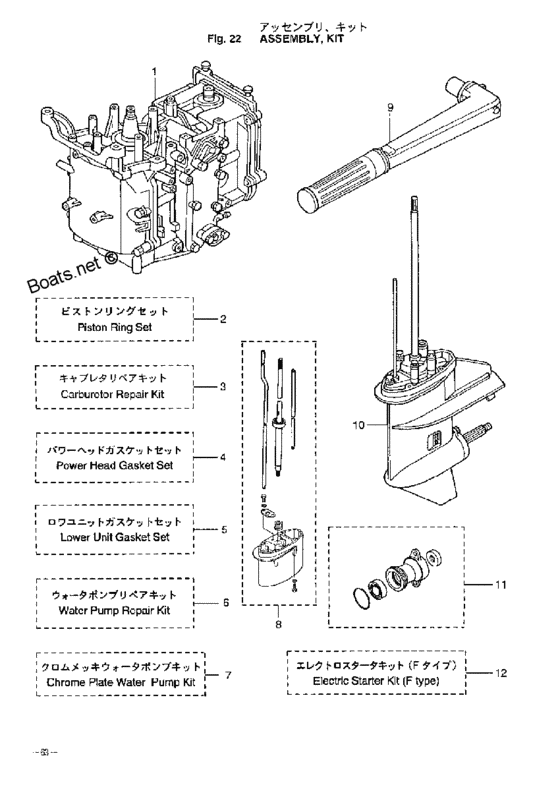

Assembly kit Diagram Tohatsu MFS8A2
- Year
- 2005
- Model
- MFS8A2
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V1B87100-1 Engine Short Block |
3V1B87100-1 |
from US $1,788.55 |
||
| replacement | |||||
|
1
|
1
3V1B87090-7 Engine Short Block Kit |
3V1B87090-7 |
from US $1,788.55 |
||
|
2
|
2
3V1-87123-0 Piston Ring Set |
3V1-87123-0 |
from US $42.91 |
||
|
2
|
2
3V1-00016-0 Piston Ring-Oil (0.5 O/s) |
3V1-00016-0 |
from US $7.63 |
||
|
2
|
2
3V1-00011-0 Piston Ring |
3V1-00011-0 |
from US $7.92 |
||
|
2
|
2
3V1-00012-0 Piston Ring |
3V1-00012-0 |
from US $7.06 |
||
|
2
|
2
3V1-00013-0 Piston Ring-Oil |
3V1-00013-0 |
from US $8.78 |
||
|
2
|
2
3V1-87124-0 Piston Ring Set (0.5 O/s) |
3V1-87124-0 |
from US $42.62 |
||
|
2
|
2
3V1-00014-0 Piston Ring (0.5 O/s) |
3V1-00014-0 |
from US $7.88 |
||
|
2
|
2
3V1-00015-0 Piston Ring (0.5 O/s) |
3V1-00015-0 |
from US $6.63 |
||
|
3
|
3
921703-0406 Screw, Fig. 5-1-11 |
921703-0406 |
from US $0.85 |
||
|
3
|
3
3V1-03121-0 Float Chamber Gasket, Fig. 5-1-15 |
3V1-03121-0 |
from US $4.65 |
||
|
3
|
3
3V1-87122-0 Carburetor Repair Kit |
3V1-87122-0 |
from US $46.45 |
||
|
3
|
3
922503-6412 Screw, Fig. 5-1-16 |
922503-6412 |
from US $1.58 |
||
|
3
|
3
3V1-03116-0 O-Ring, Fig. 5-1-5 |
3V1-03116-0 |
from US $1.27 |
||
|
3
|
3
3V1-03193-0 Gasket, Fig. 5-1-18 |
3V1-03193-0 |
from US $2.12 |
||
|
3
|
3
3V1-03147-1 Float Valve, Fig. 5-1-8 |
3V1-03147-1 |
from US $16.42 |
||
|
3
|
3
3V1-03182-0 Carburetor Cover Gasket, Fig. 5-1-20 |
3V1-03182-0 |
from US $3.37 |
||
|
3
|
3
3C8-03126-0 Float Arm Pin, Fig. 5-1-9 |
3C8-03126-0 |
from US $2.30 |
||
|
3
|
3
922503-6410 Screw, Fig. 5-1-21 |
922503-6410 |
from US $1.99 |
||
|
3
|
3
3C8-03125-0 Float, Fig. 5-1-10 |
3C8-03125-0 |
from US $13.84 |
||
|
4
|
4
3V1-87121-0 Power Head Gasket Set |
3V1-87121-0 |
from US $98.78 |
||
|
4
|
4
3V1-07653-0 Oil Pump Gasket |
3V1-07653-0 |
from US $4.32 |
||
|
4
|
4
3V1-01303-0 Engine Basement Gasket |
3V1-01303-0 |
from US $22.32 |
||
|
4
|
4
3V1-01005-0 Cylinder Head Gasket |
3V1-01005-0 |
from US $25.34 |
||
|
4
|
4
3H8-07025-0 Oil Seal |
3H8-07025-0 |
from US $7.63 |
||
|
4
|
4
3V1-00121-0 Oil Seal |
3V1-00121-0 |
from US $10.80 |
||
|
4
|
4
3V1-01024-0 Cylinder Head Cover Gasket |
3V1-01024-0 |
from US $5.47 |
||
|
4
|
4
3B2-01215-0 Oil Seal |
3B2-01215-0 |
from US $3.10 |
||
|
4
|
4
3V1-02104-0 Intake Manifold Gasket |
3V1-02104-0 |
from US $3.89 |
||
|
4
|
4
3R0-07422-0 O-Ring |
3R0-07422-0 |
from US $1.01 |
||
|
4
|
4
3V1-02011-0 Carburetor Gasket |
3V1-02011-0 |
from US $1.97 |
||
|
4
|
4
3V1-02305-0 Exhaust Cover Gasket |
3V1-02305-0 |
from US $4.75 |
||
|
4
|
4
3V1-02012-0 O-Ring |
3V1-02012-0 |
from US $1.62 |
||
|
4
|
4
346-01032-0 Thermostat Cap Gasket |
346-01032-0 |
from US $2.55 |
||
|
4
|
4
3H6-07422-0 O-Ring |
3H6-07422-0 |
from US $1.73 |
||
|
4
|
4
3R3-01144-0 Gasket |
3R3-01144-0 |
from US $1.30 |
||
|
5
|
5
3B2-02312-0 Gasket Exhaust Pipe |
3B2-02312-0 |
from US $1.84 |
||
| replacement | |||||
|
5
|
5
3B2-02312-2 Exhaust Pipe Gasket |
3B2-02312-2 |
from US $3.53 |
||
|
5
|
5
3B2-65029-0 Gasket Pump Guide Plate |
3B2-65029-0 |
US $2.87 |
||
| replacement | |||||
|
5
|
5
3B2-65029-2 Guide Plate Gasket |
3B2-65029-2 |
from US $2.30 |
||
|
5
|
5
3B2-65020-0 Gasket Water Pump Case Lower |
3B2-65020-0 |
from US $3.46 |
||
| replacement | |||||
|
5
|
5
3B2-65020-1 Pump Case Gasket (Lower) |
3B2-65020-1 |
from US $3.46 |
||
|
5
|
5
309-60111-0 Oil Seal |
309-60111-0 |
from US $4.03 |
||
|
5
|
5
3B2-87321-0
Lower Unit Gasket Set
|
3B2-87321-0 |
— | ||
| replacement | |||||
|
5
|
5
3B2-87321-4 Lower Unit Gasket Set |
3B2-87321-4 |
US $57.47 |
||
|
5
|
5
369-66021-1 O-Ring |
369-66021-1 |
from US $1.15 |
||
|
5
|
5
332-60006-0
Gasket
|
332-60006-0 |
— | ||
| replacement | |||||
|
5
|
5
332-60006-1 Gasket |
332-60006-1 |
from US $0.99 |
||
|
5
|
5
332-66032-0 O-Ring |
332-66032-0 |
from US $1.01 |
||
|
5
|
5
345-65015-0 O-Ring |
345-65015-0 |
from US $1.63 |
||
|
5
|
5
3B2-61012-0
Gasket Drive Shaft Housing
|
3B2-61012-0 |
— | ||
| replacement | |||||
|
5
|
5
3B2-61012-2 Drive Shaft Housing Gasket |
3B2-61012-2 |
from US $15.77 |
||
|
5
|
5
369-60111-0 Oil Seal |
369-60111-0 |
from US $3.89 |
||
|
6
|
6
940113-0600 Washer |
940113-0600 |
from US $0.58 |
||
|
6
|
6
3B2-87322-0
Water Pump Repair Kit
|
3B2-87322-0 |
— | ||
| replacement | |||||
|
6
|
6
3B2-87322-2 Water Pump Repair Kit |
3B2-87322-2 |
from US $41.76 |
||
|
6
|
6
3B2-65021-1 Water Pump Impeller |
3B2-65021-1 |
from US $17.28 |
||
|
6
|
6
3B2-65022-0 Key |
3B2-65022-0 |
from US $1.97 |
||
|
6
|
6
3B2-65011-0 Pump Case Liner |
3B2-65011-0 |
from US $6.48 |
||
|
6
|
6
3B2-65025-0 Water Pump Guide Plate |
3B2-65025-0 |
from US $2.16 |
||
|
7
|
7
3B2-65231-0 Chrome Plated Water Pump Kit |
3B2-65231-0 |
from US $75.44 |
||
| replacement | |||||
|
7
|
7
3B2-65231-2 Water Pump Kit (Chrome Plated) |
3B2-65231-2 |
from US $55.87 |
||
|
7
|
7
3B2-65238-0 Pump Case Liner |
3B2-65238-0 |
from US $25.34 |
||
|
7
|
7
3B2-65239-0 Water Pump Guide Plate |
3B2-65239-0 |
from US $17.86 |
||
|
8
|
8
3V1-64332-0 Stopper |
3V1-64332-0 |
from US $5.69 |
||
|
8
|
8
910113-5612 Bolt |
910113-5612 |
from US $1.10 |
||
| replacement | |||||
|
8
|
8
9101E3-5612 Bolt |
9101E3-5612 |
from US $1.52 |
||
|
8
|
8
3V1-64309-1 Drive Shaft Assy (Ul) |
3V1-64309-1 |
from US $114.34 |
||
|
8
|
8
3V1-66014-0 Cam Rod (Ul) |
3V1-66014-0 |
from US $21.85 |
||
|
8
|
8
3V1S87314-2 Extension Housing Kit Ulfor Transom "UL" |
3V1S87314-2 |
from US $355.68 |
||
| replacement | |||||
|
8
|
8
3V1S87314-4 Extension Housing Kit Ulfor Transom "UL" |
3V1S87314-4 |
from US $355.68 |
||
|
8
|
8
3V1-65120-0 Water Pipe (Ul) |
3V1-65120-0 |
from US $17.28 |
||
|
8
|
8
3B2S61110-2 Extension Housing Ul |
3B2S61110-2 |
from US $181.01 |
||
|
8
|
8
3B2-60003-1 Drive Shaft Bushing |
3B2-60003-1 |
from US $27.17 |
||
|
9
|
9
3V1S63003-0 Tiller Handle Ass'y |
3V1S63003-0 |
from US $128.84 |
||
| replacement | |||||
|
9
|
9
3V1S63003-3 Tiller Handle Ass'y |
3V1S63003-3 |
US $153.80 |
||
|
10
|
10
3V1S87301-2 Lower Unit Ass'y Sfor Transom "S" |
3V1S87301-2 |
from US $853.84 |
||
|
10
|
10
3V1S87302-2 Lower Unit Ass'y Lfor Transom "L" |
3V1S87302-2 |
from US $853.84 |
||
|
11
|
11
3B2S60100-0
Propeller Shaft Housing Ass'y
|
3B2S60100-0 |
— | ||
| replacement | |||||
|
11
|
11
3B2Q60100-1 Propeller Shaft Housing Assy |
3B2Q60100-1 |
US $62.35 |
||
|
12
|
12
3V1-76148-0 Spiral Tube Protector |
3V1-76148-0 |
from US $4.90 |
||
|
12
|
12
3V1-76011-0 Starter Motor Bracket |
3V1-76011-0 |
from US $33.19 |
||
| replacement | |||||
|
12
|
12
3V1-76011-1 Starter Motor Bracket |
3V1-76011-1 |
from US $33.19 |
||
|
12
|
12
174-35012-0 Collar |
174-35012-0 |
from US $2.74 |
||
|
12
|
12
3V1-06900-0 Electric Bracket |
3V1-06900-0 |
from US $25.94 |
||
|
12
|
12
3Y0-76145-0 Terminal Cap |
3Y0-76145-0 |
from US $2.48 |
||
|
12
|
12
3H8-76040-0 Starter Solenoid |
3H8-76040-0 |
from US $66.96 |
||
|
12
|
12
3AA-06902-0 Cover Terminal Holder |
3AA-06902-0 |
from US $6.12 |
||
| replacement | |||||
|
12
|
12
3AA-06902-1 Cover |
3AA-06902-1 |
from US $6.12 |
||
|
12
|
12
3T5-06920-0 Rubber Mount |
3T5-06920-0 |
from US $1.14 |
||
|
12
|
12
3Y1-76145-0 Terminal Cap |
3Y1-76145-0 |
from US $2.48 |
||
|
12
|
12
3AA-76065-0 Rectifier Complete |
3AA-76065-0 |
from US $111.31 |
||
|
12
|
12
398-76080-0 Neutral Switch |
398-76080-0 |
from US $29.38 |
||
|
12
|
12
3C8-66308-0 Washer |
3C8-66308-0 |
from US $1.15 |
||
|
12
|
12
3V1-76066-0 Fuse Wire Assy |
3V1-76066-0 |
from US $36.08 |
||
|
12
|
12
3V2-76300-0 Electric Starter Kit# 031096XD- for 9.8A2/8A2 (New) |
3V2-76300-0 |
from US $1,123.55 |
||
| replacement | |||||
|
12
|
12
3V2-76300-3 Electric Starter Kit (F)# 031096XD- for 9.8A2/8A2 (New) |
3V2-76300-3 |
from US $916.78 |
||
|
12
|
12
3B2-76120-0 Battery Cord |
3B2-76120-0 |
US $69.64 |
||
| replacements | |||||
|
12
|
12
3V1-76120-2 New Genuine Part |
3V1-76120-2 |
from US $68.54 |
||
|
12
|
12
3B2-76120-1 Battery Cable |
3B2-76120-1 |
US $79.49 |
||
|
12
|
12
398-76083-0 Neutral Switch Actuator |
398-76083-0 |
from US $6.19 |
||
|
12
|
12
3B7-06305-0 Rubber Mount |
3B7-06305-0 |
from US $0.71 |
||
|
12
|
12
3R0-76064-0 Fuse Holder Bracket |
3R0-76064-0 |
from US $1.01 |
||
|
12
|
12
3AA-06091-0 Flywheel W/gear |
3AA-06091-0 |
from US $304.13 |
||
|
12
|
12
3AA-76145-0 Terminal Cap |
3AA-76145-0 |
from US $2.48 |
||
|
12
|
12
3AA-76026-0 Main Switch Assy, or 3B2-76026-1 |
3AA-76026-0 |
US $15.41 |
||
|
12
|
12
3A0-76079-0
Collar
|
3A0-76079-0 |
— | ||
| replacement | |||||
|
12
|
12
3H6-76079-1 Collar |
3H6-76079-1 |
from US $1.15 |
||
|
12
|
12
3AA-06281-0 Holder Cable Terminal |
3AA-06281-0 |
from US $15.09 |
||
| replacement | |||||
|
12
|
12
3AA-06281-1 Cable Terminal Holder |
3AA-06281-1 |
from US $15.09 |
||
|
12
|
12
3AA-06023-0 Alternator Assy |
3AA-06023-0 |
from US $69.64 |
||
|
12
|
12
3B2-76147-1 Starter Cord |
3B2-76147-1 |
from US $16.56 |
||
| replacement | |||||
|
12
|
12
3B2-76147-2 Starter Cable |
3B2-76147-2 |
from US $15.26 |
||
|
12
|
12
3AA-76010-0 Starter Motor Assy |
3AA-76010-0 |
from US $465.84 |
||
|
12
|
12
3V1-06284-0 Stay Terminal Holder |
3V1-06284-0 |
from US $5.38 |
||
|
12
|
12
910103-5630 Bolt |
910103-5630 |
from US $1.30 |
||
|
12A
|
12A
3V1-06023-0 AlternatorSame Parts as 3V2-76300-0 Except Alternator & Rectifier |
3V1-06023-0 |
from US $64.88 |
||
|
12A
|
12A
3V1-76065-0 RectifierSame Parts as 3V2-76300-0 Except Alternator & Rectifier |
3V1-76065-0 |
US $117.94 |
||
|
12A
|
12A
3V1-76300-1 Electric start kit 8/9.8a (f type)-027338XD for 9.8A/8A (Old) |
3V1-76300-1 |
US $1,114.97 |
||
| replacement | |||||
|
12A
|
12A
3V1-76300-0 Electric Starter Kit(F Type)-027338XD for 9.8A/8A (Old) |
3V1-76300-0 |
from US $1,114.97 |
||
