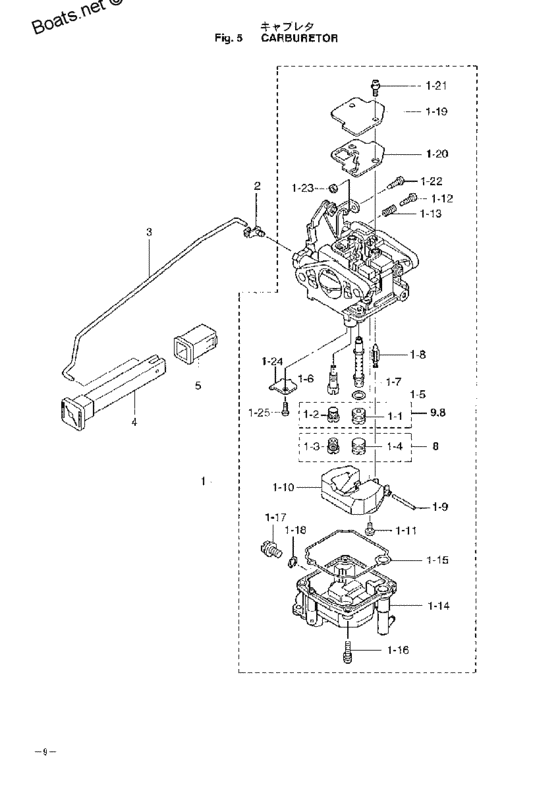

Carburetor Diagram Tohatsu MFS8A2
- Year
- 2005
- Model
- MFS8A2
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V1-03100-2 Carburetor# 010322XD- for MF & EF (3V1FB) |
3V1-03100-2 |
from US $220.73 |
||
| replacement | |||||
|
1
|
1
3V1-03100-3 Carburetor Assy# 010322XD- for MF & EF (3V1FB) |
3V1-03100-3 |
from US $212.11 |
||
|
1
|
1
3V1-03133-2 Carburetor# 010322XD- for EP (3V1FB) |
3V1-03133-2 |
from US $250.70 |
||
| replacement | |||||
|
1
|
1
3V1-03133-3 Carburetor Assy (Ep)# 010322XD- for EP (3V1FB) |
3V1-03133-3 |
US $250.70 |
||
|
1-10
|
1-10
3C8-03125-0 Float |
3C8-03125-0 |
from US $13.84 |
||
|
1-11
|
1-11
921703-0406 Screw |
921703-0406 |
from US $0.85 |
||
|
1-12
|
1-12
3V2-03179-0 Stop Screw, # 031096XD-, L=18 |
3V2-03179-0 |
from US $3.69 |
||
|
1-13
|
1-13
3V2-03157-0 Spring, # 031096XD-, L=14 |
3V2-03157-0 |
from US $1.44 |
||
|
1-14
|
1-14
3V1-03120-0 Float Chamber |
3V1-03120-0 |
from US $42.67 |
||
|
1-15
|
1-15
3V1-03121-0 Float Chamber Gasket |
3V1-03121-0 |
from US $4.65 |
||
|
1-16
|
1-16
922503-6412 Screw |
922503-6412 |
from US $1.58 |
||
|
1-17
|
1-17
3V1-03192-0 Drain Screw |
3V1-03192-0 |
from US $3.60 |
||
|
1-18
|
1-18
3V1-03193-0 Gasket |
3V1-03193-0 |
from US $2.12 |
||
|
1-19
|
1-19
3C8-03181-0 Carburetor Cover |
3C8-03181-0 |
from US $5.90 |
||
|
1-20
|
1-20
3V1-03182-0 Carburetor Cover Gasket |
3V1-03182-0 |
from US $3.37 |
||
|
1-21
|
1-21
922503-6410 Screw |
922503-6410 |
from US $1.99 |
||
|
1-22
|
1-22
3V1-03179-0 Stop Screw, L=15 |
3V1-03179-0 |
from US $3.74 |
||
|
1-23
|
1-23
3V1-03191-0 Nut |
3V1-03191-0 |
from US $5.85 |
||
|
1-24
|
1-24
3V1-03128-0 Plate |
3V1-03128-0 |
from US $2.50 |
||
|
1-3
|
1-3
3V1-04476-0 Main Jet (#76), Old Part No. 3V1-04676-0 |
3V1-04476-0 |
from US $9.15 |
||
|
1-4
|
1-4
3V1-03169-0 Plug |
3V1-03169-0 |
from US $6.29 |
||
|
1-5
|
1-5
3V1-03116-0 O-Ring, Old Part 3V1-03194-0 |
3V1-03116-0 |
from US $1.27 |
||
|
1-6
|
1-6
3V1-04539-0 Slow Jet (#39), Old Part 3V1-04739-0 |
3V1-04539-0 |
from US $20.74 |
||
|
1-7
|
1-7
3V1-03141-0 Main Nozzle |
3V1-03141-0 |
from US $13.39 |
||
|
1-8
|
1-8
3V1-03147-1 Float Valve, # 010322XD- |
3V1-03147-1 |
from US $16.42 |
||
|
1-9
|
1-9
3C8-03126-0 Float Arm Pin |
3C8-03126-0 |
from US $2.30 |
||
|
2
|
2
346-67196-1 Rod Snapfor MF & EF |
346-67196-1 |
from US $2.02 |
||
|
3
|
3
3V1-67192-1
Choke Rod
# 010322XD-, for MF & EF |
3V1-67192-1 |
— | ||
|
4
|
4
3C8-67151-0 Choke Knobfor MF & EF |
3C8-67151-0 |
US $4.90 |
||
| replacement | |||||
|
4
|
4
3C8-67151-1 Choke Rodfor MF & EF |
3C8-67151-1 |
US $4.22 |
||
|
5
|
5
3C8-67156-0 Bushingfor MF & EF |
3C8-67156-0 |
from US $3.10 |
||
