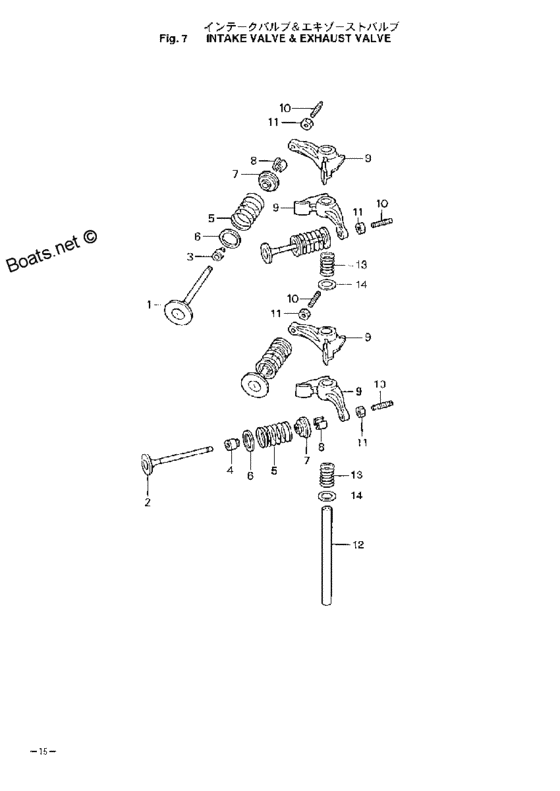

Intake valve & exhaust valve Diagram Tohatsu MFS8A2
- Year
- 2005
- Model
- MFS8A2
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V1-07201-0 Intake Valve |
3V1-07201-0 |
from US $17.38 |
||
|
2
|
2
3V1-07202-0 Exhaust Valve |
3V1-07202-0 |
from US $20.55 |
||
|
3
|
3
3R3-07204-0 Intake Valve Stem SealBlack |
3R3-07204-0 |
from US $2.88 |
||
|
4
|
4
3R3-07206-0 Exhaust Valve Stem SealGreen |
3R3-07206-0 |
from US $2.88 |
||
|
5
|
5
3AA-07203-0 Valve Spring# 002966XD-, L=38.3 |
3AA-07203-0 |
from US $4.61 |
||
|
5
|
5
3H6-07203-1 Valve Spring-# 049138XC, L=35 |
3H6-07203-1 |
from US $1.73 |
||
| replacement | |||||
|
5
|
5
3AE-07203-0 Valve Spring-# 049138XC, L=35 |
3AE-07203-0 |
from US $2.16 |
||
|
6
|
6
3V1-07205-0 Valve Spring Seat |
3V1-07205-0 |
from US $1.14 |
||
|
7
|
7
3V1-07221-0 Retainer |
3V1-07221-0 |
from US $4.61 |
||
|
8
|
8
3H6-07223-0 Cotter |
3H6-07223-0 |
US $3.21 |
||
| replacement | |||||
|
8
|
8
3KY-07923-0 Cotter |
3KY-07923-0 |
US $2.74 |
||
|
9
|
9
3V1-07235-0 Rocker Arm |
3V1-07235-0 |
from US $30.07 |
||
| replacement | |||||
|
9
|
9
3Y2-07935-0 Rocker Arm |
3Y2-07935-0 |
from US $31.10 |
||
|
10
|
10
3R0-07238-0 Adjusting Screw |
3R0-07238-0 |
from US $3.02 |
||
|
11
|
11
3H8-07237-0 Adjusting Nut |
3H8-07237-0 |
from US $2.18 |
||
|
12
|
12
3H8-07226-0 Rocker Arm Shaft |
3H8-07226-0 |
from US $18 |
||
|
13
|
13
3AA-07225-0 Rocker Shaft Spring# 002966XD-, L=25 |
3AA-07225-0 |
from US $3.84 |
||
|
13
|
13
3H8-07225-0 Rocker Shaft Spring-# 049138XC, L=30 |
3H8-07225-0 |
from US $1.66 |
||
|
14
|
14
3R3-07227-0 Washer# 002966XD- |
3R3-07227-0 |
from US $0.72 |
||
