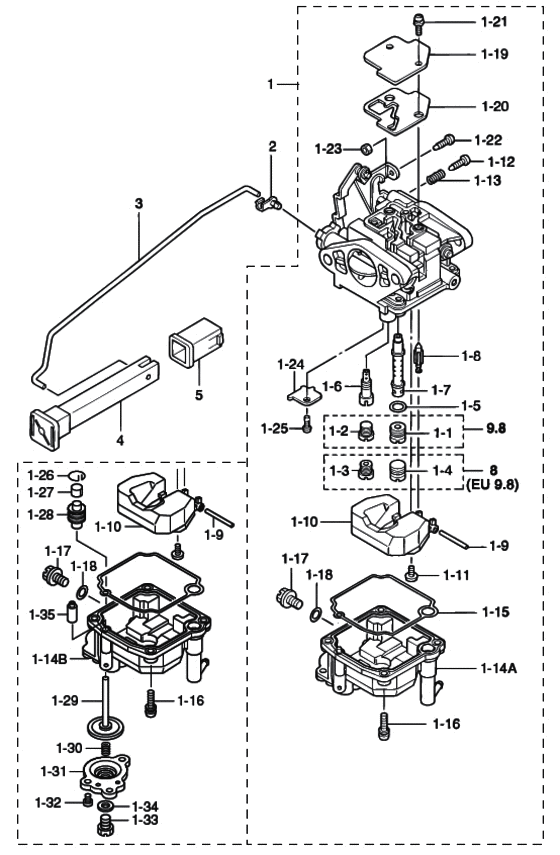

Carburetor Diagram Tohatsu MFS8A3
- Year
- 2009
- Model
- MFS8A3
- Year
- 2009
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V1-03100-2 Carburetor# 036546XD~ / FOR MF & EF/EFT (MARK: 3V1FB) |
3V1-03100-2 |
from US $220.73 |
||
| replacement | |||||
|
1
|
1
3V1-03100-3 Carburetor Assy# 036546XD~ / FOR MF & EF/EFT (MARK: 3V1FB) |
3V1-03100-3 |
from US $212.11 |
||
|
1
|
1
3V1-03133-2 Carburetor#036546XD~ / FOR EP (MARK: 3V1PB) |
3V1-03133-2 |
from US $250.70 |
||
| replacement | |||||
|
1
|
1
3V1-03133-3 Carburetor Assy (Ep)#036546XD~ / FOR EP (MARK: 3V1PB) |
3V1-03133-3 |
US $250.70 |
||
|
1-1
|
1-1
3V2-04492-0 Main Jet (#92)NOT USED |
3V2-04492-0 |
from US $8.58 |
||
|
1-10
|
1-10
3C8-03125-0 Float |
3C8-03125-0 |
from US $13.84 |
||
|
1-11
|
1-11
921703-0406 Screw |
921703-0406 |
from US $0.85 |
||
|
1-12
|
1-12
3V2-03179-0 Stop ScrewL=18 / # 036546XD~ |
3V2-03179-0 |
from US $3.69 |
||
|
1-13
|
1-13
3V2-03157-0 SpringL=14 / # 036546XD~ |
3V2-03157-0 |
from US $1.44 |
||
|
1-14A
|
1-14A
3V1-03120-0 Float Chamber |
3V1-03120-0 |
from US $42.67 |
||
|
1-14B
|
1-14B
3Y0-03120-0 Float ChamberOLD CARBURETOR (F9.8A3) / MARK 3DPFA & 3DPPA |
3Y0-03120-0 |
from US $47.38 |
||
|
1-15
|
1-15
3V1-03121-0 Float Chamber Gasket |
3V1-03121-0 |
from US $4.65 |
||
|
1-16
|
1-16
922503-6412 Screw |
922503-6412 |
from US $1.58 |
||
|
1-17
|
1-17
3V1-03192-0 Drain Screw |
3V1-03192-0 |
from US $3.60 |
||
|
1-18
|
1-18
3V1-03193-0 Gasket |
3V1-03193-0 |
from US $2.12 |
||
|
1-19
|
1-19
3C8-03181-0 Carburetor Cover |
3C8-03181-0 |
from US $5.90 |
||
|
1-2
|
1-2
3V2-03169-0 PlugNOT USED |
3V2-03169-0 |
from US $6.29 |
||
|
1-20
|
1-20
3V1-03182-0 Carburetor Cover Gasket |
3V1-03182-0 |
from US $3.37 |
||
|
1-21
|
1-21
922503-6410 Screw |
922503-6410 |
from US $1.99 |
||
|
1-22
|
1-22
3V1-03179-0 Stop ScrewL=15 / FOR MF & EF/EFT |
3V1-03179-0 |
from US $3.74 |
||
|
1-23
|
1-23
3V1-03191-0 NutFOR MF & EF/EFT |
3V1-03191-0 |
from US $5.85 |
||
|
1-24
|
1-24
3V1-03128-0 Plate |
3V1-03128-0 |
from US $2.50 |
||
|
1-25
|
1-25
922503-0305 Screw |
922503-0305 |
US $0.58 |
||
|
1-26
|
1-26
3AA-03189-0 Retaining RingFOR EU |
3AA-03189-0 |
from US $2.87 |
||
|
1-27
|
1-27
3AA-03190-0 CapFOR EU |
3AA-03190-0 |
from US $2.39 |
||
|
1-28
|
1-28
3AA-03311-0 Rubber BootFOR EU |
3AA-03311-0 |
from US $4.65 |
||
|
1-29
|
1-29
3AA-03315-0 Plunger CompleteFOR EU |
3AA-03315-0 |
from US $21.31 |
||
|
1-3
|
1-3
3V1-04476-0 Main Jet (#76)OLD PART NO. 3V1-04676-0 |
3V1-04476-0 |
from US $9.15 |
||
|
1-3
|
1-3
3V1-04471-0 Main Jet (#71)FOR EU |
3V1-04471-0 |
from US $9.50 |
||
|
1-30
|
1-30
3AA-03314-0 Coil SpringFOR EU |
3AA-03314-0 |
from US $3.31 |
||
|
1-31
|
1-31
3Y0-03197-0 Diaphragm CoverFOR EU |
3Y0-03197-0 |
from US $11.66 |
||
|
1-32
|
1-32
921503-0508 ScrewFOR EU |
921503-0508 |
from US $0.72 |
||
|
1-33
|
1-33
3AA-03192-0 Drain ScrewFOR EU |
3AA-03192-0 |
from US $4.18 |
||
|
1-34
|
1-34
3AA-03193-0 GasketFOR EU |
3AA-03193-0 |
from US $3.24 |
||
|
1-4
|
1-4
3V1-03169-0 Plug |
3V1-03169-0 |
from US $6.29 |
||
|
1-5
|
1-5
3V1-03116-0 O-RingOLD PART NO. 3V1-03194-0 |
3V1-03116-0 |
from US $1.27 |
||
|
1-6
|
1-6
3V1-04539-0 Slow Jet (#39)OLD PART NO. 3V1-04739-0 |
3V1-04539-0 |
from US $20.74 |
||
|
1-6
|
1-6
3V1-04537-0 Slow Jet (#37)FOR EU |
3V1-04537-0 |
from US $20.74 |
||
|
1-7
|
1-7
3V1-03141-0 Main Nozzle |
3V1-03141-0 |
from US $13.39 |
||
|
1-8
|
1-8
3V1-03147-1 Float Valve# 010322XD~ |
3V1-03147-1 |
from US $16.42 |
||
|
1-9
|
1-9
3C8-03126-0 Float Arm Pin |
3C8-03126-0 |
from US $2.30 |
||
|
2
|
2
346-67196-1 Rod SnapFOR MF & EF/EFT |
346-67196-1 |
from US $2.02 |
||
|
3
|
3
3Y3-67192-0 Choke Rod9.8A3/8A3 # 026832XE~ / FOR MF & EF/EFT |
3Y3-67192-0 |
from US $6.12 |
||
|
4
|
4
3C8-67151-1 Choke Rod# 036546XD~ / FOR MF & EF/EFT |
3C8-67151-1 |
US $4.22 |
||
|
5
|
5
3C8-67156-0 BushingFOR MF & EF/EFT |
3C8-67156-0 |
from US $3.10 |
||
