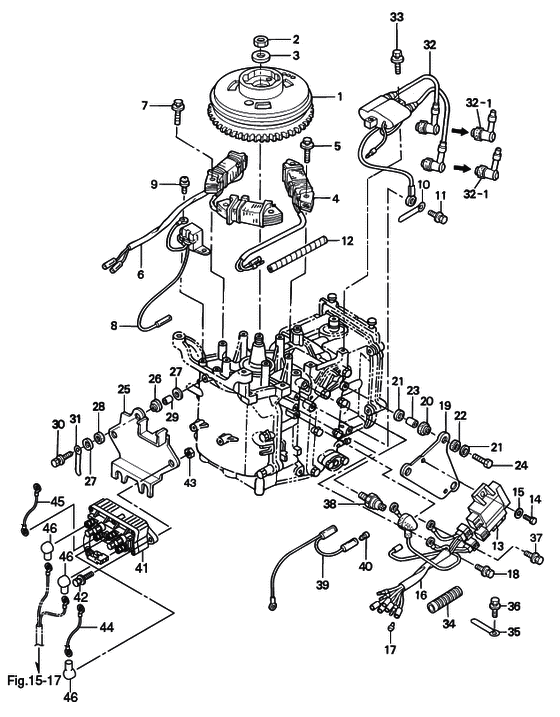

Magneto Diagram Tohatsu MFS8A3
- Year
- 2009
- Model
- MFS8A3
- Year
- 2009
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AA-06091-0 Flywheel W/gear# 031096XD~ / FF-51 WITH RING GEAR |
3AA-06091-0 |
from US $304.13 |
||
|
2
|
2
369-00132-0 Nut |
369-00132-0 |
from US $1.30 |
||
|
3
|
3
940121-1200 Washer |
940121-1200 |
from US $0.58 |
||
|
4
|
4
3AA-06021-0 Exciter Coil# 031096XD~ |
3AA-06021-0 |
from US $52.27 |
||
|
5
|
5
910103-5630 Bolt |
910103-5630 |
from US $1.30 |
||
|
6
|
6
3AA-06023-0 Alternator Assy# 031096XD~ / FOR EF/EFT & EP/EPT |
3AA-06023-0 |
from US $69.64 |
||
|
7
|
7
910103-5630 BoltFOR EF/EFT & EP/EPT |
910103-5630 |
from US $1.30 |
||
|
8
|
8
3V1-06071-0 Pulsar Coil |
3V1-06071-0 |
from US $32.53 |
||
|
9
|
9
921503-0512 Screw |
921503-0512 |
from US $0.86 |
||
|
10
|
10
309-06972-0 ClampALTERNATOR & EXCITER CABLE |
309-06972-0 |
US $2.34 |
||
| replacement | |||||
|
10
|
10
3PR-06972-0 ClampALTERNATOR & EXCITER CABLE |
3PR-06972-0 |
from US $1.44 |
||
|
11
|
11
910103-5616 Bolt |
910103-5616 |
from US $1.15 |
||
| replacement | |||||
|
11
|
11
9101E3-5616 Bolt |
9101E3-5616 |
from US $1.58 |
||
|
12
|
12
3V1-76148-0 Spiral Tube ProtectorFOR EF/EFT & EP/EPT / ALTERNATOR & EXCITER CABLE |
3V1-76148-0 |
from US $4.90 |
||
|
13
|
13
3AA-06060-0 Cd Unit# 031096XD~ |
3AA-06060-0 |
from US $179.57 |
||
|
14
|
14
3V1-60108-0 Pre-Coated BoltOLD PART NO. 3V1-06864-0 |
3V1-60108-0 |
from US $1.58 |
||
|
15
|
15
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
16
|
16
3AA-06167-0 Cd Unit Cord Assy# 031096XD~ |
3AA-06167-0 |
from US $89.86 |
||
|
17
|
17
3A3-76037-0 Cable Terminal PlugLIGHT GREEN & WHITE CABLE |
3A3-76037-0 |
from US $1.15 |
||
| replacement | |||||
|
17
|
17
3T5-76037-0 Cable Terminal PlugLIGHT GREEN & WHITE CABLE |
3T5-76037-0 |
from US $1.66 |
||
|
18
|
18
910103-5612 BoltGROUND CABLE |
910103-5612 |
from US $1.12 |
||
| replacement | |||||
|
18
|
18
9101E3-5612 BoltGROUND CABLE |
9101E3-5612 |
from US $1.52 |
||
|
19
|
19
3V1-06061-1 Cd Unit BracketOR 3V1-06061-0 |
3V1-06061-1 |
from US $10.94 |
||
| replacement | |||||
|
19
|
19
3V1-06061-0 C.d. Unit BracketOR 3V1-06061-0 |
3V1-06061-0 |
from US $11.95 |
||
|
20
|
20
3T5-06920-0 Rubber Mount |
3T5-06920-0 |
from US $1.14 |
||
|
21
|
21
3R0-66308-0 Washer |
3R0-66308-0 |
from US $1.58 |
||
|
22
|
22
3B7-06305-0 Rubber Mount |
3B7-06305-0 |
from US $0.71 |
||
|
23
|
23
3A0-76079-0
Collar
|
3A0-76079-0 |
— | ||
| replacement | |||||
|
23
|
23
3H6-76079-1 Collar |
3H6-76079-1 |
from US $1.15 |
||
|
24
|
24
9101E3-0625 BoltOR 910113-0625 |
9101E3-0625 |
from US $1.15 |
||
| replacement | |||||
|
24
|
24
910103-0625 BoltOR 910113-0625 |
910103-0625 |
from US $1.12 |
||
|
25
|
25
3V1-06900-1 Electric Bracket AssyOR 3V1-06900-0 / FOR EF/EFT & EP/EPT |
3V1-06900-1 |
from US $24.48 |
||
| replacement | |||||
|
25
|
25
3V1-06900-0 Electric BracketOR 3V1-06900-0 / FOR EF/EFT & EP/EPT |
3V1-06900-0 |
from US $25.94 |
||
|
26
|
26
3T5-06920-0 Rubber MountFOR EF/EFT & EP/EPT |
3T5-06920-0 |
from US $1.14 |
||
|
27
|
27
3R0-66308-0 WasherFOR EF/EFT & EP/EPT |
3R0-66308-0 |
from US $1.58 |
||
|
28
|
28
3B7-06305-0 Rubber MountFOR EF/EFT & EP/EPT |
3B7-06305-0 |
from US $0.71 |
||
|
29
|
29
3A0-76079-0
Collar
FOR EF/EFT & EP/EPT |
3A0-76079-0 |
— | ||
| replacement | |||||
|
29
|
29
3H6-76079-1 CollarFOR EF/EFT & EP/EPT |
3H6-76079-1 |
from US $1.15 |
||
|
30
|
30
9101E3-0620 BoltOR 910113-0620 / FOR EF/EFT & EP/EPT |
9101E3-0620 |
from US $1.01 |
||
| replacement | |||||
|
30
|
30
910103-0620 BoltOR 910113-0620 / FOR EF/EFT & EP/EPT |
910103-0620 |
from US $1.01 |
||
|
31
|
31
3T4-06972-1 ClampOR 3T4-06972-0 / FOR EP/EPT |
3T4-06972-1 |
from US $1.72 |
||
| replacement | |||||
|
31
|
31
3T4-06972-0 Clamp 6.5-87POR 3T4-06972-0 / FOR EP/EPT |
3T4-06972-0 |
from US $1.72 |
||
|
32
|
32
3V1-06040-0 Ignition Coil W/r-Cap |
3V1-06040-0 |
from US $59.63 |
||
|
32-1
|
32-1
3H6-06999-0 Plug Cap W/resistance |
3H6-06999-0 |
from US $27.79 |
||
|
33
|
33
910103-5625 Bolt |
910103-5625 |
from US $1.30 |
||
| replacement | |||||
|
33
|
33
9101E3-5625 Bolt |
9101E3-5625 |
from US $1.73 |
||
|
34
|
34
3V1-06133-0 Protectorø34-70 / FOR MF |
3V1-06133-0 |
from US $3.98 |
||
|
35
|
35
3T4-06972-1 ClampOR 3T4-06972-0 / FOR MF |
3T4-06972-1 |
from US $1.72 |
||
| replacement | |||||
|
35
|
35
3T4-06972-0 Clamp 6.5-87POR 3T4-06972-0 / FOR MF |
3T4-06972-0 |
from US $1.72 |
||
|
36
|
36
9101E3-5612 BoltOR 910113-5612 / FOR MF |
9101E3-5612 |
from US $1.52 |
||
|
37
|
37
910103-5612 BoltFOR MF |
910103-5612 |
from US $1.12 |
||
| replacement | |||||
|
37
|
37
9101E3-5612 BoltFOR MF |
9101E3-5612 |
from US $1.52 |
||
|
38
|
38
3H6-07611-0 Oil Pressure Switch |
3H6-07611-0 |
US $19.86 |
||
| replacement | |||||
|
38
|
38
3H6-07611-1 Oil Pressure Switch |
3H6-07611-1 |
US $23.86 |
||
|
39
|
39
3V5-72678-0 Separate Cord (Blk) |
3V5-72678-0 |
from US $7.72 |
||
|
40
|
40
3A3-76037-0 Cable Terminal Plug |
3A3-76037-0 |
from US $1.15 |
||
| replacement | |||||
|
40
|
40
3T5-76037-0 Cable Terminal Plug |
3T5-76037-0 |
from US $1.66 |
||
|
41
|
41
3Z0-72580-0 Ptt Solenoid Switch (A)FOR EFT/EPT |
3Z0-72580-0 |
from US $139.54 |
||
|
42
|
42
9101E3-5620 BoltOR 910103-5620 / FOR EFT/EPT |
9101E3-5620 |
from US $1.76 |
||
|
43
|
43
9301E3-0600 NutOR 930103-0600 / FOR EFT/EPT |
9301E3-0600 |
from US $0.72 |
||
| replacements | |||||
|
43
|
43
930103-0600 NutOR 930103-0600 / FOR EFT/EPT |
930103-0600 |
from US $1.01 |
||
|
43
|
43
930113-0600
Nut
OR 930103-0600 / FOR EFT/EPT |
930113-0600 |
— | ||
|
44
|
44
3C8-72582-0 Solenoid Switch Cord (A)FOR EFT/EPT |
3C8-72582-0 |
from US $3.17 |
||
|
45
|
45
3C8-72583-1 Solenoid Switch Cord (B)FOR EFT/EPT |
3C8-72583-1 |
from US $4.03 |
||
| replacement | |||||
|
45
|
45
3C8-72583-0 Cord B Solenoid SwitchFOR EFT/EPT |
3C8-72583-0 |
from US $3.89 |
||
|
46
|
46
3Y1-76145-0 Terminal CapFOR EFT/EPT |
3Y1-76145-0 |
from US $2.48 |
||
