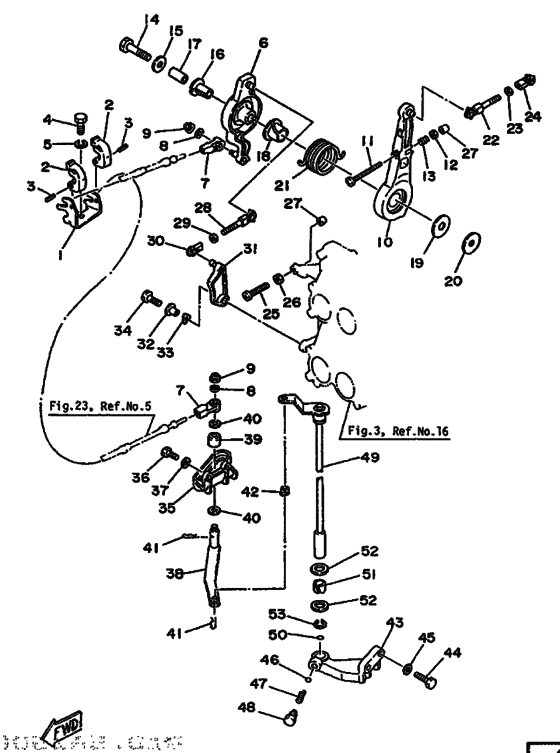

Control Diagram Yamaha 115 ETOL/XL
- Year
- 1987
- Model
- 115A
- Model code
- 6E5
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E5-48531-00-00 Bracket, Remote Control 1 |
6E5-48531-00-00 |
from US $15.44 |
||
|
2
|
2
6E5-48538-00-00 Clamp, Cable |
6E5-48538-00-00 |
from US $9.78 |
||
|
3
|
3
97313-30012-00
Bolt
|
97313-30012-00 |
— | ||
|
4
|
4
973-13080-20-00
Bolt (661)
|
973-13080-20-00 |
— | ||
| replacements | |||||
|
4
|
4
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
4
|
4
97013-08020-00 Bolt |
97013-08020-00 |
from US $1.64 |
||
|
5
|
5
92903-08100-00 Washer, Spring |
92903-08100-00 |
from US $1.63 |
||
| replacement | |||||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
6E5-41632-01-94 Lever, Mag.controlmagneto Control |
6E5-41632-01-94 |
US $43.24 |
||
| replacement | |||||
|
6
|
6
6E5-41632-02-1S Lever, Magneto Control |
6E5-41632-02-1S |
from US $34.63 |
||
|
7
|
7
6E5-48344-00-00 Cable End, Remote Control |
6E5-48344-00-00 |
from US $4.04 |
||
|
8
|
8
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
|
10
|
10
6E5-41631-01-94 Lever, Magneto Control |
6E5-41631-01-94 |
US $41.03 |
||
| replacement | |||||
|
10
|
10
6E5-41631-01-1S Lever, Magneto Control |
6E5-41631-01-1S |
from US $34.94 |
||
|
11
|
11
90157-06014-00 Screw, Pan Head |
90157-06014-00 |
US $3.68 |
||
| replacement | |||||
|
11
|
11
90157-06M12-00 Screw, Pan Head |
90157-06M12-00 |
from US $3.68 |
||
|
12
|
12
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
13
|
13
90501-16M12-00 Spring, Compression |
90501-16M12-00 |
from US $2.41 |
||
|
14
|
14
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
14
|
14
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
15
|
15
90201-08M23-00 Washer, Plate |
90201-08M23-00 |
US $5.67 |
||
| replacement | |||||
|
15
|
15
90201-08M54-00 Washer, Plate |
90201-08M54-00 |
from US $2.70 |
||
|
16
|
16
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
17
|
17
90387-08M16-00 Collar |
90387-08M16-00 |
from US $2.36 |
||
| replacement | |||||
|
17
|
17
90387-084J8-00 Collar |
90387-084J8-00 |
US $4.77 |
||
|
18
|
18
90386-22M13-00 Bush |
90386-22M13-00 |
from US $4.04 |
||
|
19
|
19
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
20
|
20
90201-08M13-00 Washer, Plate |
90201-08M13-00 |
from US $3.54 |
||
|
21
|
21
90508-29M12-00 Spring, Torsion |
90508-29M12-00 |
from US $17.71 |
||
|
22
|
22
6E5-41636-01-00 Rod, Magneto Control |
6E5-41636-01-00 |
from US $8.64 |
||
|
23
|
23
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
24
|
24
662-41237-01-00 Joint, Link |
662-41237-01-00 |
US $5.82 |
||
| replacement | |||||
|
24
|
24
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
25
|
25
90157-06M00-00 Screw, Pan Head |
90157-06M00-00 |
US $2.69 |
||
| replacement | |||||
|
25
|
25
90157-06M13-00 Screw, Pan Head |
90157-06M13-00 |
from US $2.69 |
||
|
26
|
26
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
27
|
27
688-44194-00-00 Cap |
688-44194-00-00 |
from US $5.95 |
||
|
29
|
29
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
30
|
30
662-41237-01-00 Joint, Link |
662-41237-01-00 |
US $5.82 |
||
| replacement | |||||
|
30
|
30
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
31
|
31
6E5-41213-00-00 Cam, Accel |
6E5-41213-00-00 |
US $14.03 |
||
| replacement | |||||
|
31
|
31
6E5-41213-01-00 Cam, Accel |
6E5-41213-01-00 |
from US $14.03 |
||
|
32
|
32
90387-06M29-00 Collar |
90387-06M29-00 |
from US $5.81 |
||
|
33
|
33
90206-10M04-00 Washer, Wave |
90206-10M04-00 |
from US $1.84 |
||
|
34
|
34
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
34
|
34
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
35
|
35
6E5-44117-00-EJ Bracket |
6E5-44117-00-EJ |
US $52.92 |
||
| replacement | |||||
|
35
|
35
6E5-44117-00-94 Bracket |
6E5-44117-00-94 |
from US $44.44 |
||
|
36
|
36
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
36
|
36
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
37
|
37
92903-06020-00
New Genuine Part
|
92903-06020-00 |
— | ||
|
38
|
38
6E5-44121-00-00
Lever, Shift Rod
|
6E5-44121-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99039-66-00 Lever, Shift Rod |
999-99039-66-00 |
US $20.75 |
||
|
39
|
39
6E5-44122-00-00 Bushing, Shift Rod Lever |
6E5-44122-00-00 |
from US $7.93 |
||
|
40
|
40
90202-08M20-00 Washer, Plate |
90202-08M20-00 |
from US $2.55 |
||
|
41
|
41
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
42
|
42
90386-06M12-00 Bush |
90386-06M12-00 |
from US $2.69 |
||
|
43
|
43
6E5-44118-00-EJ Bracket |
6E5-44118-00-EJ |
US $42.55 |
||
| replacement | |||||
|
43
|
43
6E5-44118-01-94 Bracket |
6E5-44118-01-94 |
from US $31.98 |
||
|
44
|
44
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
44
|
44
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
44
|
44
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
44
|
44
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
45
|
45
92903-08600-00 Washer, Plate |
92903-08600-00 |
from US $1.63 |
||
| replacements | |||||
|
45
|
45
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
45
|
45
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
46
|
46
93501-04M02-00 Ball |
93501-04M02-00 |
from US $1.70 |
||
|
47
|
47
90501-12082-00 Spring, Compression |
90501-12082-00 |
from US $2.02 |
||
|
48
|
48
648-42715-00-00 Bushing |
648-42715-00-00 |
from US $7.08 |
||
|
49
|
49
6E5-44120-01-00
Handle Gear Shift Assy
UR |
6E5-44120-01-00 |
— | ||
| replacements | |||||
|
49
|
49
6E5-44120-04-00 Handle Gear Shift AssyUR |
6E5-44120-04-00 |
US $143.69 |
||
|
49
|
49
6E5-44120-05-00 HANDLE GEAR SHIFT ASSYUR |
6E5-44120-05-00 |
from US $97.96 |
||
|
49
|
49
6E5-44120-21-00
Handle Gear Shift Assy
UR |
6E5-44120-21-00 |
— | ||
| replacements | |||||
|
49
|
49
6E5-44120-24-00 Handle Gear Shift AssyUR |
6E5-44120-24-00 |
US $79.44 |
||
|
49
|
49
6E5-44120-25-00 HANDLE GEAR SHIFT ASSYUR |
6E5-44120-25-00 |
from US $79.44 |
||
|
50
|
50
932-10091-65-00
O-Ring
|
932-10091-65-00 |
— | ||
| replacements | |||||
|
50
|
50
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
50
|
50
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
|
51
|
51
90386-16046-00 BushBushing |
90386-16046-00 |
US $1.84 |
||
| replacement | |||||
|
51
|
51
90386-16M66-00 Bush |
90386-16M66-00 |
from US $1.94 |
||
|
52
|
52
90202-16061-00 Washer, Plate |
90202-16061-00 |
from US $2.69 |
||
|
53
|
53
93410-16006-00 Circlip |
93410-16006-00 |
from US $1.42 |
||
| replacement | |||||
|
53
|
53
99009-16400-00 Circlip(13T) |
99009-16400-00 |
from US $1.56 |
||
