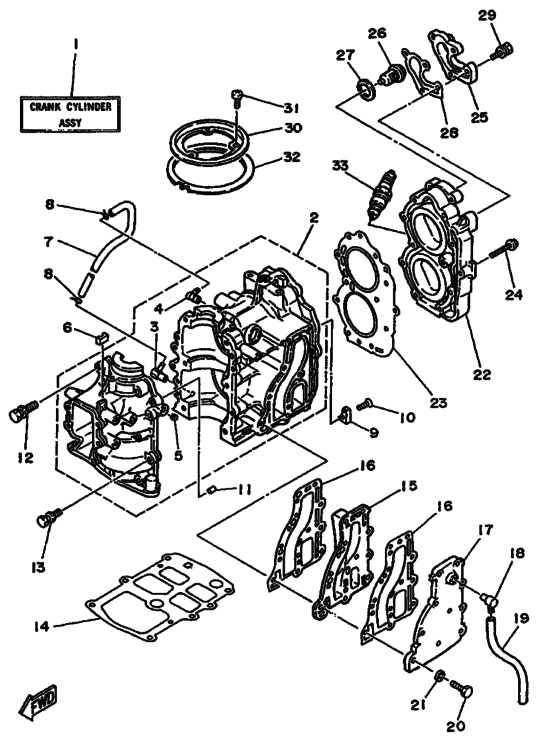

Cylinder & crankcase Diagram Yamaha 15 EHS/L
- Year
- 1995
- Model
- 15D
- Model code
- 6E8
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E7-W0090-04-4D
Crank Cylinder Assembly (Ref. #2~32, & Crankshaft - Pi)
|
6E7-W0090-04-4D |
— | ||
| replacements | |||||
|
1
|
1
6E7-W0090-04-1S
Crank Cylinder Assy
|
6E7-W0090-04-1S |
— | ||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6E7-15100-00-94 Crankcase Assembly |
6E7-15100-00-94 |
US $1,092.10 |
||
| replacement | |||||
|
2
|
2
6E7-15100-00-00 Crankcase Assy |
6E7-15100-00-00 |
from US $1,062.11 |
||
|
3
|
3
650-11370-00-00
Check Valve Assy
|
650-11370-00-00 |
— | ||
| replacement | |||||
|
3
|
3
650-11370-01-00 Check Valve Assy |
650-11370-01-00 |
from US $14.22 |
||
|
4
|
4
650-14485-02-00 Pipe, Joint |
650-14485-02-00 |
US $7.37 |
||
| replacement | |||||
|
4
|
4
650-14485-03-00 Pipe, Joint |
650-14485-03-00 |
from US $7.37 |
||
|
5
|
5
624-11379-00-00 Valve, Check |
624-11379-00-00 |
from US $3.32 |
||
|
6
|
6
682-41615-00-00
Stopper, Magneto Base
|
682-41615-00-00 |
— | ||
|
7
|
7
90445-07M08-00 Hose (L220) |
90445-07M08-00 |
US $4.25 |
||
| replacement | |||||
|
7
|
7
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
8
|
8
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
9
|
9
682-11325-00-00 Anode |
682-11325-00-00 |
from US $8.50 |
||
|
10
|
10
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
11
|
11
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
12
|
12
90119-08M17-00
Bolt, With Washer
|
90119-08M17-00 |
— | ||
|
13
|
13
90119-06M13-00 Bolt, With Washer |
90119-06M13-00 |
from US $4.39 |
||
|
14
|
14
682-11351-A0-00 Gasket, Cylinder |
682-11351-A0-00 |
from US $22.99 |
||
|
15
|
15
682-41111-00-9M Inner Cover, Exhaust |
682-41111-00-9M |
US $61.62 |
||
| replacement | |||||
|
15
|
15
682-41111-00-1S Inner Cover, Exhaust |
682-41111-00-1S |
from US $49.10 |
||
|
16
|
16
682-41112-A1-00 Gasket, Exhaust Inner Cover |
682-41112-A1-00 |
from US $10.69 |
||
|
17
|
17
682-41113-00-9M Outer Cover, Exhaust |
682-41113-00-9M |
US $30.11 |
||
| replacement | |||||
|
17
|
17
682-41113-00-1S Outer Cover, Exhaust |
682-41113-00-1S |
US $30.11 |
||
|
18
|
18
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.28 |
||
|
19
|
19
90445-09095-00 Hose (L215) |
90445-09095-00 |
from US $3.12 |
||
| replacement | |||||
|
19
|
19
90445-09010-00
Hose (L260)
|
90445-09010-00 |
— | ||
|
20
|
20
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
20
|
20
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
6E7-11111-00-94 Head, Cylinder 1 |
6E7-11111-00-94 |
US $221.06 |
||
| replacement | |||||
|
22
|
22
6E7-11111-01-1S Head, Cylinder 1 |
6E7-11111-01-1S |
from US $156.53 |
||
|
23
|
23
6E7-11181-A0-00 Gasket, Cylinder Head 1 |
6E7-11181-A0-00 |
US $68.94 |
||
| replacement | |||||
|
23
|
23
6E7-11181-A2-00 Gasket, Cylinder Head 1 |
6E7-11181-A2-00 |
from US $42.53 |
||
|
24
|
24
90105-07M05-00 Bolt, Flange |
90105-07M05-00 |
from US $1.66 |
||
|
25
|
25
682-12413-00-9M Cover, Thermostat |
682-12413-00-9M |
US $31.45 |
||
| replacement | |||||
|
25
|
25
682-12413-00-1S Cover, Thermostat |
682-12413-00-1S |
from US $17.01 |
||
|
26
|
26
6F5-12411-02-00 Thermostat |
6F5-12411-02-00 |
US $50.01 |
||
| replacement | |||||
|
26
|
26
6F5-12411-03-00 Thermostat |
6F5-12411-03-00 |
from US $50.01 |
||
|
27
|
27
90201-21567-00 Washer, Plate |
90201-21567-00 |
from US $6.52 |
||
|
28
|
28
682-12414-A1-00 Gasket, Cover |
682-12414-A1-00 |
from US $2.66 |
||
|
29
|
29
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
29
|
29
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
29
|
29
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
30
|
30
682-41612-01-00
Retainer, Magneto Base
|
682-41612-01-00 |
— | ||
|
31
|
31
97890-06010-00 Screw, Pan Head |
97890-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
32
|
32
682-41611-00-00 Retainer, Magneto Base |
682-41611-00-00 |
US $21.88 |
||
|
33
|
33
947-02002-71-00
Plug, Spark (Ngk Br7Hs-10)
|
947-02002-71-00 |
— | ||
| replacement | |||||
|
33
|
33
BR7-HS000-00-00 Plug, Spark (10 in pack) |
BR7-HS000-00-00 |
US $19.60 |
||
