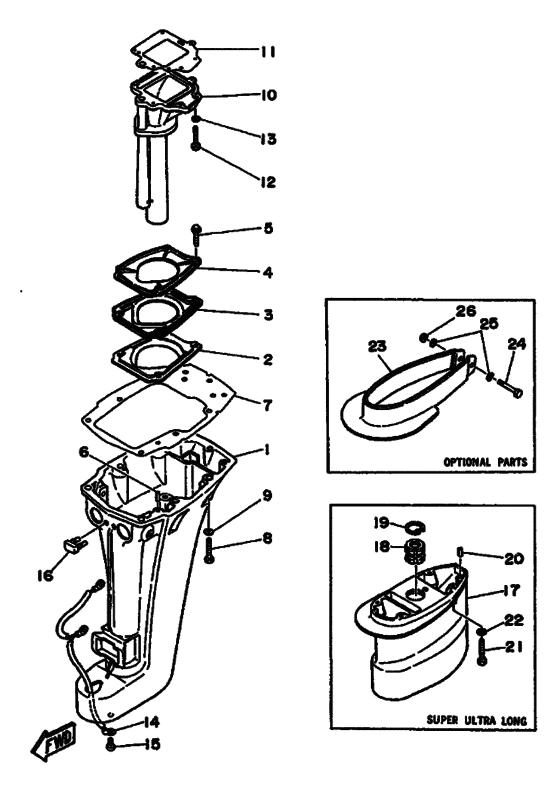

Upper casing Diagram Yamaha 15 WHS/L
- Year
- 1993
- Model
- 15D
- Model code
- 6E8
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-45111-04-EJ
Casing, Upper
UR |
682-45111-04-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
1
|
1
682-45111-14-EJ
Casing, Upper
UR |
682-45111-14-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
2
|
2
682-45126-00-5B
Plate, Seal Damper
|
682-45126-00-5B |
— | ||
| replacement | |||||
|
2
|
2
682-45126-00-CA
Plate, Seal Damper
|
682-45126-00-CA |
— | ||
|
3
|
3
682-45127-00-00 Seal |
682-45127-00-00 |
from US $13.46 |
||
|
4
|
4
682-41116-00-5B Protector |
682-41116-00-5B |
US $25.22 |
||
| replacement | |||||
|
4
|
4
682-41116-00-CA Protector |
682-41116-00-CA |
from US $25.22 |
||
|
5
|
5
90105-06M01-00 Bolt, Flange |
90105-06M01-00 |
from US $3.02 |
||
|
6
|
6
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
7
|
7
682-45113-A1-00 Gasket, Upper Casing |
682-45113-A1-00 |
US $19.13 |
||
| replacement | |||||
|
7
|
7
682-45113-A3-00 GASKET, UPPER CASING |
682-45113-A3-00 |
from US $18.74 |
||
|
8
|
8
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
8
|
8
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.24 |
||
|
9
|
9
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
10
|
10
682-41131-01-5B Manifold, Ext. 1 |
682-41131-01-5B |
from US $54.88 |
||
|
11
|
11
682-41133-A0-00 Gasket, Exhaust Manifold 1 |
682-41133-A0-00 |
from US $10.26 |
||
|
12
|
12
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6E7-82127-00-00 Wire, Lead 2 |
6E7-82127-00-00 |
from US $24.23 |
||
|
15
|
15
90157-06M06-00 Screw, Pan Head |
90157-06M06-00 |
from US $1.98 |
||
|
16
|
16
682-44532-00-00 Stopper, Upper Mount |
682-44532-00-00 |
US $4.96 |
||
|
17
|
17
682-45211-30-EJ
Extension
|
682-45211-30-EJ |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
682-45318-00-00 Bushing, Drive Shaft |
682-45318-00-00 |
from US $37.44 |
||
|
19
|
19
93420-30042-00 Circlip |
93420-30042-00 |
from US $2.29 |
||
|
20
|
20
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
21
|
21
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
21
|
21
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
21
|
21
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.30 |
||
|
22
|
22
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
23
|
23
682-45158-00-EJ
Plate, Splash
AP |
682-45158-00-EJ |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
24
|
24
973-95060-40-00
Bolt (682)
AP |
973-95060-40-00 |
— | ||
| replacement | |||||
|
24
|
24
97095-06040-00 BoltAP |
97095-06040-00 |
from US $1.28 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646)AP |
929-90066-00-00 |
from US $1.07 |
||
|
26
|
26
953-80067-00-00 NutAP |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
26
|
26
9538R-06700-00 NutAP |
9538R-06700-00 |
from US $1.42 |
||
