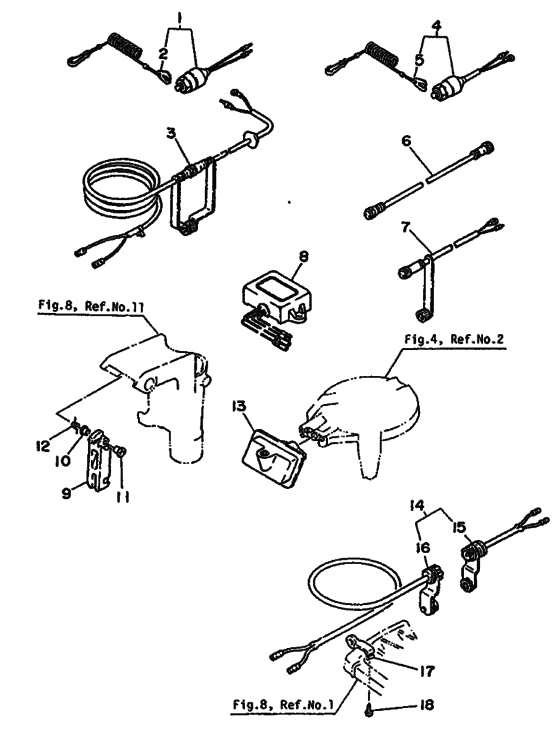

Optional parts 1 Diagram Yamaha 15 WHS/L
- Year
- 1987
- Model
- 15D
- Model code
- 6E8
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-82575-12-00 Engine Stop Switch Assy |
689-82575-12-00 |
US $108.18 |
||
| replacement | |||||
|
1
|
1
699-82575-09-00 Engine Stop Switch Assy |
699-82575-09-00 |
from US $108.18 |
||
|
2
|
2
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
3
|
3
689-82553-20-00 Extension, Wire Lead |
689-82553-20-00 |
US $69.63 |
||
|
4
|
4
6E0-82575-01-00
Engine Stop Switch Assy
|
6E0-82575-01-00 |
— | ||
|
5
|
5
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
6
|
6
689-82553-10-00 Extension, Wire Lead |
689-82553-10-00 |
from US $46.78 |
||
|
7
|
7
689-84340-00-00 Socket Cord Assy 1 |
689-84340-00-00 |
from US $27.34 |
||
|
8
|
8
663-81910-10-00 Voltage Regulator Assy |
663-81910-10-00 |
US $296.89 |
||
|
9
|
9
682-42731-01-EJ
Carrying Handle
|
682-42731-01-EJ |
— | ||
|
10
|
10
90386-10025-00 Bush |
90386-10025-00 |
from US $3.54 |
||
|
11
|
11
90386-10045-00 Bush |
90386-10045-00 |
from US $4.11 |
||
|
12
|
12
90508-16M04-00
Spring, Torsion
|
90508-16M04-00 |
— | ||
|
13
|
13
6E7-15758-80-EJ
Guide, Rope
|
6E7-15758-80-EJ |
— | ||
|
14
|
14
682-84380-00-00 Concent 2P2P |
682-84380-00-00 |
from US $64.52 |
||
|
15
|
15
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
|
16
|
16
682-84382-00-00 2P Concemt |
682-84382-00-00 |
from US $61.34 |
||
|
17
|
17
682-84387-00-00 Holder |
682-84387-00-00 |
from US $11.54 |
||
|
18
|
18
97780-50512-00 Screw, Panhead Tapping (682) |
97780-50512-00 |
US $1.98 |
||
| replacement | |||||
|
18
|
18
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
