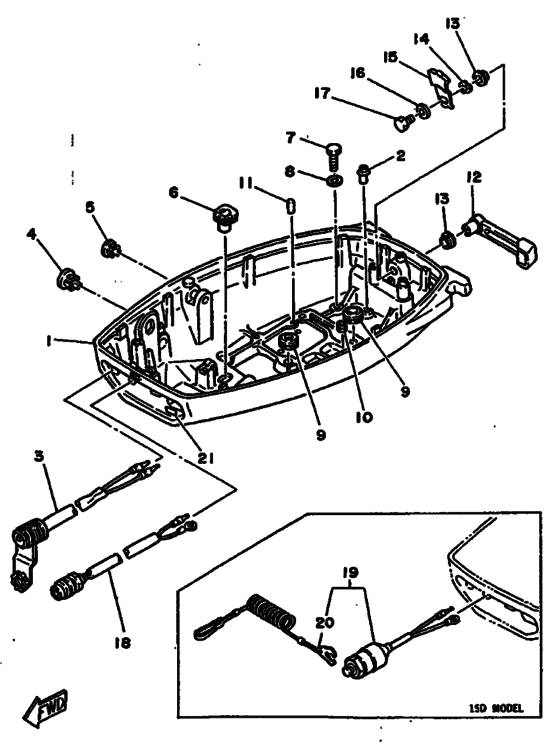

Bottom cowling Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-42711-02-EJ
Cowling, Bottom
|
682-42711-02-EJ |
— | ||
| replacement | |||||
|
1
|
1
682-42711-09-EJ
Cowling, Bottom
|
682-42711-09-EJ |
— | ||
|
2
|
2
650-24378-00-00
Pipe, Joint 4
|
650-24378-00-00 |
— | ||
| replacements | |||||
|
2
|
2
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
2
|
2
6EE-F4377-00-00 Pipe, Joint 2 |
6EE-F4377-00-00 |
from US $3.33 |
||
|
3
|
3
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
|
4
|
4
682-42725-01-00
Grommet
|
682-42725-01-00 |
— | ||
|
5
|
5
682-42726-00-00 Grommet |
682-42726-00-00 |
from US $4.82 |
||
|
6
|
6
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
9
|
9
682-44367-00-00 Damper, Water Seal 3 |
682-44367-00-00 |
from US $8.64 |
||
|
10
|
10
682-44366-00-00 Damper, Water Seal 2 |
682-44366-00-00 |
from US $8.08 |
||
|
12
|
12
682-42815-00-EJ
Lever, Clamp
|
682-42815-00-EJ |
— | ||
|
15
|
15
6E7-42816-00-00 Lever, Clamp |
6E7-42816-00-00 |
from US $9.35 |
||
|
18
|
18
6A0-82550-01-00 Engine Stop Switch Assembly |
6A0-82550-01-00 |
from US $16.88 |
||
|
19
|
19
6E9-82575-00-00 Engine Stop Switch Assy |
6E9-82575-00-00 |
US $50.98 |
||
| replacement | |||||
|
19
|
19
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $50.98 |
||
|
20
|
20
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
21
|
21
6A1-42792-01-00
Mark (100:1)
|
6A1-42792-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
