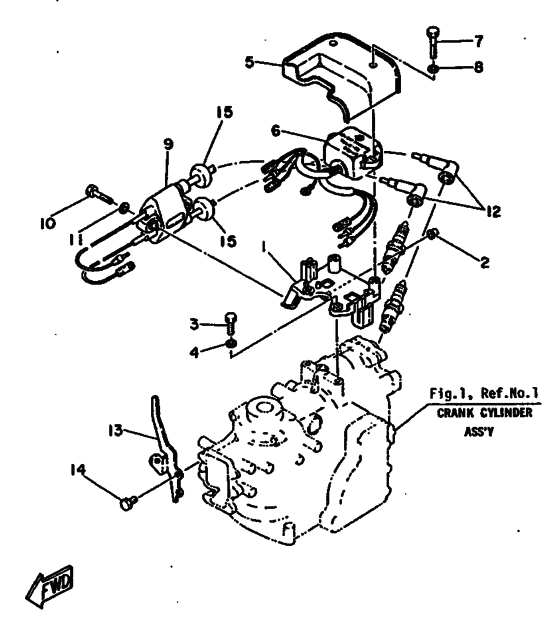

Electric parts Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E7-85542-00-94
Bracket
|
6E7-85542-00-94 |
— | ||
|
2
|
2
6E7-82317-00-00 Damper, Ignition Coil |
6E7-82317-00-00 |
from US $5.81 |
||
|
3
|
3
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
4
|
4
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
6E7-81916-00-00
Cover, Terminal
|
6E7-81916-00-00 |
— | ||
|
6
|
6
695-85540-10-00
C.d.i. Unit Assy
|
695-85540-10-00 |
— | ||
| replacement | |||||
|
6
|
6
695-85540-12-00 C.d.i. Unit Assy |
695-85540-12-00 |
from US $323.30 |
||
|
7
|
7
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
7
|
7
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
8
|
8
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
9
|
9
695-85570-10-00 Ignition Coil Assy |
695-85570-10-00 |
US $356.45 |
||
| replacement | |||||
|
9
|
9
680-85570-09-00 Ignition Coil Assy |
680-85570-09-00 |
from US $178.20 |
||
|
10
|
10
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
11
|
11
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
663-82370-01-00 Plug Cap AssyUR |
663-82370-01-00 |
from US $7.62 |
||
|
12
|
12
6E3-82370-20-00
Plug Cap Assy
UR DUAL THRUST PROPELLER |
6E3-82370-20-00 |
— | ||
| replacement | |||||
|
12
|
12
6E3-82370-21-00 Plug Cap AssyUR DUAL THRUST PROPELLER |
6E3-82370-21-00 |
from US $15.87 |
||
|
13
|
13
682-81332-02-00
Plate, Timing
|
682-81332-02-00 |
— | ||
|
14
|
14
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
14
|
14
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
14
|
14
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
14
|
14
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
14
|
14
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
14
|
14
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
15
|
15
90480-25161-00 Grommet(9.9DPE/15DPE MODEL) |
90480-25161-00 |
from US $2.41 |
||
