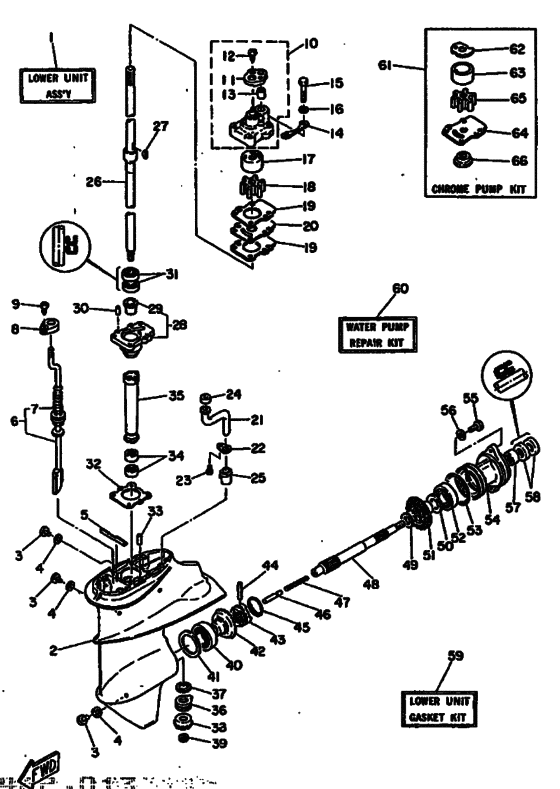

Lower casing & drive 1 Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E7-45300-00-EJ
Lower Unit Assy
UR |
6E7-45300-00-EJ |
— | ||
| replacements | |||||
|
1
|
1
6E7-45300-04-EJ
Lower Unit Assy
UR |
6E7-45300-04-EJ |
— | ||
|
1
|
1
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
1
|
1
6E7-45300-10-EJ
Lower Unit Assy
UR NOT SHOWN |
6E7-45300-10-EJ |
— | ||
| replacements | |||||
|
1
|
1
6E7-45300-14-EJ
Lower Unit Assy
UR NOT SHOWN |
6E7-45300-14-EJ |
— | ||
|
1
|
1
999-99999-99-00
Not Available
UR NOT SHOWN |
999-99999-99-00 |
— | ||
|
2
|
2
6E7-45311-00-EJ
Casing, Lower
|
6E7-45311-00-EJ |
— | ||
| replacement | |||||
|
2
|
2
999-99023-17-00
Casing, Lower
|
999-99023-17-00 |
— | ||
|
3
|
3
903-40080-14-00
Plug, Straight Screw
|
903-40080-14-00 |
— | ||
| replacement | |||||
|
3
|
3
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
3
|
3
682-44150-30-00
Shift Cam Assy
UR NOT SHOWN |
682-44150-30-00 |
— | ||
|
4
|
4
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
5
|
5
682-45376-01-00 Guide, Seal Damper |
682-45376-01-00 |
from US $5.67 |
||
|
6
|
6
682-44150-00-00 Shift Cam AssemblyUR |
682-44150-00-00 |
from US $97.81 |
||
|
6
|
6
682-44150-10-00
Shift Cam Assembly
UR NOT SHOWN |
682-44150-10-00 |
— | ||
|
7
|
7
682-44147-00-00 Boot, Shift Rod |
682-44147-00-00 |
from US $5.96 |
||
|
8
|
8
682-44176-00-00 Bracket |
682-44176-00-00 |
from US $6.23 |
||
|
9
|
9
97780-50510-00 Screw, Tapping |
97780-50510-00 |
from US $2.27 |
||
| replacement | |||||
|
9
|
9
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
|
10
|
10
682-44300-01-00 Housing, Water Pump |
682-44300-01-00 |
US $107.90 |
||
|
11
|
11
682-44312-00-00 Cover, Water Pump Housing |
682-44312-00-00 |
from US $4.39 |
||
|
12
|
12
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
13
|
13
682-44365-00-00 Damper, Water Seal 1 |
682-44365-00-00 |
US $3.54 |
||
|
14
|
14
682-44328-00-00 Plate |
682-44328-00-00 |
from US $3.97 |
||
|
15
|
15
973-95060-40-00
Bolt (682)
|
973-95060-40-00 |
— | ||
| replacement | |||||
|
15
|
15
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
16
|
16
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
17
|
17
682-44322-00-00 Insert, Cartridge |
682-44322-00-00 |
from US $9.60 |
||
|
18
|
18
682-44352-00-00 Impeller |
682-44352-00-00 |
US $23.52 |
||
| replacement | |||||
|
18
|
18
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $21.50 |
||
|
19
|
19
682-44315-00-00 Gasket, Water Pump |
682-44315-00-00 |
US $3.97 |
||
| replacement | |||||
|
19
|
19
682-44315-A0-00 Gasket, Water Pump |
682-44315-A0-00 |
from US $2 |
||
|
20
|
20
682-44323-00-00 Outer Plate, Cartridge |
682-44323-00-00 |
from US $4.64 |
||
|
21
|
21
683-44362-01-00 Tube, Water 2 |
683-44362-01-00 |
from US $17.71 |
||
|
22
|
22
683-44373-00-00 Set Plate, Water Tube |
683-44373-00-00 |
from US $5.67 |
||
|
23
|
23
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
23
|
23
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
24
|
24
683-44365-01-00 Damper, Water Seal 1 |
683-44365-01-00 |
US $3.54 |
||
|
25
|
25
6E7-44366-00-00 Damper, Water Seal 2 |
6E7-44366-00-00 |
US $4.68 |
||
|
26
|
26
6E7-45501-00-00 Drive Shaft CompUR |
6E7-45501-00-00 |
US $542.87 |
||
| replacement | |||||
|
26
|
26
6E7-45501-01-00 Drive Shaft CompUR |
6E7-45501-01-00 |
from US $393.16 |
||
|
26
|
26
6E7-45501-10-00 Drive Shaft CompUR NOT SHOWN |
6E7-45501-10-00 |
US $542.87 |
||
| replacement | |||||
|
26
|
26
6E7-45501-11-00 Drive Shaft CompUR NOT SHOWN |
6E7-45501-11-00 |
from US $134.24 |
||
|
26
|
26
6E7-45501-30-00
Drive Shaft Comp
UR NOT SHOWN |
6E7-45501-30-00 |
— | ||
| replacement | |||||
|
26
|
26
6E7-45501-31-00
Drive Shaft Comp
UR NOT SHOWN |
6E7-45501-31-00 |
— | ||
|
27
|
27
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $5.30 |
||
|
28
|
28
6E7-45331-00-9M Housing, Bearing |
6E7-45331-00-9M |
US $57.47 |
||
| replacement | |||||
|
28
|
28
6E7-45331-00-CA Housing, Bearing |
6E7-45331-00-CA |
from US $32.08 |
||
|
29
|
29
626-45316-09-00 Bushing, Drive Shaft 1 |
626-45316-09-00 |
from US $19.52 |
||
|
30
|
30
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
31
|
31
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $5.96 |
||
| replacement | |||||
|
31
|
31
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $3.64 |
||
|
32
|
32
683-45315-00-00 Packing, Lower Casing |
683-45315-00-00 |
US $5.81 |
||
| replacement | |||||
|
32
|
32
683-45315-A0-00 Packing, Lower Casing |
683-45315-A0-00 |
from US $5.81 |
||
|
33
|
33
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.66 |
||
|
34
|
34
93315-314V0-00 Bearing, Cylinder.#15 |
93315-314V0-00 |
from US $32.99 |
||
|
35
|
35
6E7-45536-00-00 Sleeve, Drive Shaft |
6E7-45536-00-00 |
from US $8.50 |
||
|
36
|
36
93341-214U1-00 Bearing, Flat (#41) |
93341-214U1-00 |
from US $34.34 |
||
|
37
|
37
6E7-45587-00-05
Shim 3
UR |
6E7-45587-00-05 |
— | ||
|
37
|
37
6E7-45587-00-08
Shim 3
UR |
6E7-45587-00-08 |
— | ||
|
37
|
37
6E7-45587-00-12
Shim (T:0.12Mm)
UR |
6E7-45587-00-12 |
— | ||
| replacement | |||||
|
37
|
37
6E7-45587-01-12
Shim 3
UR |
6E7-45587-01-12 |
— | ||
|
37
|
37
6E7-45587-00-30
Shim (T:0.30Mm)
UR |
6E7-45587-00-30 |
— | ||
| replacement | |||||
|
37
|
37
6E7-45587-01-30
Shim 3
UR |
6E7-45587-01-30 |
— | ||
|
37
|
37
6E7-45587-00-50 Shim (T:0.50Mm)UR |
6E7-45587-00-50 |
US $3.82 |
||
| replacement | |||||
|
37
|
37
6E7-45587-01-50 Shim 3Shim (t:0.50mm) UR |
6E7-45587-01-50 |
US $3.82 |
||
|
38
|
38
6E7-45551-00-00 Pinion (13T) |
6E7-45551-00-00 |
from US $97.68 |
||
|
39
|
39
901-7908M-06-00 Nut |
901-7908M-06-00 |
from US $4.11 |
||
|
40
|
40
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.53 |
||
|
41
|
41
664-45567-00-05 ShimUR |
664-45567-00-05 |
US $4.41 |
||
|
41
|
41
664-45567-00-08 ShimUR |
664-45567-00-08 |
US $4.41 |
||
|
41
|
41
664-45567-00-12 Shim (T:0.12Mm)UR |
664-45567-00-12 |
US $5.81 |
||
| replacement | |||||
|
41
|
41
664-45567-10-00 Shim (T:0.12Mm)UR |
664-45567-10-00 |
from US $5.09 |
||
|
41
|
41
664-45567-00-30 Shim (T:0.30Mm)Shim 1 (0.30mm) UR |
664-45567-00-30 |
US $5.81 |
||
| replacement | |||||
|
41
|
41
664-45567-40-00 Shim (T:0.30Mm)UR |
664-45567-40-00 |
from US $5.09 |
||
|
41
|
41
664-45567-00-50 Shim (T:0.50Mm)UR |
664-45567-00-50 |
US $5.81 |
||
| replacement | |||||
|
41
|
41
664-45567-60-00 Shim (T:0.50Mm)UR |
664-45567-60-00 |
from US $5.09 |
||
|
42
|
42
6E7-45560-00-00 Gear |
6E7-45560-00-00 |
US $147.83 |
||
| replacement | |||||
|
42
|
42
6E7-45560-01-00 Gear 1 (27T) |
6E7-45560-01-00 |
from US $79.68 |
||
|
43
|
43
682-45631-00-00 Clutch, Dog |
682-45631-00-00 |
from US $32.08 |
||
|
44
|
44
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2 |
||
|
45
|
45
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
45
|
45
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.41 |
||
|
46
|
46
650-45635-00-00 Plunger, Shift |
650-45635-00-00 |
from US $3.64 |
||
|
47
|
47
90501-14M06-00 Spring, Compression |
90501-14M06-00 |
US $4.39 |
||
| replacement | |||||
|
47
|
47
90501-14M09-00 Spring, Compression |
90501-14M09-00 |
from US $2.98 |
||
|
48
|
48
683-45611-00-00 Shaft, Propeller |
683-45611-00-00 |
from US $203 |
||
|
49
|
49
90201-17682-00 Washer, Plate |
90201-17682-00 |
from US $1.84 |
||
|
50
|
50
626-45577-00-01 Shim (T:0.10Mm)UR |
626-45577-00-01 |
US $4.53 |
||
| replacement | |||||
|
50
|
50
626-45577-00-00 Shim (T:0.10Mm)UR |
626-45577-00-00 |
from US $4.53 |
||
|
50
|
50
626-45577-00-03 Shim (T:0.30Mm)UR |
626-45577-00-03 |
US $4.53 |
||
| replacement | |||||
|
50
|
50
626-45577-20-00 Shim (T:0.30Mm)UR |
626-45577-20-00 |
from US $2.32 |
||
|
50
|
50
626-45577-00-05 Shim (T:0.50Mm)UR |
626-45577-00-05 |
US $4.53 |
||
| replacement | |||||
|
50
|
50
626-45577-40-00 Shim (T:0.50Mm)UR |
626-45577-40-00 |
from US $4.53 |
||
|
51
|
51
6E7-45571-00-00 Gear 2 (27T) |
6E7-45571-00-00 |
from US $140.92 |
||
|
52
|
52
933-06005-01-00
Bearing
|
933-06005-01-00 |
— | ||
| replacement | |||||
|
52
|
52
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.88 |
||
|
53
|
53
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $2.66 |
||
|
54
|
54
683-45361-00-EJ
Cap, Lower Casing
|
683-45361-00-EJ |
— | ||
| replacement | |||||
|
54
|
54
999-99022-30-00 Cap, Lower Casing Set (683) |
999-99022-30-00 |
US $95.47 |
||
|
55
|
55
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
55
|
55
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
56
|
56
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
57
|
57
93315-317U2-00 Bearing |
93315-317U2-00 |
from US $8.93 |
||
|
58
|
58
931-01170-54-00 Oil Seal |
931-01170-54-00 |
from US $8.28 |
||
|
59
|
59
683-W0001-21-00 Lwr Unit Gskt KitSEE FIG.22 FOR DETAIL SERC |
683-W0001-21-00 |
US $83.19 |
||
| replacements | |||||
|
59
|
59
683-W0001-C1-00 Gasket Kit, Lower UnitSEE FIG.22 FOR DETAIL SERC |
683-W0001-C1-00 |
US $83.19 |
||
|
59
|
59
999-99999-99-00
Not Available
SEE FIG.22 FOR DETAIL SERC |
999-99999-99-00 |
— | ||
|
60
|
60
682-W0078-00-00 Water Pump Repair KitSEE FIG. 22 FOR DETAIL SER |
682-W0078-00-00 |
US $93.67 |
||
| replacement | |||||
|
60
|
60
682-W0078-A1-00 Water Pump Repair KitSEE FIG. 22 FOR DETAIL SER |
682-W0078-A1-00 |
from US $71.39 |
||
|
61
|
61
682-W0078-0A-00
Chrome Pump Kit
|
682-W0078-0A-00 |
— | ||
| replacements | |||||
|
61
|
61
682-W0078-0A-KT
Ekt Water Pump Repair Kit, Chr
|
682-W0078-0A-KT |
— | ||
|
61
|
61
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
62
|
62
682-44321-40-00 Inner Plate, Cartridge |
682-44321-40-00 |
from US $21.95 |
||
|
63
|
63
682-44322-40-00 Insert, Cartridge |
682-44322-40-00 |
from US $35.33 |
||
|
64
|
64
682-44323-40-00 Outer Plate, Cartridge |
682-44323-40-00 |
from US $32.30 |
||
|
65
|
65
682-44352-40-00 Impeller |
682-44352-40-00 |
US $23.52 |
||
| replacement | |||||
|
65
|
65
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $21.50 |
||
|
66
|
66
682-45344-00-00 Cover, Oil Seal |
682-45344-00-00 |
from US $8.50 |
||
