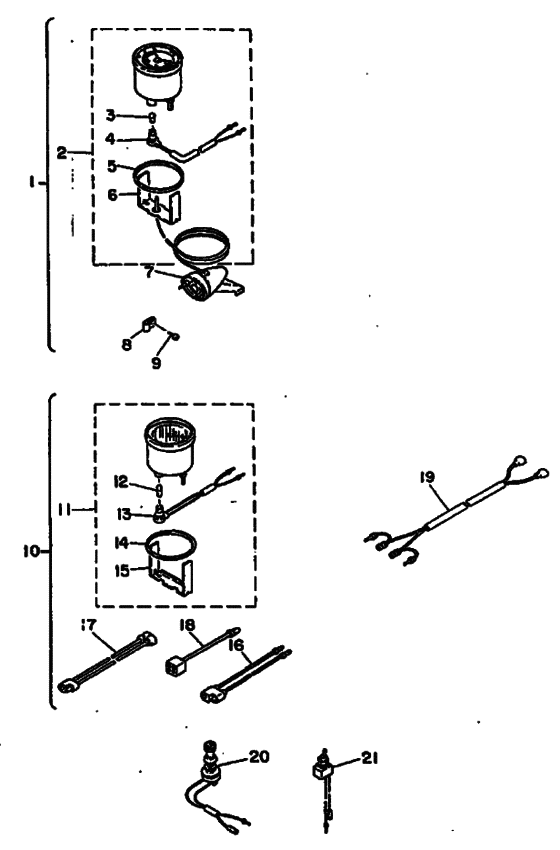

Optional parts 2 Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-W0081-00-00
Speedometer Kit
|
688-W0081-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
688-83510-01-00
Speedometer Assy
|
688-83510-01-00 |
— | ||
|
3
|
3
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
4
|
4
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
5
|
5
688-83523-00-00
Damper
|
688-83523-00-00 |
— | ||
|
6
|
6
688-83514-00-00
Plate, Fitting
|
688-83514-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
688-83556-01-00 Sender |
688-83556-01-00 |
US $153.36 |
||
| replacement | |||||
|
7
|
7
688-83556-00-00 Sender (With Hose L:6M/d:4Mm) |
688-83556-00-00 |
from US $88.18 |
||
|
8
|
8
90601-31402-00 Clip, Nylon 14 |
90601-31402-00 |
from US $4.39 |
||
|
9
|
9
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
10
|
10
676-W0080-01-00
Tachometer Kit
|
676-W0080-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
688-83540-00-00 Tachometer Assy |
688-83540-00-00 |
US $368.28 |
||
| replacements | |||||
|
11
|
11
688-83540-01-00 WATER TEMP METER |
688-83540-01-00 |
from US $361.26 |
||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
13
|
13
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
14
|
14
688-83523-00-00
Damper
|
688-83523-00-00 |
— | ||
|
15
|
15
688-83544-00-00
Plate, Fitting
|
688-83544-00-00 |
— | ||
| replacement | |||||
|
15
|
15
688-83544-01-00
Plate, Fitting
|
688-83544-01-00 |
— | ||
|
16
|
16
676-82553-G0-00
Extension, Wire Lead
|
676-82553-G0-00 |
— | ||
|
17
|
17
663-82541-09-00
Wire, Lead
|
663-82541-09-00 |
— | ||
|
18
|
18
676-82529-G0-00
Connector
|
676-82529-G0-00 |
— | ||
|
19
|
19
689-83553-20-00 Wire, Lead |
689-83553-20-00 |
from US $40.70 |
||
|
20
|
20
688-82520-00-00 Light Switch AssyUR |
688-82520-00-00 |
from US $43.38 |
||
|
21
|
21
688-82560-00-00 Thermo Switch AssyUR |
688-82560-00-00 |
from US $60.44 |
||
