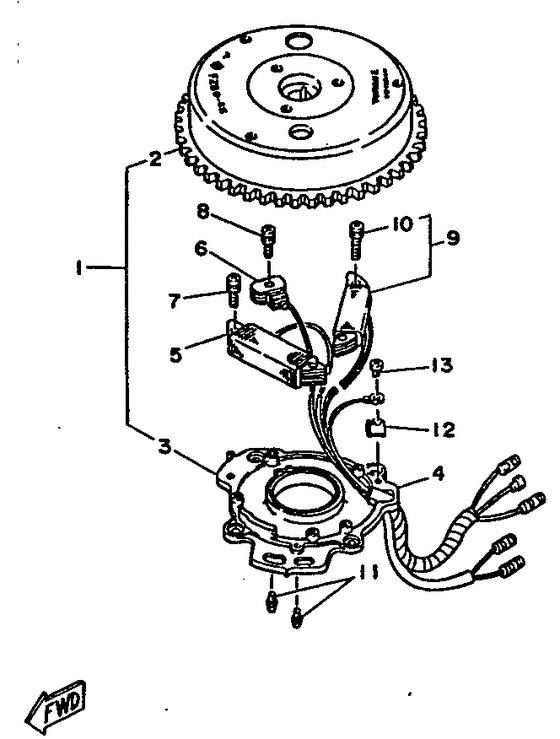

C.d.i. magneto (9.9DPE/150DPE MODEL) Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E7-85500-A0-00
C.d.i. Magneto Assy
|
6E7-85500-A0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6E7-85550-A0-00
Rotor Assy
|
6E7-85550-A0-00 |
— | ||
|
03
|
03
6E7-85560-A0-00
Base Assy
|
6E7-85560-A0-00 |
— | ||
|
04
|
04
6E7-85509-70-00 Base, Magneto |
6E7-85509-70-00 |
US $132.38 |
||
|
05
|
05
6E7-85520-70-00 Coil, Charge |
6E7-85520-70-00 |
from US $179.61 |
||
|
06
|
06
6E7-85580-70-00 Coil, Pulser |
6E7-85580-70-00 |
from US $76.38 |
||
|
07
|
07
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
08
|
08
90159-05038-00
Screw, With Washer
|
90159-05038-00 |
— | ||
| replacement | |||||
|
08
|
08
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
09
|
09
6E7-81303-A0-00 Lighting Coil Assy |
6E7-81303-A0-00 |
from US $133.60 |
||
|
10
|
10
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
11
|
11
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
12
|
12
6E7-81328-70-00
Clamp, Cord
|
6E7-81328-70-00 |
— | ||
|
13
|
13
97802-04006-00 Screw, Pan Head |
97802-04006-00 |
US $1.56 |
||
| replacements | |||||
|
13
|
13
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
