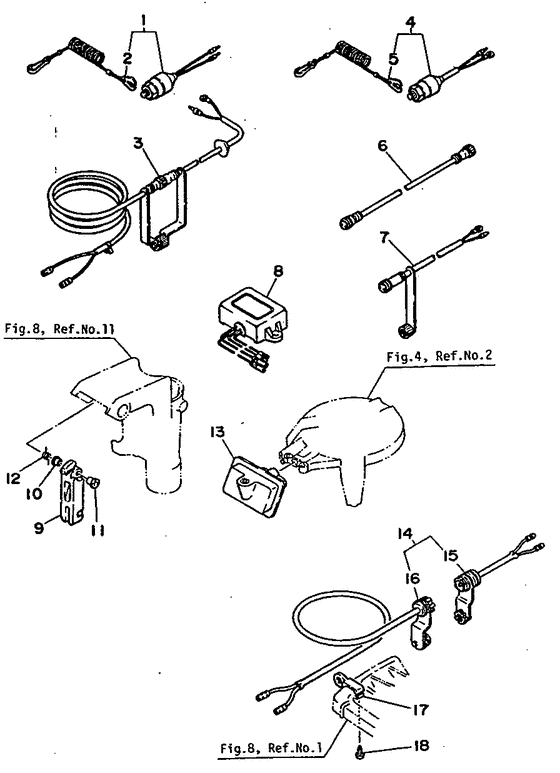

Optional parts 1 Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68982575120
Engine stop switch assy
|
68982575120 |
— | ||
|
02
|
02
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
03
|
03
689-82553-20-00 Extension, Wire Lead |
689-82553-20-00 |
US $69.63 |
||
|
04
|
04
6E0-82575-01-00
Engine Stop Switch Assy
|
6E0-82575-01-00 |
— | ||
|
05
|
05
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
06
|
06
689-82553-10-00 Extension, Wire Lead |
689-82553-10-00 |
from US $46.78 |
||
|
07
|
07
689-84340-00-00 Socket Cord Assy 1 |
689-84340-00-00 |
from US $27.34 |
||
|
08
|
08
663-81910-10-00 Voltage Regulator Assy |
663-81910-10-00 |
US $296.89 |
||
|
09
|
09
682-42731-01-EJ
Carrying Handle
|
682-42731-01-EJ |
— | ||
|
10
|
10
90386-10025-00 Bush |
90386-10025-00 |
from US $3.54 |
||
|
11
|
11
90386-10045-00 Bush |
90386-10045-00 |
from US $4.11 |
||
|
12
|
12
90508-16M04-00
Spring, Torsion
|
90508-16M04-00 |
— | ||
|
13
|
13
6E7-15758-80-EJ
Guide, Rope
|
6E7-15758-80-EJ |
— | ||
|
14
|
14
682-84380-00-00 Concent 2P |
682-84380-00-00 |
from US $64.52 |
||
|
15
|
15
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
|
16
|
16
682-84382-00-00 2P Concemt |
682-84382-00-00 |
from US $61.34 |
||
|
17
|
17
682-84387-00-00 Holder |
682-84387-00-00 |
from US $11.54 |
||
|
18
|
18
97780-50512-00 Screw, Panhead Tapping (682) |
97780-50512-00 |
US $1.98 |
||
| replacement | |||||
|
18
|
18
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
