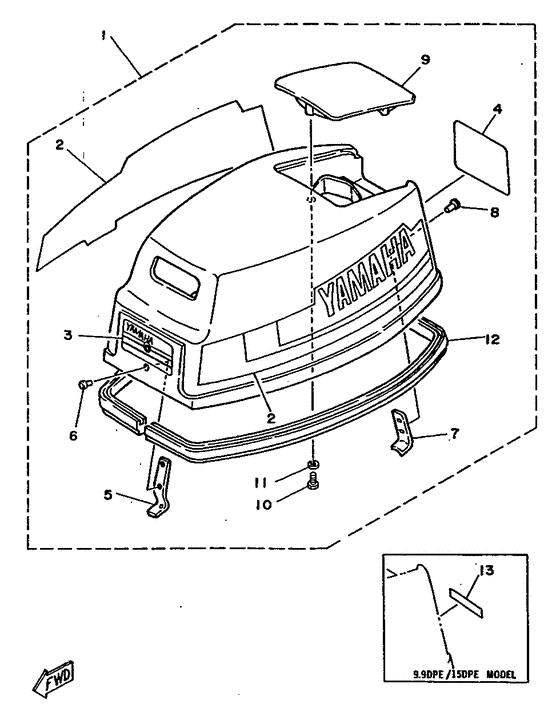

Top cowling Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E7-42610-21-EJ
Top Cowling Assy
Ur |
6E7-42610-21-EJ |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
01
|
01
6E8-42610-21-EJ
Top Cowling Assy
Ur not shown |
6E8-42610-21-EJ |
— | ||
| replacement | |||||
|
01
|
01
6E8-42610-26-EJ
Top Cowling Assy
Ur not shown |
6E8-42610-26-EJ |
— | ||
|
02
|
02
6E7-W0070-20-00
Graphic Side Set
|
6E7-W0070-20-00 |
— | ||
| replacements | |||||
|
02
|
02
6E7-W0070-23-00
Graphic Set
|
6E7-W0070-23-00 |
— | ||
|
02
|
02
6E7-W0070-21-00
Graphic Side Set
|
6E7-W0070-21-00 |
— | ||
|
03
|
03
6E7-42677-01-00 Graphic, Front |
6E7-42677-01-00 |
US $4.84 |
||
|
04
|
04
6E7-42678-20-00
Graphic, Rear
Ur |
6E7-42678-20-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
04
|
04
6E8-42678-20-00
Graphic, Rear
Ur not shown |
6E8-42678-20-00 |
— | ||
|
05
|
05
6E7-42651-00-00
Hook
1 |
6E7-42651-00-00 |
— | ||
| replacements | |||||
|
05
|
05
6E7-42651-02-00
Hook
1 |
6E7-42651-02-00 |
— | ||
|
05
|
05
6E7-42651-01-00
Hook
1 |
6E7-42651-01-00 |
— | ||
|
07
|
07
6E7-42652-00-00 Hook2 |
6E7-42652-00-00 |
US $6.91 |
||
|
09
|
09
6E7-42613-00-EJ
Molding, Air Duct
|
6E7-42613-00-EJ |
— | ||
|
12
|
12
682-42615-00-00
Seal
|
682-42615-00-00 |
— | ||
|
13
|
13
6G1-42683-00-00
Mark, Cowling 3
3 (9.9dpe/15dpe model) |
6G1-42683-00-00 |
— | ||
