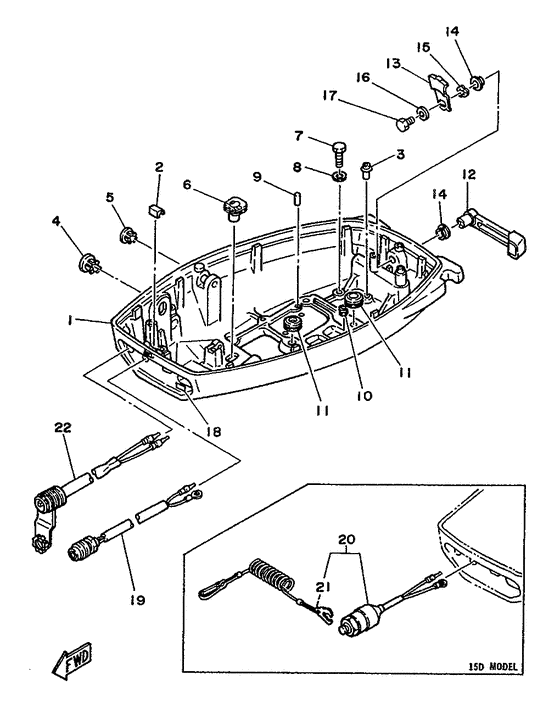

Bottom cowling Diagram Yamaha 15 WHS/L
- Year
- 1988
- Model
- 15D
- Model code
- 6E8
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
682-42711-03-EJ
Cowling, Bottom
|
682-42711-03-EJ |
— | ||
|
02
|
02
6K4-42629-00-00
Seal
|
6K4-42629-00-00 |
— | ||
|
03
|
03
650-24378-00-00
Pipe, Joint 4
|
650-24378-00-00 |
— | ||
| replacements | |||||
|
03
|
03
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
03
|
03
6EE-F4377-00-00 Pipe, Joint 2 |
6EE-F4377-00-00 |
from US $3.33 |
||
|
04
|
04
682-42725-02-00 Grommet |
682-42725-02-00 |
from US $5.24 |
||
|
05
|
05
682-42726-00-00 Grommet |
682-42726-00-00 |
from US $4.82 |
||
|
06
|
06
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
07
|
07
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
07
|
07
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
10
|
10
682-44366-00-00 Damper, Water Seal 2 |
682-44366-00-00 |
from US $8.08 |
||
|
11
|
11
682-44367-00-00 Damper, Water Seal 3 |
682-44367-00-00 |
from US $8.64 |
||
|
12
|
12
682-42815-00-EJ
Lever, Clamp
|
682-42815-00-EJ |
— | ||
|
13
|
13
6E7-42816-00-00 Lever, Clamp |
6E7-42816-00-00 |
from US $9.35 |
||
|
14
|
14
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
15
|
15
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
16
|
16
90201-06068-00 Washer, Plate |
90201-06068-00 |
US $2.98 |
||
| replacement | |||||
|
16
|
16
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
17
|
17
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
17
|
17
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
18
|
18
6A1-42792-01-00
Mark (100:1)
|
6A1-42792-01-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
6A0-82550-01-00 Engine Stop Switch Assembly |
6A0-82550-01-00 |
from US $16.88 |
||
|
20
|
20
6E9-82575-00-00 Engine Stop Switch Assy |
6E9-82575-00-00 |
US $50.98 |
||
| replacement | |||||
|
20
|
20
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $50.98 |
||
|
21
|
21
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
22
|
22
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
