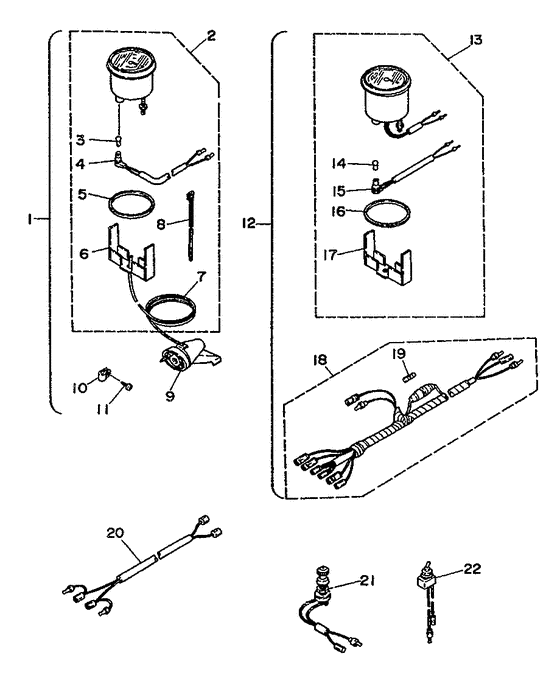

Optional parts 2 Diagram Yamaha 15 WHS/L
- Year
- 1988
- Model
- 15D
- Model code
- 6E8
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6Y5-W0081-40-00 Speedometer Kit |
6Y5-W0081-40-00 |
US $396.39 |
||
|
02
|
02
6Y5-83510-30-00 Speedometer Assy |
6Y5-83510-30-00 |
US $357.83 |
||
| replacement | |||||
|
02
|
02
6Y5-83510-31-00 Speedometer Assy |
6Y5-83510-31-00 |
US $472.12 |
||
|
03
|
03
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
04
|
04
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
05
|
05
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
06
|
06
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
07
|
07
688-83557-00-00 Tube |
688-83557-00-00 |
US $19.13 |
||
| replacement | |||||
|
07
|
07
6Y5-83557-10-00 Tube (8M) |
6Y5-83557-10-00 |
from US $15.19 |
||
|
08
|
08
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
08
|
08
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
08
|
08
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
09
|
09
688-83556-01-00 Sender |
688-83556-01-00 |
US $153.36 |
||
| replacement | |||||
|
09
|
09
688-83556-00-00 Sender (With Hose L:6M/d:4Mm) |
688-83556-00-00 |
from US $88.18 |
||
|
10
|
10
90601-31402-00 Clip, Nylon 14 |
90601-31402-00 |
from US $4.39 |
||
|
11
|
11
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
12
|
12
6Y5-W0080-11-00 Tachometer Kit |
6Y5-W0080-11-00 |
US $543.42 |
||
| replacement | |||||
|
12
|
12
6Y5-W0080-12-00 Tachometer Kit |
6Y5-W0080-12-00 |
from US $543.42 |
||
|
13
|
13
6Y5-83540-12-00 Tachometer Assy |
6Y5-83540-12-00 |
US $486.95 |
||
| replacements | |||||
|
13
|
13
6Y5-83540-14-00 Pro Tachometer Assy Wo Oil |
6Y5-83540-14-00 |
US $486.95 |
||
|
13
|
13
6Y5-W0080-12-00 Tachometer Kit |
6Y5-W0080-12-00 |
from US $543.42 |
||
|
13
|
13
6Y5-83540-15-00 Tachometer Assy |
6Y5-83540-15-00 |
US $283.50 |
||
|
14
|
14
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
15
|
15
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
16
|
16
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
17
|
17
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
18
|
18
6Y5-83553-00-00 Wire, Lead (L=2.5M) |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
18
|
18
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
19
|
19
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
|
20
|
20
6Y5-83553-10-00 Wire, Lead (L=5.0M) |
6Y5-83553-10-00 |
from US $37.72 |
||
|
21
|
21
688-82520-00-00 Light Switch AssyUr |
688-82520-00-00 |
from US $43.38 |
||
|
22
|
22
688-82526-00-00 Switch, LampUr |
688-82526-00-00 |
from US $62.03 |
||
