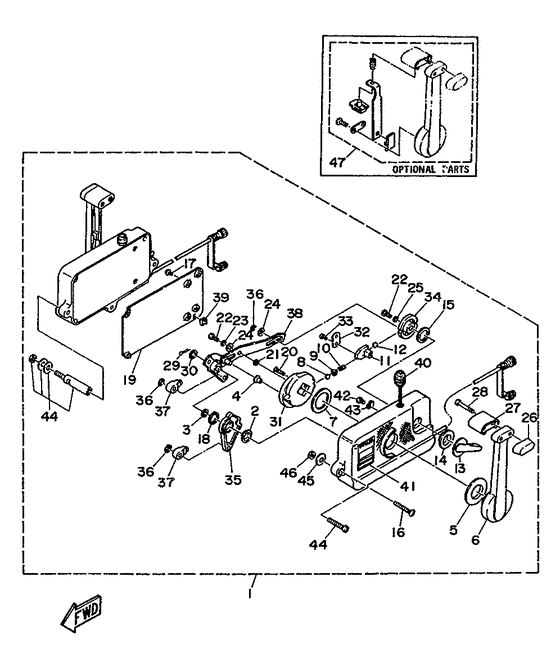

Remote control assy 1 Diagram Yamaha 15 WHS/L
- Year
- 1988
- Model
- 15D
- Model code
- 6E8
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
701-48101-10-00 Remote Control AssyUr |
701-48101-10-00 |
US $564.96 |
||
| replacements | |||||
|
01
|
01
703-48260-20-00 Remote Control AssyUr |
703-48260-20-00 |
US $564.96 |
||
|
01
|
01
703-48260-23-00 Remote Control AssyUr |
703-48260-23-00 |
US $530.55 |
||
|
01
|
01
701-48102-10-00 Remote Control AssyUr |
701-48102-10-00 |
US $564.96 |
||
| replacements | |||||
|
01
|
01
703-48260-20-00 Remote Control AssyUr |
703-48260-20-00 |
US $564.96 |
||
|
01
|
01
703-48260-23-00 Remote Control AssyUr |
703-48260-23-00 |
US $530.55 |
||
|
01
|
01
701-48110-22-00 Remote Control AssyUr |
701-48110-22-00 |
US $564.96 |
||
| replacement | |||||
|
01
|
01
701-48110-23-00 Remote Control AssyRemote control assy Ur |
701-48110-23-00 |
US $564.96 |
||
|
02
|
02
701-48235-00-00 Bushing |
701-48235-00-00 |
from US $12.04 |
||
|
03
|
03
701-48197-10-00 Washer, Wave |
701-48197-10-00 |
from US $1.98 |
||
|
04
|
04
701-48252-00-00 Roller, Cam |
701-48252-00-00 |
from US $5.53 |
||
|
05
|
05
701-48234-00-00 Bushing 1 |
701-48234-00-00 |
from US $4.82 |
||
|
06
|
06
701-48221-00-00 Lever, Control |
701-48221-00-00 |
from US $105.83 |
||
|
07
|
07
701-48196-11-00 Washer, Wave |
701-48196-11-00 |
from US $5.10 |
||
|
08
|
08
701-48236-00-00 Roller, Detent |
701-48236-00-00 |
from US $5.81 |
||
|
09
|
09
702-48237-00-00
Adaptor
|
702-48237-00-00 |
— | ||
|
10
|
10
702-48238-00-00
Spring, Detent
|
702-48238-00-00 |
— | ||
|
11
|
11
701-48249-00-00 Adaptor, Spring |
701-48249-00-00 |
from US $3.83 |
||
|
12
|
12
701-48248-00-00 Roller, Free Accel |
701-48248-00-00 |
from US $1.98 |
||
|
13
|
13
701-48152-11-00 Knob, Free AccelUr |
701-48152-11-00 |
from US $12.33 |
||
|
13
|
13
701-48152-20-00 Knob, Free AccelUr |
701-48152-20-00 |
US $7.78 |
||
|
14
|
14
701-48243-00-00 Bushing |
701-48243-00-00 |
from US $6.80 |
||
|
15
|
15
701-48198-10-00 Washer, Wave |
701-48198-10-00 |
from US $4.25 |
||
|
16
|
16
701-48281-00-00
Screw
|
701-48281-00-00 |
— | ||
|
17
|
17
701-48289-00-00 Screw |
701-48289-00-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
18
|
18
701-48268-00-00 Spacer |
701-48268-00-00 |
from US $12.04 |
||
|
19
|
19
701-48213-00-00 Back Plate 2 |
701-48213-00-00 |
from US $28.90 |
||
|
20
|
20
92780-06025-00 Screw, Flat Head |
92780-06025-00 |
US $2.99 |
||
| replacement | |||||
|
20
|
20
98780-06025-00 Screw Flat Head |
98780-06025-00 |
from US $3.26 |
||
|
21
|
21
701-48255-00-00 Collar |
701-48255-00-00 |
from US $3.83 |
||
|
22
|
22
973-95060-18-00
Bolt (6A0)
|
973-95060-18-00 |
— | ||
| replacement | |||||
|
22
|
22
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
23
|
23
702-48288-00-00
Washer, Plain
|
702-48288-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
701-48246-00-00 Spacer |
701-48246-00-00 |
from US $1.56 |
||
|
25
|
25
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
26
|
26
701-48229-00-00 Grip, Control Lever |
701-48229-00-00 |
from US $8.50 |
||
|
27
|
27
701-48222-00-00 Grip, Control Lever |
701-48222-00-00 |
from US $12.18 |
||
|
28
|
28
701-48282-00-00 Screw |
701-48282-00-00 |
US $3.54 |
||
| replacement | |||||
|
28
|
28
98580-05555-00 Screw, Pan Head |
98580-05555-00 |
from US $3.54 |
||
|
29
|
29
701-48239-00-00
Set Pin, Plate
|
701-48239-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
701-48266-00-00 Spacer |
701-48266-00-00 |
from US $2.41 |
||
|
31
|
31
701-48232-00-00 Gear |
701-48232-00-00 |
from US $51.12 |
||
|
32
|
32
701-48189-11-00 Retainer |
701-48189-11-00 |
from US $2.13 |
||
|
33
|
33
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
33
|
33
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
34
|
34
701-48153-12-00 Shaft, Free Accel |
701-48153-12-00 |
from US $13.32 |
||
|
35
|
35
701-48271-00-00 Arm, ShiftUr |
701-48271-00-00 |
from US $28.34 |
||
|
35
|
35
701-48271-10-00 Arm, ShiftUr |
701-48271-10-00 |
US $34.29 |
||
|
36
|
36
93430-06024-00 Circlip |
93430-06024-00 |
from US $2.13 |
||
|
37
|
37
703-48345-01-00 Cable End, Remote Control 2 |
703-48345-01-00 |
from US $4.39 |
||
|
38
|
38
701-48261-00-00 Arm, ThrottleUr |
701-48261-00-00 |
from US $102.79 |
||
|
38
|
38
701-48261-10-00 Arm, ThrottleUr |
701-48261-10-00 |
from US $124.34 |
||
|
39
|
39
701-48358-00-00 Anchor, Cable |
701-48358-00-00 |
from US $4.25 |
||
|
40
|
40
701-82550-50-00
Engine Stop Switch Assy
|
701-82550-50-00 |
— | ||
|
41
|
41
701-48126-00-00
Graphic
|
701-48126-00-00 |
— | ||
|
42
|
42
701-48283-00-00 Screw |
701-48283-00-00 |
from US $1.98 |
||
|
43
|
43
701-82594-00-00 Clamp |
701-82594-00-00 |
from US $1.98 |
||
|
44
|
44
701-48291-00-00
Attachment
|
701-48291-00-00 |
— | ||
|
45
|
45
701-48287-00-00 Washer |
701-48287-00-00 |
from US $4.53 |
||
|
46
|
46
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
47
|
47
701-48280-00-00 Remote Control AssyAp |
