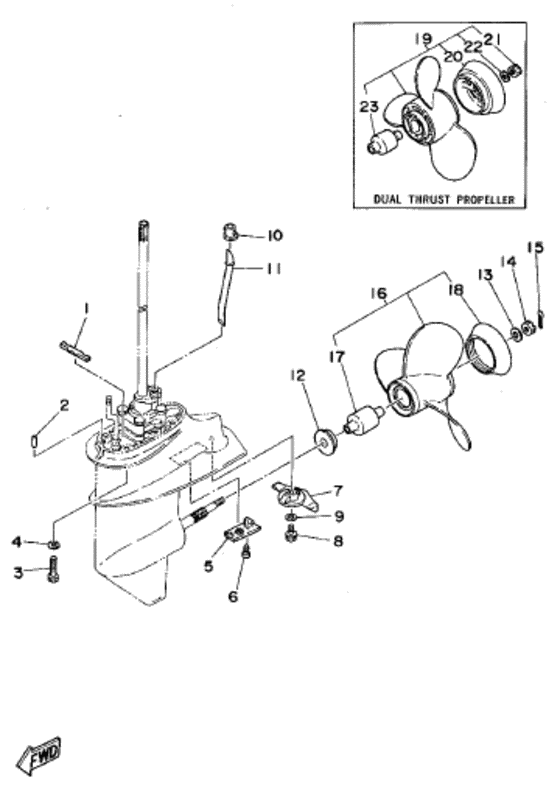

Lower casing drive Diagram Yamaha 15 ES/LH
- Year
- 1994
- Model
- 15
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
2
|
2
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
3
|
3
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
3
|
3
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
3
|
3
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.30 |
||
|
4
|
4
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
5
|
5
6E7-45214-00-00 Cover, Water Inlet 1 |
6E7-45214-00-00 |
from US $6.38 |
||
|
6
|
6
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
7
|
7
6E8-45251-01-00 Anode |
6E8-45251-01-00 |
US $16.43 |
||
| replacement | |||||
|
7
|
7
6E8-45251-02-00 Anode |
6E8-45251-02-00 |
from US $10.58 |
||
|
8
|
8
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
8
|
8
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
8
|
8
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
8
|
8
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
9
|
9
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
10
|
10
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
11
|
11
682-44361-00-00 Tube, Water 1 |
682-44361-00-00 |
US $26.49 |
||
| replacement | |||||
|
11
|
11
682-44361-01-00 Tube, Water |
682-44361-01-00 |
from US $26.49 |
||
|
11
|
11
682-44361-10-00 Tube, Water 1 |
682-44361-10-00 |
from US $63.88 |
||
|
12
|
12
6E7-45987-01-00 Spacer 1 |
6E7-45987-01-00 |
from US $23.82 |
||
|
13
|
13
902-0110M-01-00 Washer, Plate |
902-0110M-01-00 |
from US $2.66 |
||
|
14
|
14
90171-10M01-00 Nut, Castle |
90171-10M01-00 |
from US $4.64 |
||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
15
|
15
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.13 |
||
| replacement | |||||
|
15
|
15
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.13 |
||
|
16
|
16
683-45943-00-EL Propeller (3X9-1/4"x10-1/2"-J)3X9-1/4"X10-1/2"-J |
683-45943-00-EL |
US $183.75 |
||
| replacement | |||||
|
16
|
16
683-45943-00-00 Propeller (3X9-1/4"x10-1/2"-J)3X9-1/4"X10-1/2"-J |
683-45943-00-00 |
from US $183.75 |
||
|
16
|
16
683-45947-00-EL Propeller (3X9-1/4"x8"-J)3X9-1/4"X8"-J |
683-45947-00-EL |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45947-00-00 Propeller (3X9-1/4"x8"-J)3X9-1/4"X8"-J |
683-45947-00-00 |
US $183.75 |
||
|
16
|
16
63V-45947-00-00 Propeller (3X9-1/4"x8"-J)3X9-1/4"X8"-J |
63V-45947-00-00 |
from US $183.75 |
||
|
16
|
16
683-45945-00-EL Propeller (3X9-1/4"x9"-J)3X9-1/4"X9"-J |
683-45945-00-EL |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45945-00-00 Propeller (3X9-1/4"x9"-J)3X9-1/4"X9"-J |
683-45945-00-00 |
US $183.75 |
||
|
16
|
16
63V-45945-10-00 Propeller (3X9-1/4"x9"-J1)3X9-1/4"X9"-J |
63V-45945-10-00 |
from US $183.75 |
||
|
16
|
16
683-45952-00-EL Propeller (3X9-1/4"x9-3/4"-J)3X9-1/4"X9-3/4"-J |
683-45952-00-EL |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45952-00-00 Propeller (3X9-1/4"x9-3/4"-J)Propeller assy (3x9-1/2"9x-1/2"-j) 3X9-1/4"X9-3/4"-J |
683-45952-00-00 |
US $183.75 |
||
|
16
|
16
63V-45952-10-00 Propeller (3X9-1/4"x10"-J1)3X9-1/4"X9-3/4"-J |
63V-45952-10-00 |
from US $183.75 |
||
|
17
|
17
683-W4592-02-EL Propeller (3X9-3/4"x6-1/2"-J)3X9-3/4"X6-1/2"-J |
683-W4592-02-EL |
US $194.81 |
||
| replacement | |||||
|
17
|
17
683-W4592-02-00 Propeller (3X9-3/4"x6-1/2"-J)3X9-3/4"X6-1/2"-J |
683-W4592-02-00 |
from US $194.81 |
||
|
17
|
17
683-W4591-02-EL Propeller (3X9-3/4"x8"-J)3X9-3/4"X8"-J |
683-W4591-02-EL |
US $194.81 |
||
| replacement | |||||
|
17
|
17
683-W4591-02-00 Propeller (3X9-3/4 X8 -J)3X9-3/4"X8"-J |
683-W4591-02-00 |
from US $194.81 |
||
|
18
|
18
6E7-45986-00-00 Ring, Deflector |
6E7-45986-00-00 |
from US $19.75 |
||
|
19
|
19
90171-10M07-00 Nut, Castle |
90171-10M07-00 |
from US $10.63 |
||
|
20
|
20
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
