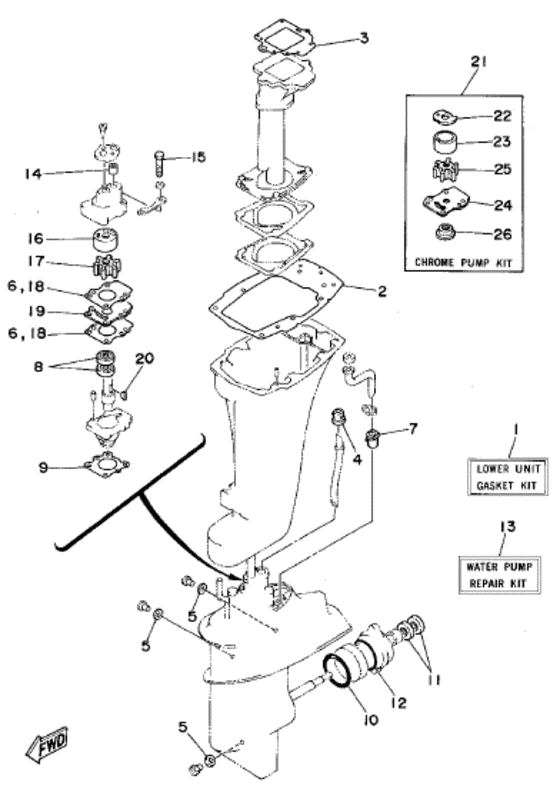

Repair kit Diagram Yamaha 15 ES/LH
- Year
- 1994
- Model
- 15
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
683-W0001-22-00
Lower Unit Gasket Kit
|
683-W0001-22-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
682-45113-A1-00 Gasket, Upper Casing |
682-45113-A1-00 |
US $19.13 |
||
| replacement | |||||
|
2
|
2
682-45113-A3-00 GASKET, UPPER CASING |
682-45113-A3-00 |
from US $18.74 |
||
|
3
|
3
682-41133-A0-00 Gasket, Exhaust Manifold 1 |
682-41133-A0-00 |
from US $10.26 |
||
|
4
|
4
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
5
|
5
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
6
|
6
682-44315-A0-00 Gasket, Water Pump |
682-44315-A0-00 |
from US $2 |
||
|
7
|
7
6E7-44366-00-00 Damper, Water Seal 2 |
6E7-44366-00-00 |
US $4.68 |
||
|
8
|
8
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $5.96 |
||
| replacement | |||||
|
8
|
8
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $3.64 |
||
|
9
|
9
683-45315-A0-00 Packing, Lower Casing |
683-45315-A0-00 |
from US $5.81 |
||
|
10
|
10
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $2.66 |
||
|
11
|
11
931-01170-54-00 Oil Seal |
931-01170-54-00 |
from US $8.28 |
||
|
12
|
12
93210-56M80-00 O-Ring |
93210-56M80-00 |
from US $3.54 |
||
|
13
|
13
682-W0078-01-00
Water Pump Repair Kit
|
682-W0078-01-00 |
— | ||
| replacement | |||||
|
13
|
13
682-W0078-A1-00 Water Pump Repair Kit |
682-W0078-A1-00 |
from US $71.39 |
||
|
14
|
14
682-44365-00-00 Damper, Water Seal 1 |
682-44365-00-00 |
US $3.54 |
||
|
15
|
15
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
16
|
16
682-44322-00-00 Insert, Cartridge |
682-44322-00-00 |
from US $9.60 |
||
|
17
|
17
682-44352-01-00
Impeller
|
682-44352-01-00 |
— | ||
| replacement | |||||
|
17
|
17
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $21.50 |
||
|
18
|
18
682-44315-A0-00 Gasket, Water Pump |
682-44315-A0-00 |
from US $2 |
||
|
19
|
19
682-44323-00-00 Outer Plate, Cartridge |
682-44323-00-00 |
from US $4.64 |
||
|
20
|
20
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $5.30 |
||
|
21
|
21
682-W0078-0A-00
Chrome Pump Kit
|
682-W0078-0A-00 |
— | ||
| replacements | |||||
|
21
|
21
682-W0078-0A-KT
Ekt Water Pump Repair Kit, Chr
|
682-W0078-0A-KT |
— | ||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
682-44321-40-00 Inner Plate, Cartridge |
682-44321-40-00 |
from US $21.95 |
||
|
23
|
23
682-44322-40-00 Insert, Cartridge |
682-44322-40-00 |
from US $35.33 |
||
|
24
|
24
682-44323-40-00 Outer Plate, Cartridge |
682-44323-40-00 |
from US $32.30 |
||
|
25
|
25
682-44352-01-00
Impeller
|
682-44352-01-00 |
— | ||
| replacement | |||||
|
25
|
25
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $21.50 |
||
|
26
|
26
682-45344-00-00 Cover, Oil Seal |
682-45344-00-00 |
from US $8.50 |
||
