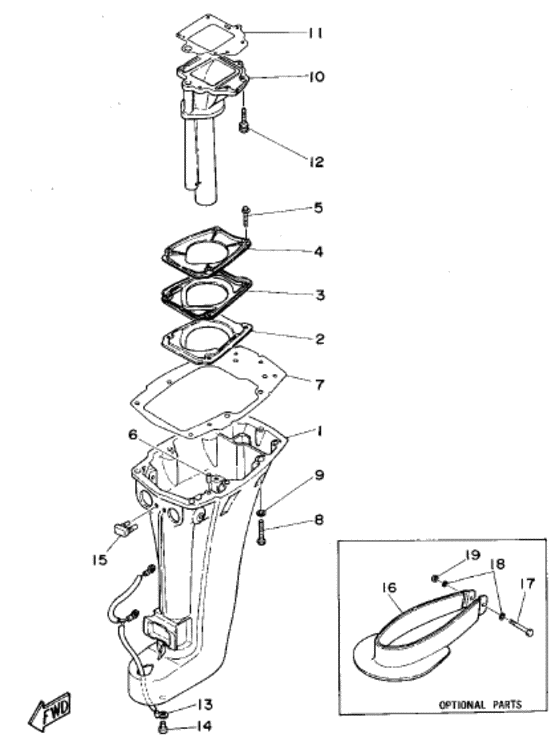

Upper casing Diagram Yamaha 15 ES/LH
- Year
- 1994
- Model
- 15
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-45111-04-4D
Casing, Upper
|
682-45111-04-4D |
— | ||
| replacement | |||||
|
1
|
1
682-45111-09-4D
Casing, Upper
|
682-45111-09-4D |
— | ||
|
1
|
1
682-45111-14-4D
Casing, Upper
|
682-45111-14-4D |
— | ||
| replacement | |||||
|
1
|
1
999-99035-58-00
Casing, Upper
|
999-99035-58-00 |
— | ||
|
2
|
2
682-45126-00-5B
Plate, Seal Damper
|
682-45126-00-5B |
— | ||
| replacement | |||||
|
2
|
2
682-45126-00-CA
Plate, Seal Damper
|
682-45126-00-CA |
— | ||
|
3
|
3
682-45127-00-00 Seal |
682-45127-00-00 |
from US $13.46 |
||
|
4
|
4
682-41116-00-5B Protector |
682-41116-00-5B |
US $25.22 |
||
| replacement | |||||
|
4
|
4
682-41116-00-CA Protector |
682-41116-00-CA |
from US $25.22 |
||
|
5
|
5
90105-06M01-00 Bolt, Flange |
90105-06M01-00 |
from US $3.02 |
||
|
6
|
6
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
7
|
7
682-45113-A1-00 Gasket, Upper Casing |
682-45113-A1-00 |
US $19.13 |
||
| replacement | |||||
|
7
|
7
682-45113-A3-00 GASKET, UPPER CASING |
682-45113-A3-00 |
from US $18.74 |
||
|
8
|
8
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
8
|
8
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.24 |
||
|
9
|
9
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
10
|
10
682-41131-01-5B Manifold, Ext. 1 |
682-41131-01-5B |
from US $54.88 |
||
|
11
|
11
682-41133-A0-00 Gasket, Exhaust Manifold 1 |
682-41133-A0-00 |
from US $10.26 |
||
|
12
|
12
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
12
|
12
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
12
|
12
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
13
|
13
6E7-82127-00-00 Wire, Lead 2 |
6E7-82127-00-00 |
from US $24.23 |
||
|
14
|
14
90157-06M06-00 Screw, Pan Head |
90157-06M06-00 |
from US $1.98 |
||
|
15
|
15
682-44532-00-00 Stopper, Upper Mount |
682-44532-00-00 |
US $4.96 |
||
|
16
|
16
682-45158-00-4D
Plate, Splash
|
682-45158-00-4D |
— | ||
|
17
|
17
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
19
|
19
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
