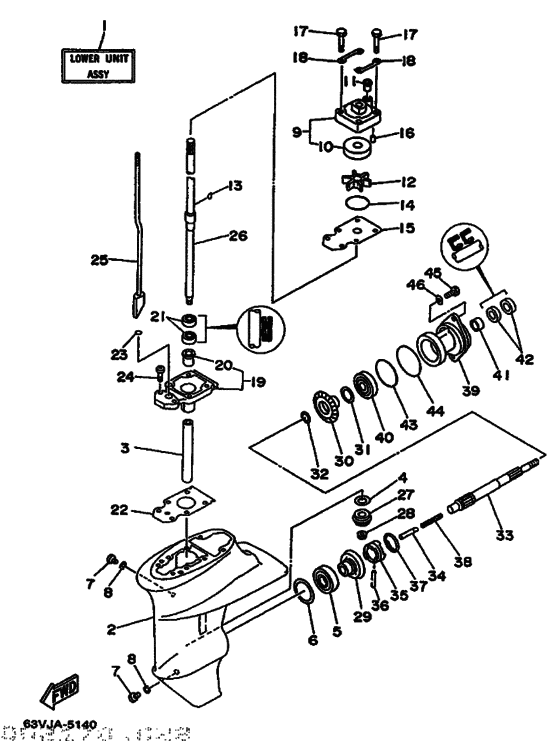

Lower casing & drive Diagram Yamaha 15 WHS/L
- Year
- 1995
- Model
- 15F
- Model code
- 63W
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63V-45300-00-4D Lower Unit Assembly (Ref. # 2~48)UR SHORT |
63V-45300-00-4D |
US $1,940.40 |
||
| replacements | |||||
|
1
|
1
63V-45300-03-8D LOWER UNIT ASSY (S)UR SHORT |
63V-45300-03-8D |
US $1,940.40 |
||
|
1
|
1
63V-45300-05-8D Lower Unit AssyUR SHORT |
63V-45300-05-8D |
from US $1,309.20 |
||
|
1
|
1
63V-45300-10-4D Lower Unit Assembly (Ref. # 2~48)UR LONG |
63V-45300-10-4D |
US $1,848 |
||
| replacements | |||||
|
1
|
1
63V-45300-13-4D Lower Unit AssyUR LONG |
63V-45300-13-4D |
US $1,848 |
||
|
1
|
1
63V-45300-13-8D Lower Unit AssyUR LONG |
63V-45300-13-8D |
US $1,848 |
||
|
1
|
1
63V-45300-14-8D Lower Unit Assy (L)UR LONG |
63V-45300-14-8D |
US $1,848 |
||
|
1
|
1
63V-45300-15-8D Lower Unit AssyUR LONG |
63V-45300-15-8D |
from US $1,298.39 |
||
|
2
|
2
63V-45311-00-4D Casing, Lower |
63V-45311-00-4D |
US $388.74 |
||
| replacements | |||||
|
2
|
2
63V-45311-01-4D
Casing, Lower
|
63V-45311-01-4D |
— | ||
|
2
|
2
63V-45311-01-8D Casing, Lower |
63V-45311-01-8D |
from US $388.74 |
||
|
3
|
3
903-8716M-00-00
Collar
|
903-8716M-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
6E8-45587-00-13 Shim (T:1.13Mm)UR |
6E8-45587-00-13 |
US $9.35 |
||
| replacement | |||||
|
4
|
4
6E8-45587-10-00 Shim (T:1.13Mm)UR |
6E8-45587-10-00 |
from US $8.60 |
||
|
4
|
4
6E8-45587-00-20 Shim (T:1.20Mm)UR |
6E8-45587-00-20 |
US $9.35 |
||
| replacement | |||||
|
4
|
4
6E8-45587-30-00 Shim (T:1.20Mm)UR |
6E8-45587-30-00 |
from US $9.35 |
||
|
5
|
5
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.53 |
||
|
6
|
6
664-45567-01-10 Shim (T:0.10Mm)UR |
664-45567-01-10 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
664-45567-01-00 Shim (T:0.10Mm)UR |
664-45567-01-00 |
from US $5.09 |
||
|
6
|
6
664-45567-01-12 Shim (T:0.12Mm)UR |
664-45567-01-12 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
664-45567-10-00 Shim (T:0.12Mm)UR |
664-45567-10-00 |
from US $5.09 |
||
|
6
|
6
664-45567-01-15 Shim (T:0.15Mm)UR |
664-45567-01-15 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
664-45567-20-00 Shim (T:0.15Mm)UR |
664-45567-20-00 |
from US $5.09 |
||
|
6
|
6
664-45567-01-18 Shim (T:0.18Mm)UR |
664-45567-01-18 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
664-45567-30-00 Shim (T:0.18Mm)UR |
664-45567-30-00 |
from US $5.09 |
||
|
6
|
6
664-45567-01-30 Shim (T0.30Mm)UR |
664-45567-01-30 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
664-45567-40-00 Shim (T:0.30Mm)UR |
664-45567-40-00 |
from US $5.09 |
||
|
6
|
6
664-45567-01-40 Shim (T:0.40Mm)UR |
664-45567-01-40 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
664-45567-50-00 Shim (T:0.40Mm)UR |
664-45567-50-00 |
from US $5.09 |
||
|
6
|
6
664-45567-01-50 Shim (T:0.50Mm)UR |
664-45567-01-50 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
664-45567-60-00 Shim (T:0.50Mm)UR |
664-45567-60-00 |
from US $5.09 |
||
|
7
|
7
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
7
|
7
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
8
|
8
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
9
|
9
63V-44301-00-00 Water Pump Housing Comp |
63V-44301-00-00 |
from US $39.68 |
||
|
10
|
10
63V-44322-00-00 Insert, Cartridge |
63V-44322-00-00 |
from US $11.92 |
||
|
11
|
11
647-44366-00-00
Damper, Water Seal 2
|
647-44366-00-00 |
— | ||
| replacement | |||||
|
11
|
11
647-44366-01-00 DAMPER WATER SEAL 2 |
647-44366-01-00 |
from US $1.66 |
||
|
12
|
12
63V-44352-00-00 Impeller |
63V-44352-00-00 |
US $23.52 |
||
| replacement | |||||
|
12
|
12
63V-44352-01-00 Impeller |
63V-44352-01-00 |
from US $23.52 |
||
|
13
|
13
664-44338-00-00 Key, Woodruff |
664-44338-00-00 |
from US $6.23 |
||
|
14
|
14
93210-44704-00 O-Ring |
93210-44704-00 |
from US $1.42 |
||
|
15
|
15
63V-44323-00-00 Outer Plate, Cartridge |
63V-44323-00-00 |
from US $9.92 |
||
|
16
|
16
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
17
|
17
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
18
|
18
63V-44328-00-00 Plate |
63V-44328-00-00 |
US $3.97 |
||
| replacement | |||||
|
18
|
18
63V-44328-01-00 Plate |
63V-44328-01-00 |
from US $3.97 |
||
|
19
|
19
63V-45331-00-5B Housing, Bearing |
63V-45331-00-5B |
US $57.47 |
||
| replacement | |||||
|
19
|
19
63V-45331-00-CA Housing, Bearing |
63V-45331-00-CA |
from US $57.47 |
||
|
20
|
20
626-45316-09-00 Bushing, Drive Shaft 1 |
626-45316-09-00 |
from US $19.52 |
||
|
21
|
21
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $5.96 |
||
| replacement | |||||
|
21
|
21
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $3.64 |
||
|
22
|
22
63V-45315-A0-00 Packing, Lower Casing |
63V-45315-A0-00 |
from US $4.53 |
||
|
23
|
23
93210-06ME6-00 O-Ring |
93210-06ME6-00 |
from US $2 |
||
|
24
|
24
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
25
|
25
63V-44150-00-00 Shift Cam AssyUR SHORT |
63V-44150-00-00 |
from US $68.80 |
||
|
25
|
25
63V-44150-10-00 Shift Cam AssemblyUR LONG |
63V-44150-10-00 |
from US $68.80 |
||
|
26
|
26
63V-45510-00-00
Drive Shaft Assembly (S)
UR SHORT |
63V-45510-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99030-58-00 Drive Shaft Assy Set (S)UR SHORT |
999-99030-58-00 |
from US $383.01 |
||
|
26
|
26
63V-45510-10-00
Drive Shaft Assembly (L)
UR LONG |
63V-45510-10-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99030-59-00 Drive Shaft Assy Set (L)UR LONG |
999-99030-59-00 |
from US $383.01 |
||
|
27
|
27
6E7-45551-00-00 Pinion (13T)13T |
6E7-45551-00-00 |
from US $97.68 |
||
|
28
|
28
901-7908M-06-00 Nut |
901-7908M-06-00 |
from US $4.11 |
||
|
29
|
29
6E7-45560-00-00 Gear |
6E7-45560-00-00 |
US $147.83 |
||
| replacement | |||||
|
29
|
29
6E7-45560-01-00 Gear 1 (27T) |
6E7-45560-01-00 |
from US $79.68 |
||
|
30
|
30
6E7-45571-00-00 Gear 2 (27T)27T |
6E7-45571-00-00 |
from US $140.92 |
||
|
31
|
31
626-45577-00-01 Shim (T:0.10Mm)UR |
626-45577-00-01 |
US $4.53 |
||
| replacement | |||||
|
31
|
31
626-45577-00-00 Shim (T:0.10Mm)UR |
626-45577-00-00 |
from US $4.53 |
||
|
31
|
31
626-45577-00-03 Shim (T:0.30Mm)UR |
626-45577-00-03 |
US $4.53 |
||
| replacement | |||||
|
31
|
31
626-45577-20-00 Shim (T:0.30Mm)UR |
626-45577-20-00 |
from US $2.32 |
||
|
31
|
31
626-45577-00-55
Shim (T:0.10Mm)
UR |
626-45577-00-55 |
— | ||
|
32
|
32
90201-17682-00 Washer, Plate |
90201-17682-00 |
from US $1.84 |
||
|
33
|
33
683-45611-00-00 Shaft, Propeller |
683-45611-00-00 |
from US $203 |
||
|
34
|
34
650-45635-00-00 Plunger, Shift |
650-45635-00-00 |
from US $3.64 |
||
|
35
|
35
682-45631-00-00 Clutch, Dog |
682-45631-00-00 |
from US $32.08 |
||
|
36
|
36
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2 |
||
|
37
|
37
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
37
|
37
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.41 |
||
|
38
|
38
90501-14M06-00 Spring, Compression |
90501-14M06-00 |
US $4.39 |
||
| replacement | |||||
|
38
|
38
90501-14M09-00 Spring, Compression |
90501-14M09-00 |
from US $2.98 |
||
|
39
|
39
683-45361-01-4D Cap, Lower Casing |
683-45361-01-4D |
US $92.01 |
||
| replacement | |||||
|
39
|
39
683-45361-02-8D Cap, Lower Casing |
683-45361-02-8D |
from US $92.01 |
||
|
40
|
40
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.88 |
||
|
41
|
41
93315-317U2-00 Bearing |
93315-317U2-00 |
from US $8.93 |
||
|
42
|
42
931-01170-54-00 Oil Seal |
931-01170-54-00 |
from US $8.28 |
||
|
43
|
43
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $2.66 |
||
|
44
|
44
93210-56M80-00 O-Ring |
93210-56M80-00 |
from US $3.54 |
||
|
45
|
45
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
45
|
45
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
46
|
46
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
