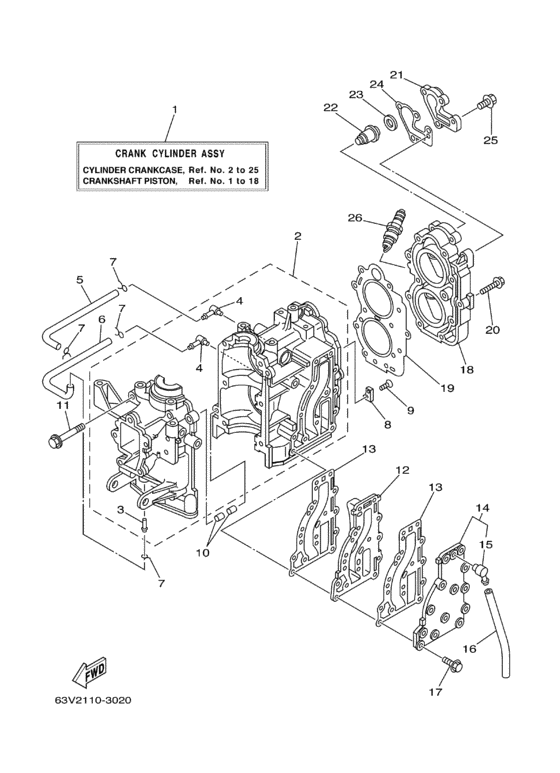

Cylinder crankcase Diagram Yamaha 15 MSH
- Year
- 2004
- Model
- 15
- Model code
- 63W
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63V-W0090-03-1S Crank Cylinder Assy |
63V-W0090-03-1S |
US $2,824.80 |
||
| replacement | |||||
|
1
|
1
63V-W0090-04-1S Crank Cylinder Assy |
63V-W0090-04-1S |
from US $1,484.68 |
||
|
2
|
2
63V-15100-02-1S Crankcase Assy |
63V-15100-02-1S |
US $1,821.60 |
||
| replacements | |||||
|
2
|
2
63V-15100-02-00 Crankcase Assy |
63V-15100-02-00 |
US $1,821.60 |
||
|
2
|
2
63V-15100-03-00 Crankcase Assy |
63V-15100-03-00 |
from US $898.18 |
||
|
3
|
3
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
4
|
4
650-14485-03-00 Pipe, Joint |
650-14485-03-00 |
from US $7.37 |
||
|
5
|
5
90445-07M08-00 Hose (L220) |
90445-07M08-00 |
US $4.25 |
||
| replacement | |||||
|
5
|
5
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
6
|
6
90445-07M08-00 Hose (L220) |
90445-07M08-00 |
US $4.25 |
||
| replacement | |||||
|
6
|
6
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
7
|
7
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
8
|
8
682-11325-00-00 Anode |
682-11325-00-00 |
from US $8.50 |
||
|
9
|
9
98780-05015-00 Screw, Flat Head |
98780-05015-00 |
US $2.13 |
||
| replacement | |||||
|
9
|
9
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
10
|
10
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
11
|
11
90119-08M07-00 Bolt, With Washer |
90119-08M07-00 |
from US $4.68 |
||
|
12
|
12
63V-41111-00-1S Inner Cover, Exhaust |
63V-41111-00-1S |
from US $26.49 |
||
|
13
|
13
63V-41112-A0-00 Gasket, Exhaust Inner Cover |
63V-41112-A0-00 |
from US $4.30 |
||
|
14
|
14
63V-41113-00-1S Outer Cover, Exhaust |
63V-41113-00-1S |
from US $43.24 |
||
|
15
|
15
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.28 |
||
|
16
|
16
90445-09105-00 Hose (L300) |
90445-09105-00 |
from US $6.52 |
||
| replacement | |||||
|
16
|
16
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
17
|
17
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.34 |
||
|
18
|
18
6E7-11111-01-1S Head, Cylinder 1 |
6E7-11111-01-1S |
from US $156.53 |
||
|
19
|
19
63V-11181-A1-00
Gasket, Cylinder Head 1
|
63V-11181-A1-00 |
— | ||
| replacement | |||||
|
19
|
19
63V-11181-A2-00 Gasket, Cylinder Head 1 |
63V-11181-A2-00 |
from US $28.12 |
||
|
20
|
20
90105-07M05-00 Bolt, Flange |
90105-07M05-00 |
from US $1.66 |
||
|
21
|
21
682-12413-00-1S Cover, Thermostat |
682-12413-00-1S |
from US $17.01 |
||
|
22
|
22
6E5-12411-30-00 Thermostat |
6E5-12411-30-00 |
from US $40.02 |
||
|
23
|
23
90201-16M03-00 Washer, Plate |
90201-16M03-00 |
from US $3.83 |
||
|
24
|
24
682-12414-A1-00 Gasket, Cover |
682-12414-A1-00 |
from US $2.66 |
||
|
25
|
25
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $1.34 |
||
|
26
|
26
NGK-B7HS1-00-00 Plug, Spark (Ngk B7Hs-10)B7HS-10 |
NGK-B7HS1-00-00 |
US $4.23 |
||
