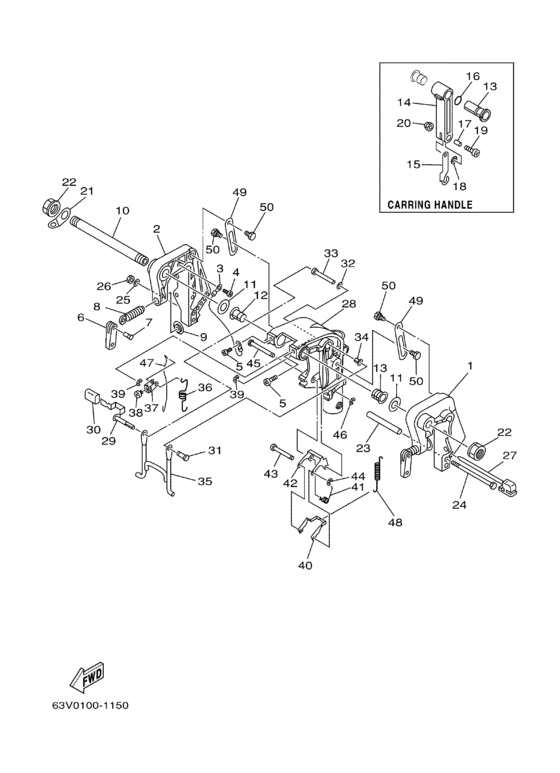

Bracket Diagram Yamaha 15 MSH
- Year
- 2001
- Model
- 15
- Model code
- 63W
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63V-43111-05-4D Bracket, Clamp 1 |
63V-43111-05-4D |
US $147.83 |
||
| replacement | |||||
|
1
|
1
63V-43111-07-8D BRACKET, CLAMP 1 |
63V-43111-07-8D |
from US $147.83 |
||
|
2
|
2
63V-43112-06-4D Bracket, Clamp 2 |
63V-43112-06-4D |
US $139.54 |
||
| replacements | |||||
|
2
|
2
63V-43112-08-4D Bracket, Clamp 2 |
63V-43112-08-4D |
US $139.54 |
||
|
2
|
2
63V-43112-08-8D BRACKET, CLAMP 2 |
63V-43112-08-8D |
from US $139.54 |
||
|
3
|
3
66M-82148-00-00 Wire, Lead 4 |
66M-82148-00-00 |
from US $13.88 |
||
|
4
|
4
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
5
|
5
97885-08010-00 Screw, Pan Head |
97885-08010-00 |
from US $3.54 |
||
|
6
|
6
6E0-43118-01-00
Handle, Transom Clamp
|
6E0-43118-01-00 |
— | ||
| replacements | |||||
|
6
|
6
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.19 |
||
|
6
|
6
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
7
|
7
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.41 |
||
|
8
|
8
6E7-43116-00-00
Screw, Transom Clamp
|
6E7-43116-00-00 |
— | ||
| replacements | |||||
|
8
|
8
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $27.77 |
||
|
8
|
8
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $9.26 |
||
|
9
|
9
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.30 |
||
|
10
|
10
63W-43131-00-00 Bolt, Clamp Bracket |
63W-43131-00-00 |
US $97.82 |
||
| replacement | |||||
|
10
|
10
999-99032-95-00 Clamp Bracket Bolt |
999-99032-95-00 |
from US $92.84 |
||
|
11
|
11
90202-22M54-00 Washer, Plate |
90202-22M54-00 |
from US $2.55 |
||
|
12
|
12
90386-22M94-00 Bush |
90386-22M94-00 |
from US $2 |
||
|
13
|
13
90386-22M69-00 1077 Bush (6K9) |
90386-22M69-00 |
from US $4.68 |
||
|
14
|
14
63V-42731-00-4D Carrying Handle |
63V-42731-00-4D |
US $64.66 |
||
| replacement | |||||
|
14
|
14
63V-42731-00-8D CARRYING HANDLE |
63V-42731-00-8D |
from US $34.22 |
||
|
15
|
15
63V-43676-01-00 Hook |
63V-43676-01-00 |
from US $7.23 |
||
|
16
|
16
93210-20M65-00 1081 O-Ring |
93210-20M65-00 |
from US $4.39 |
||
| replacement | |||||
|
16
|
16
93210-20801-00 O-Ring |
93210-20801-00 |
from US $1.28 |
||
|
17
|
17
90387-06M75-00 Collar(63V) |
90387-06M75-00 |
from US $8.22 |
||
|
18
|
18
90206-08010-00 Washer, Wave |
90206-08010-00 |
from US $3.97 |
||
|
19
|
19
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
20
|
20
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
21
|
21
6J8-43113-01-00 Plate, Clamp Bracket |
6J8-43113-01-00 |
from US $6.52 |
||
|
22
|
22
63V-43145-00-00 Cap, Clamp Bracket |
63V-43145-00-00 |
US $33.44 |
||
| replacement | |||||
|
22
|
22
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
23
|
23
90387-06M13-00 Collar |
90387-06M13-00 |
from US $10.20 |
||
|
24
|
24
90101-06M29-00 Bolt |
90101-06M29-00 |
from US $4.68 |
||
|
25
|
25
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
26
|
26
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
26
|
26
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
27
|
27
6L2-43160-00-00 Tilt Rod Assy |
6L2-43160-00-00 |
US $24.65 |
||
| replacement | |||||
|
27
|
27
6L2-43160-01-00 Tilt Rod Assy |
6L2-43160-01-00 |
from US $17.54 |
||
|
28
|
28
63V-43311-03-4D
Bracket, Swivel 1
|
63V-43311-03-4D |
— | ||
| replacement | |||||
|
28
|
28
63V-43311-03-8D BRACKET, SWIVEL 1 |
63V-43311-03-8D |
from US $292.90 |
||
|
29
|
29
66M-43630-01-00 Tilt Lever Assy |
66M-43630-01-00 |
from US $40.34 |
||
|
30
|
30
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.97 |
||
|
31
|
31
63V-43191-00-00 Shaft, Stopper |
63V-43191-00-00 |
from US $5.81 |
||
|
32
|
32
90202-07M60-00 Washer, Plate |
90202-07M60-00 |
from US $2.55 |
||
|
33
|
33
903-8707M-07-00 Collar |
903-8707M-07-00 |
from US $18.42 |
||
|
34
|
34
90386-07M95-00 Bush |
90386-07M95-00 |
from US $4.53 |
||
|
35
|
35
66M-43350-01-00 Receiver Assy |
66M-43350-01-00 |
from US $39.10 |
||
|
36
|
36
90507-20M00-00 Spring, Tension |
90507-20M00-00 |
from US $4.68 |
||
|
37
|
37
63V-43641-01-00 Lever, Tilt |
63V-43641-01-00 |
from US $6.80 |
||
|
38
|
38
90149-05M17-00 Screw |
90149-05M17-00 |
US $3.40 |
||
| replacement | |||||
|
38
|
38
985-85050-06-00 Screw, Pan Head |
985-85050-06-00 |
from US $1.56 |
||
|
39
|
39
93430-05027-00 Circlip |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
40
|
40
66R-43614-00-00 Plate, Tilt Lock |
66R-43614-00-00 |
from US $35.42 |
||
|
41
|
41
90508-18M41-00 Spring, Torsion |
90508-18M41-00 |
from US $6.09 |
||
|
42
|
42
66R-43615-00-00 Plate, Tilt Lock |
66R-43615-00-00 |
from US $19.41 |
||
|
43
|
43
66R-43611-00-00 Shaft, Tilt Lock |
66R-43611-00-00 |
from US $6.23 |
||
|
44
|
44
93430-04M03-00 Circlip |
93430-04M03-00 |
from US $1.56 |
||
| replacement | |||||
|
44
|
44
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
45
|
45
63V-43659-00-00 Shaft, Reverse Lock |
63V-43659-00-00 |
from US $7.93 |
||
|
46
|
46
93430-05027-00 Circlip |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
46
|
46
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
47
|
47
66R-43617-00-00 Rod, Tilt Lock |
66R-43617-00-00 |
from US $6.23 |
||
|
48
|
48
90506-26M38-00 Spring, Tension |
90506-26M38-00 |
from US $19.13 |
||
| replacement | |||||
|
48
|
48
63V-43656-00-00 Spring, Reverse Lock 1 |
63V-43656-00-00 |
from US $10.46 |
||
|
49
|
49
63V-43181-00-00 Lever, Tilt Stop 1 |
63V-43181-00-00 |
from US $20.12 |
||
|
50
|
50
90109-06M84-00 Bolt |
90109-06M84-00 |
from US $4.53 |
||
