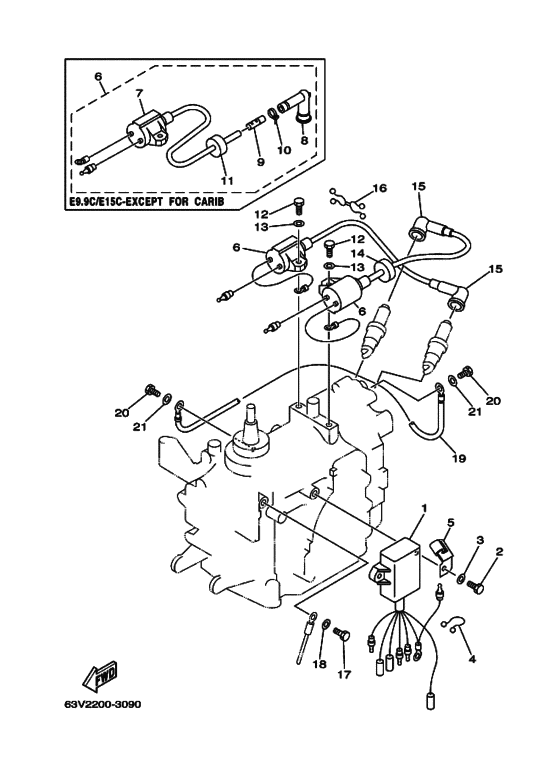

Electrical Diagram Yamaha 15 MHS/L/XL
- Year
- 2003
- Model
- E15C
- Model code
- 65F
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (090)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63V-85540-01-00
C.d.i. Unit Assy
|
63V-85540-01-00 |
— | ||
| replacements | |||||
|
1
|
1
63V-85540-02-00 C.d.i. Unit Assy |
63V-85540-02-00 |
US $339.87 |
||
|
1
|
1
63V-85540-03-00 CDI UNIT ASSY |
63V-85540-03-00 |
from US $251.10 |
||
|
2
|
2
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
2
|
2
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
3
|
3
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
90464-15M11-00 Clamp |
90464-15M11-00 |
US $1.70 |
||
| replacement | |||||
|
4
|
4
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
5
|
5
90465-08M61-00 Clamp |
90465-08M61-00 |
from US $8.50 |
||
|
6
|
6
63V-85570-00-00 Ignition Coil AssyE9.9C/E15C-CARIB |
63V-85570-00-00 |
US $95.61 |
||
| replacements | |||||
|
6
|
6
65E-85570-00-00 Ignition Coil AssyE9.9C/E15C-CARIB |
65E-85570-00-00 |
US $160.27 |
||
| replacements | |||||
|
6
|
6
65E-85570-01-00
IGNITION COIL ASSY
E9.9C/E15C-CARIB |
65E-85570-01-00 |
— | ||
|
6
|
6
65E-85570-02-00 Shaft,Throttle ConE9.9C/E15C-CARIB |
65E-85570-02-00 |
from US $129.51 |
||
|
6
|
6
63V-85570-01-00 Ignition Coil AssyE9.9C/E15C-CARIB |
63V-85570-01-00 |
US $95.61 |
||
|
6
|
6
65E-85570-01-00
IGNITION COIL ASSY
E9.9C/E15C-CARIB |
65E-85570-01-00 |
— | ||
|
6
|
6
65E-85570-02-00 Shaft,Throttle ConE9.9C/E15C-CARIB |
65E-85570-02-00 |
from US $129.51 |
||
|
6
|
6
63V-85570-10-00 IGNITION COIL ASSYE9.9C/E15C-CARIB |
63V-85570-10-00 |
from US $100.37 |
||
|
6
|
6
65E-85530-00-00
Ignition Coil Assy
EXCEPT CARIB |
65E-85530-00-00 |
— | ||
|
7
|
7
65E-85570-00-00 Ignition Coil Assy |
65E-85570-00-00 |
US $160.27 |
||
| replacements | |||||
|
7
|
7
65E-85570-01-00
IGNITION COIL ASSY
|
65E-85570-01-00 |
— | ||
|
7
|
7
65E-85570-02-00 Shaft,Throttle Con |
65E-85570-02-00 |
from US $129.51 |
||
|
8
|
8
62E-82371-11-00 Cap, Plug |
62E-82371-11-00 |
from US $22.81 |
||
|
9
|
9
62E-8231X-00-00 Terminal 1 |
62E-8231X-00-00 |
US $4.68 |
||
|
10
|
10
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
10
|
10
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
10
|
10
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
11
|
11
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
12
|
12
97095-06018-00 Bolt |
97095-06018-00 |
from US $4.11 |
||
| replacement | |||||
|
12
|
12
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
90480-25161-00 GrommetE9.9C/E15C-CARIB |
90480-25161-00 |
from US $2.41 |
||
|
15
|
15
6E3-82370-21-00 Plug Cap AssyE9.9C/E15C-CARIB |
6E3-82370-21-00 |
from US $15.53 |
||
|
16
|
16
90464-08M02-00 Clamp |
90464-08M02-00 |
from US $6.52 |
||
|
17
|
17
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
662-82519-00-00 Wire, Earth Lead |
662-82519-00-00 |
from US $7.76 |
||
|
20
|
20
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
21
|
21
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
