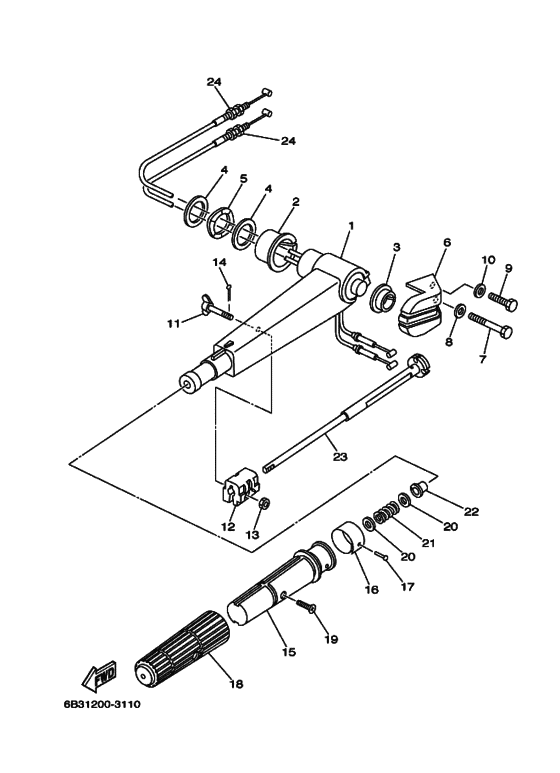

Steering Diagram Yamaha 15 MHS/L/XL
- Year
- 2003
- Model
- E15D
- Model code
- 6B4
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (140)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6B4-42111-00-4D Handle, Steering |
6B4-42111-00-4D |
US $83.31 |
||
|
2
|
2
903-81350-01-00 Bush, Solid |
903-81350-01-00 |
US $3.12 |
||
|
3
|
3
90381-20001-00 Bush, Solid |
90381-20001-00 |
from US $2.98 |
||
|
4
|
4
90201-28013-00 Washer, Plate |
90201-28013-00 |
US $2.69 |
||
|
5
|
5
90206-28001-00 Washer, Wave |
90206-28001-00 |
US $5.53 |
||
|
6
|
6
6B4-42131-00-4D Cover, Handle Steering |
6B4-42131-00-4D |
US $27.34 |
||
|
7
|
7
97095-08055-00 Bolt |
97095-08055-00 |
from US $6.66 |
||
|
8
|
8
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
9
|
9
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
9
|
9
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
10
|
10
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
11
|
11
6B4-42125-00-00 Bolt, Friction Adjusting |
6B4-42125-00-00 |
US $11.76 |
||
|
12
|
12
6B4-42126-00-00 Friction, Steering Handle Grip |
6B4-42126-00-00 |
US $8.64 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
14
|
14
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
15
|
15
6B4-42119-00-00 Grip, Steering Handle |
6B4-42119-00-00 |
US $37.99 |
||
|
16
|
16
6F5-42137-00-00 Indicator, Throttle |
6F5-42137-00-00 |
US $12.47 |
||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
18
|
18
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
18
|
18
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
19
|
19
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
19
|
19
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
20
|
20
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
|
21
|
21
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
22
|
22
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
23
|
23
6B4-42138-00-00 Lever, Throttle |
6B4-42138-00-00 |
US $45.73 |
||
|
24
|
24
6B4-26301-00-00 Throttle Cable Assy |
6B4-26301-00-00 |
from US $14.88 |
||
