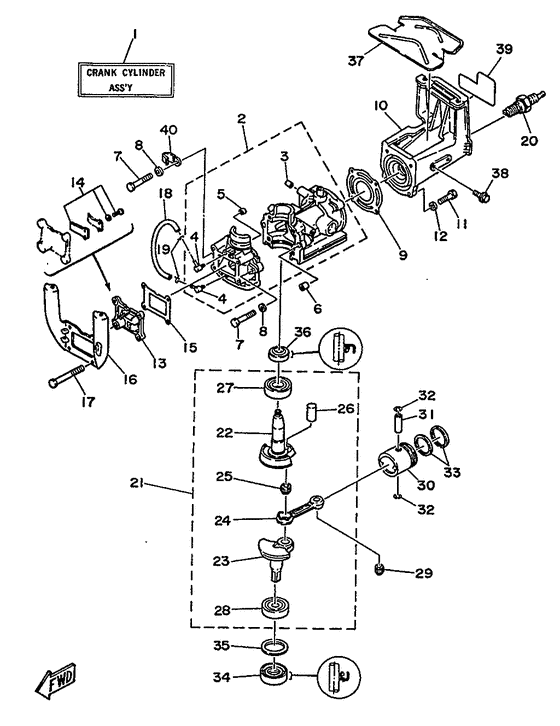

Crankcase, cylinder & piston Diagram Yamaha 2 MHS
- Year
- 1986
- Model
- 2B
- Model code
- 6A1
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6A1-W0090-21-00
Crank Cylinder Assy
|
6A1-W0090-21-00 |
— | ||
|
02
|
02
6A1-15100-60-94
Crankcase Assembly
|
6A1-15100-60-94 |
— | ||
| replacements | |||||
|
02
|
02
6A1-15100-60-1S
Crank Case Assy
|
6A1-15100-60-1S |
— | ||
|
02
|
02
6A1-15100-61-1S
Crankcase Assy
|
6A1-15100-61-1S |
— | ||
|
03
|
03
90336-06001-00 Plug, Taper |
90336-06001-00 |
from US $2.98 |
||
|
04
|
04
650-14485-02-00 Pipe, Joint |
650-14485-02-00 |
US $7.37 |
||
| replacement | |||||
|
04
|
04
650-14485-03-00 Pipe, Joint |
650-14485-03-00 |
from US $7.37 |
||
|
05
|
05
624-11379-00-00 Valve, Check |
624-11379-00-00 |
from US $3.38 |
||
|
06
|
06
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
06
|
06
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
06
|
06
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
07
|
07
97313-06040-00 Bolt (682) |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
07
|
07
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
08
|
08
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
646-11181-01-00 Gasket, Cylinder Head 1 |
646-11181-01-00 |
US $27.77 |
||
| replacement | |||||
|
09
|
09
6A1-11181-A1-00 Gasket, Cylinder Head 1 |
6A1-11181-A1-00 |
from US $25.11 |
||
|
10
|
10
6A1-11111-01-94 Head, Cylinder 1 |
6A1-11111-01-94 |
US $109.70 |
||
| replacement | |||||
|
10
|
10
6A1-11111-02-1S Head, Cylinder 1 |
6A1-11111-02-1S |
from US $109.70 |
||
|
11
|
11
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
6A1-13610-00-00 Reed Valve Assy |
6A1-13610-00-00 |
US $77.78 |
||
|
14
|
14
6A1-W0004-00-00 Reed Set |
6A1-W0004-00-00 |
from US $22.53 |
||
|
15
|
15
6A1-13621-00-00 Gasket, Valve Seat |
6A1-13621-00-00 |
US $3.68 |
||
| replacements | |||||
|
15
|
15
6A1-13621-A0-00 Gasket, Valve Seat |
6A1-13621-A0-00 |
US $3.68 |
||
|
15
|
15
6GD-E3621-00-00 Gasket, Valve Seat |
6GD-E3621-00-00 |
US $5.36 |
||
|
16
|
16
6A1-15771-00-00 Stay 1 |
6A1-15771-00-00 |
US $47.25 |
||
| replacement | |||||
|
16
|
16
6A1-15771-01-00 Stay 1 |
6A1-15771-01-00 |
from US $35.03 |
||
|
17
|
17
97313-06060-00 Bolt, Hex |
97313-06060-00 |
from US $4.14 |
||
| replacement | |||||
|
17
|
17
97013-06060-00 Bolt |
97013-06060-00 |
from US $5.68 |
||
|
18
|
18
90445-07M51-00 Hose (L120) |
90445-07M51-00 |
US $3.83 |
||
| replacement | |||||
|
18
|
18
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.36 |
||
|
19
|
19
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
20
|
20
94702-00249-00
Plug, Spark (Ngk Br5Hs)
|
94702-00249-00 |
— | ||
|
21
|
21
6A1-11400-00-00 Crankshaft Assy |
6A1-11400-00-00 |
US $353.69 |
||
| replacement | |||||
|
21
|
21
6GD-E1400-00-00 Crankshaft Assy |
6GD-E1400-00-00 |
US $369.36 |
||
|
22
|
22
646-11412-01-00 Crank 1 |
646-11412-01-00 |
US $137.88 |
||
|
23
|
23
6A1-11422-00-00 Crank 2 |
6A1-11422-00-00 |
US $153.36 |
||
|
24
|
24
646-11651-02-00 Rod, Connecting |
646-11651-02-00 |
from US $80.80 |
||
|
25
|
25
93310-31439-00 Bearing |
93310-31439-00 |
from US $13.03 |
||
|
26
|
26
646-11681-00-00 Pin, Crank 1 |
646-11681-00-00 |
US $17.14 |
||
|
27
|
27
93306-00409-00 Bearing |
93306-00409-00 |
from US $21.68 |
||
|
28
|
28
93306-30204-00 Bearing |
93306-30204-00 |
from US $18.28 |
||
|
29
|
29
93310-210M0-00 Bearing |
93310-210M0-00 |
from US $10.48 |
||
|
30
|
30
646-11631-01-98 Piston (Std) |
646-11631-01-98 |
US $40.01 |
||
| replacement | |||||
|
30
|
30
646-11631-01-97 Piston (Std) |
646-11631-01-97 |
US $40.01 |
||
|
30
|
30
646-11635-01-00
Piston (0.25Mm O/s)
Ap |
646-11635-01-00 |
— | ||
|
30
|
30
646-11636-01-00 Piston (0.50Mm O/s)Ap |
646-11636-01-00 |
US $73.71 |
||
|
31
|
31
646-11633-00-00 Pin, Piston |
646-11633-00-00 |
from US $12.04 |
||
|
32
|
32
93450-11021-00 Circlip |
93450-11021-00 |
from US $1.36 |
||
|
33
|
33
646-11601-01-00 Piston Ring Set (Std) |
646-11601-01-00 |
from US $27.43 |
||
|
33
|
33
646-11601-11-00 Piston Ring Set (0.25Mm O/s)Ur |
646-11601-11-00 |
from US $16.40 |
||
|
33
|
33
646-11601-21-00
Piston Ring Set (0.50Mm O/s)
Ur |
646-11601-21-00 |
— | ||
|
34
|
34
931-02200-70-00
Oil Seal
|
931-02200-70-00 |
— | ||
| replacement | |||||
|
34
|
34
931-02201-08-00 Oil Seal (20X30X7-371) |
931-02201-08-00 |
from US $11.18 |
||
|
35
|
35
90201-35300-00 Washer, Plate |
90201-35300-00 |
US $9.32 |
||
| replacement | |||||
|
35
|
35
90201-352L0-00 Washer, Plate |
90201-352L0-00 |
from US $3.09 |
||
|
36
|
36
93102-15085-00 Oil Seal |
93102-15085-00 |
US $6.94 |
||
| replacement | |||||
|
36
|
36
93102-15M32-00 Oil Seal |
93102-15M32-00 |
from US $6.94 |
||
|
37
|
37
6A1-24141-00-00 Protector, Fuel Tank |
6A1-24141-00-00 |
US $42.55 |
||
|
38
|
38
90105-06M23-00 Bolt Flange |
90105-06M23-00 |
from US $2.05 |
||
|
39
|
39
6A1-42678-20-00
Graphic, Rear
|
6A1-42678-20-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
