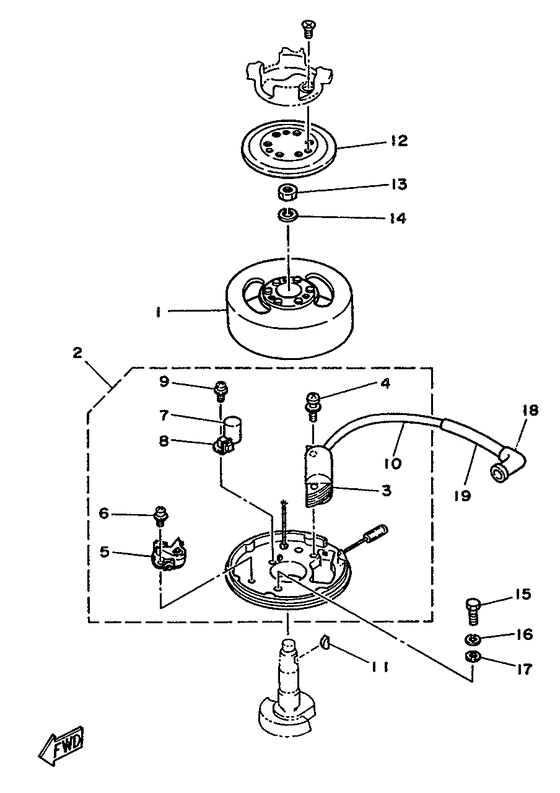

Generator Diagram Yamaha 2 MHS
- Year
- 1990
- Model
- 2B
- Model code
- 6A1
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6A1-81350-20-00
Rotor Assembly
|
6A1-81350-20-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6A1-81310-20-00
Base Assembly
|
6A1-81310-20-00 |
— | ||
|
03
|
03
6A1-81311-20-00 Coil, Ignition 1 |
6A1-81311-20-00 |
US $191.16 |
||
|
04
|
04
90159-05040-00 Screw, With Washer |
90159-05040-00 |
from US $1.98 |
||
| replacement | |||||
|
04
|
04
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
05
|
05
806-81321-20-00 Contact Brkr Assembly |
806-81321-20-00 |
from US $41.62 |
||
|
06
|
06
90159-04036-00
Screw, With Washer
|
90159-04036-00 |
— | ||
| replacement | |||||
|
06
|
06
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
07
|
07
624-81325-20-00
Condenser 1
|
624-81325-20-00 |
— | ||
|
08
|
08
116-81331-20-00 Lubricator |
116-81331-20-00 |
US $4.41 |
||
|
09
|
09
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
10
|
10
650-82340-10-00
High Tension Cord Assembly 1
|
650-82340-10-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90280-04M06-00 Key, Woodruff |
90280-04M06-00 |
from US $4.82 |
||
|
12
|
12
6A1-81362-00-00 Cover, Hole |
6A1-81362-00-00 |
from US $15.39 |
||
|
13
|
13
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
15
|
15
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
18
|
18
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
19
|
19
90446-10M05-00
Hose
|
90446-10M05-00 |
— | ||
