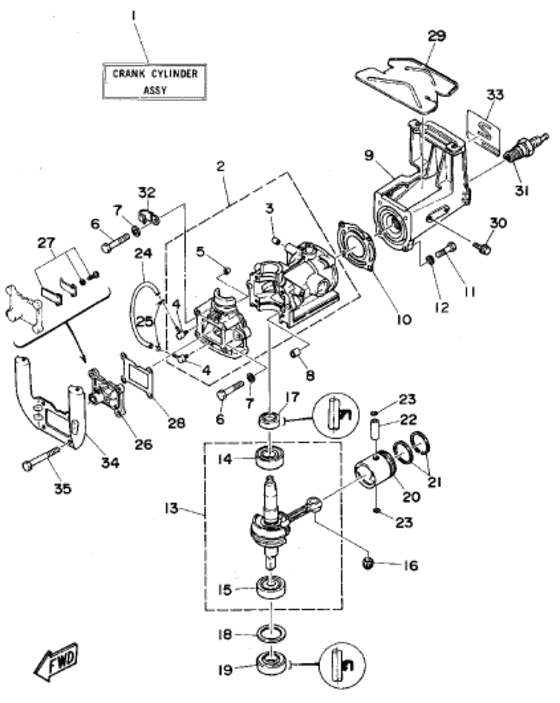

Cylinder crankcase Diagram Yamaha 2 MSH
- Year
- 1994
- Model
- 2
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A1-W0090-12-00
Crank Cylinder Assembly (Ref. #2~30)
|
6A1-W0090-12-00 |
— | ||
| replacement | |||||
|
1
|
1
6A1-W0090-12-1S
Crank Cylinder Assy
|
6A1-W0090-12-1S |
— | ||
|
2
|
2
6A1-15100-60-94
Crankcase Assembly
|
6A1-15100-60-94 |
— | ||
| replacements | |||||
|
2
|
2
6A1-15100-60-1S
Crank Case Assy
|
6A1-15100-60-1S |
— | ||
|
2
|
2
6A1-15100-61-1S
Crankcase Assy
|
6A1-15100-61-1S |
— | ||
|
3
|
3
90336-06001-00 Plug, Taper |
90336-06001-00 |
from US $2.98 |
||
|
4
|
4
650-14485-02-00 Pipe, Joint |
650-14485-02-00 |
US $7.37 |
||
| replacement | |||||
|
4
|
4
650-14485-03-00 Pipe, Joint |
650-14485-03-00 |
from US $7.37 |
||
|
5
|
5
624-11379-00-00 Valve, Check |
624-11379-00-00 |
from US $3.72 |
||
|
6
|
6
97313-06040-00 Bolt (682) |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
8
|
8
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
8
|
8
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
9
|
9
6A1-11111-01-94 Head, Cylinder 1 |
6A1-11111-01-94 |
US $109.70 |
||
| replacement | |||||
|
9
|
9
6A1-11111-02-1S Head, Cylinder 1 |
6A1-11111-02-1S |
from US $119.47 |
||
|
10
|
10
6A1-11181-A0-00 Gasket, Cylinder Head 1 |
6A1-11181-A0-00 |
US $27.77 |
||
| replacement | |||||
|
10
|
10
6A1-11181-A1-00 Gasket, Cylinder Head 1 |
6A1-11181-A1-00 |
from US $25.52 |
||
|
11
|
11
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
6A1-11400-00-00 Crankshaft Assy |
6A1-11400-00-00 |
US $353.69 |
||
| replacement | |||||
|
13
|
13
6GD-E1400-00-00 Crankshaft Assy |
6GD-E1400-00-00 |
US $369.36 |
||
|
14
|
14
93306-00409-00 Bearing |
93306-00409-00 |
from US $21.68 |
||
|
15
|
15
93306-30204-00 Bearing |
93306-30204-00 |
from US $18.28 |
||
|
16
|
16
93310-210V1-00 Bearing |
93310-210V1-00 |
from US $10.48 |
||
| replacement | |||||
|
16
|
16
93310-210M0-00 Bearing |
93310-210M0-00 |
from US $11.46 |
||
|
17
|
17
931-02201-08-00 Oil Seal (20X30X7-371) |
931-02201-08-00 |
from US $11.18 |
||
| replacement | |||||
|
17
|
17
93102-20814-00 Oil Seal |
93102-20814-00 |
from US $5.67 |
||
|
18
|
18
90201-35300-00 Washer, Plate |
90201-35300-00 |
US $9.32 |
||
| replacement | |||||
|
18
|
18
90201-352L0-00 Washer, Plate |
90201-352L0-00 |
from US $3.09 |
||
|
19
|
19
93102-15M32-00 Oil Seal |
93102-15M32-00 |
from US $6.94 |
||
|
20
|
20
646-11636-01-00 Piston (0.50Mm O/s)0.50MM O/S |
646-11636-01-00 |
US $73.71 |
||
|
20
|
20
646-11631-01-98 Piston (Std) |
646-11631-01-98 |
US $40.01 |
||
| replacement | |||||
|
20
|
20
646-11631-01-97 Piston (Std) |
646-11631-01-97 |
US $40.01 |
||
|
21
|
21
646-11601-21-00
Piston Ring Set (0.50Mm O/s)
0.50MM O/S |
646-11601-21-00 |
— | ||
|
21
|
21
646-11601-01-00 Piston Ring Set (Std) |
646-11601-01-00 |
from US $27.85 |
||
|
22
|
22
646-11633-00-00 Pin, Piston |
646-11633-00-00 |
from US $12.04 |
||
|
23
|
23
93450-11021-00 Circlip |
93450-11021-00 |
from US $1.70 |
||
|
24
|
24
90445-07M32-00 Hose (L120) |
90445-07M32-00 |
US $3.83 |
||
| replacement | |||||
|
24
|
24
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
25
|
25
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
26
|
26
6A1-13610-00-00 Reed Valve Assy |
6A1-13610-00-00 |
US $77.78 |
||
|
27
|
27
6A1-W0004-00-00 Reed Set |
6A1-W0004-00-00 |
from US $22.53 |
||
|
28
|
28
6A1-13621-A0-00 Gasket, Valve Seat |
6A1-13621-A0-00 |
US $3.68 |
||
| replacement | |||||
|
28
|
28
6GD-E3621-00-00 Gasket, Valve Seat |
6GD-E3621-00-00 |
from US $3.26 |
||
|
29
|
29
6A1-24141-00-00 Protector, Fuel Tank |
6A1-24141-00-00 |
US $42.55 |
||
|
30
|
30
95895-06010-00 Bolt, Flange |
95895-06010-00 |
US $2.13 |
||
| replacement | |||||
|
30
|
30
95880-06010-00 Bolt, Flange |
95880-06010-00 |
from US $1.56 |
||
|
31
|
31
NGK-B5HS0-00-00
Plug, Spark (Ngk B5Hs)
B5HS |
NGK-B5HS0-00-00 |
— | ||
| replacement | |||||
|
31
|
31
B5H-S0000-00-00
UNI CVR XL700/ XL760
B5HS |
B5H-S0000-00-00 |
— | ||
|
31
|
31
NGK-BR5HS-00-00
Plug, Spark (Ngk Br5Hs)
|
NGK-BR5HS-00-00 |
— | ||
|
32
|
32
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
33
|
33
6A1-42678-11-00
Graphic, Rear
|
6A1-42678-11-00 |
— | ||
|
34
|
34
6A1-15771-00-00 Stay 1 |
6A1-15771-00-00 |
US $47.25 |
||
| replacement | |||||
|
34
|
34
6A1-15771-01-00 Stay 1 |
6A1-15771-01-00 |
from US $35.03 |
||
|
35
|
35
97313-06060-00 Bolt, Hex |
97313-06060-00 |
from US $4.14 |
||
| replacement | |||||
|
35
|
35
97013-06060-00 Bolt |
97013-06060-00 |
from US $5.68 |
||
