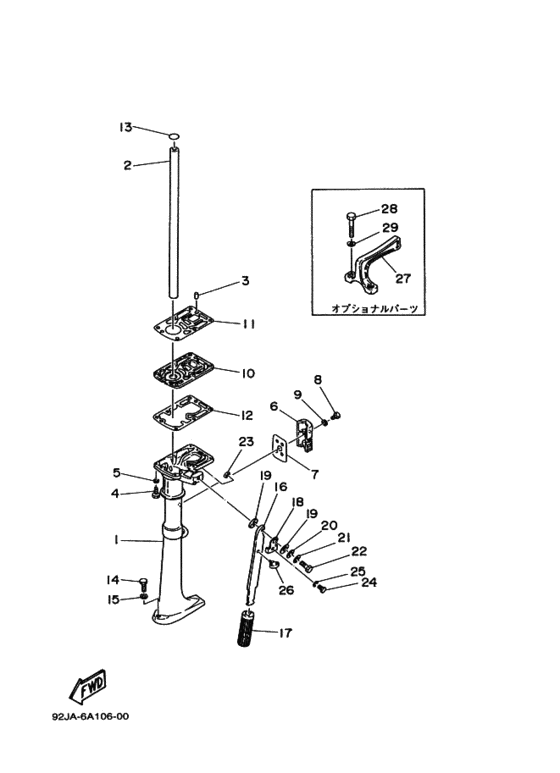

ｱﾂﾊﾟｰｹｰｼﾝｸﾞ Diagram Yamaha 2 MHS
- Year
- 1993
- Model
- 2B
- Model code
- 6A1
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A1-45111-02-EK
Casing, Upper
ケーシング，アツパー; |
6A1-45111-02-EK |
— | ||
| replacement | |||||
|
1
|
1
6A1-45111-03-EK
Upper Case
ケーシング，アツパー; |
6A1-45111-03-EK |
— | ||
|
2
|
2
6A1-45113-00-00 Pipeガスケツト，アツパーケーシング; |
6A1-45113-00-00 |
US $8.22 |
||
| replacement | |||||
|
2
|
2
6GD-G5113-00-00 Pipeガスケツト，アツパーケーシング; |
6GD-G5113-00-00 |
from US $7.26 |
||
|
3
|
3
93605-15065-00 Pin, Dowel |
93605-15065-00 |
from US $3.12 |
||
|
4
|
4
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
6
|
6
6A1-45151-00-00 Cover, Upper Casingカバー，アツパーケーシング; |
6A1-45151-00-00 |
from US $5.81 |
||
|
7
|
7
6A1-45115-00-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
6A1-45115-00-00 |
US $5.24 |
||
|
8
|
8
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
6A1-41137-00-5B Guide, Exhaustガイド，エキゾースト; |
6A1-41137-00-5B |
US $28.48 |
||
| replacements | |||||
|
10
|
10
6A1-41137-00-CA Guide, Exhaustガイド，エキゾースト; |
6A1-41137-00-CA |
US $28.48 |
||
|
10
|
10
6GD-G1137-00-8D Guide,Exhaustガイド，エキゾースト; |
6GD-G1137-00-8D |
US $94.16 |
||
|
11
|
11
6A1-14613-01-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
6A1-14613-01-00 |
US $9.63 |
||
| replacement | |||||
|
11
|
11
6A1-14613-A0-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
6A1-14613-A0-00 |
from US $9.85 |
||
|
12
|
12
646-14623-01-00 Gasket, Exst Pipeガスケツト，エキゾーストパイプ; |
646-14623-01-00 |
US $6.80 |
||
| replacement | |||||
|
12
|
12
646-14623-A1-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
646-14623-A1-00 |
from US $6.94 |
||
|
13
|
13
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
14
|
14
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
6A1-42111-00-EK
Handle, Steering
ハンドル，ステアリング; |
6A1-42111-00-EK |
— | ||
| replacement | |||||
|
16
|
16
6A1-42111-01-EK
Steering Handle
ハンドル，ステアリング; |
6A1-42111-01-EK |
— | ||
|
17
|
17
646-42119-02-00 Grip, Steering Handleグリツプ，ステアリングハンドル; |
646-42119-02-00 |
from US $17.71 |
||
|
18
|
18
6A1-42181-00-00 Washerワツシヤ; |
6A1-42181-00-00 |
US $3.26 |
||
|
19
|
19
90201-09117-00 Washer, Plateワツシヤ，プレート; |
90201-09117-00 |
from US $2.55 |
||
|
20
|
20
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.18 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
90101-08M11-00 Bolt |
90101-08M11-00 |
from US $2.55 |
||
|
23
|
23
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
23
|
23
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
24
|
24
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
24
|
24
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
25
|
25
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
646-42591-00-00 Holder, Shear Pinホルダ，シエアピン; |
646-42591-00-00 |
US $6.80 |
||
|
27
|
27
646-42121-00-94
Bracket
ＡＰ |
646-42121-00-94 |
— | ||
|
28
|
28
97395-06055-00 Bolt (97313-06055-00)ＡＰ |
97395-06055-00 |
from US $4.11 |
||
| replacements | |||||
|
28
|
28
97595-06555-00 Bolt, With WasherＡＰ |
97595-06555-00 |
from US $4.11 |
||
|
28
|
28
97E95-06555-00 Bolt, Hexagon W/w Deep RecessＡＰ |
97E95-06555-00 |
from US $1.21 |
||
|
29
|
29
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; ＡＰ |
929-90061-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-95061-00-00 Washer, Springワツシヤ，スプリング; ＡＰ |
929-95061-00-00 |
from US $0.97 |
||
