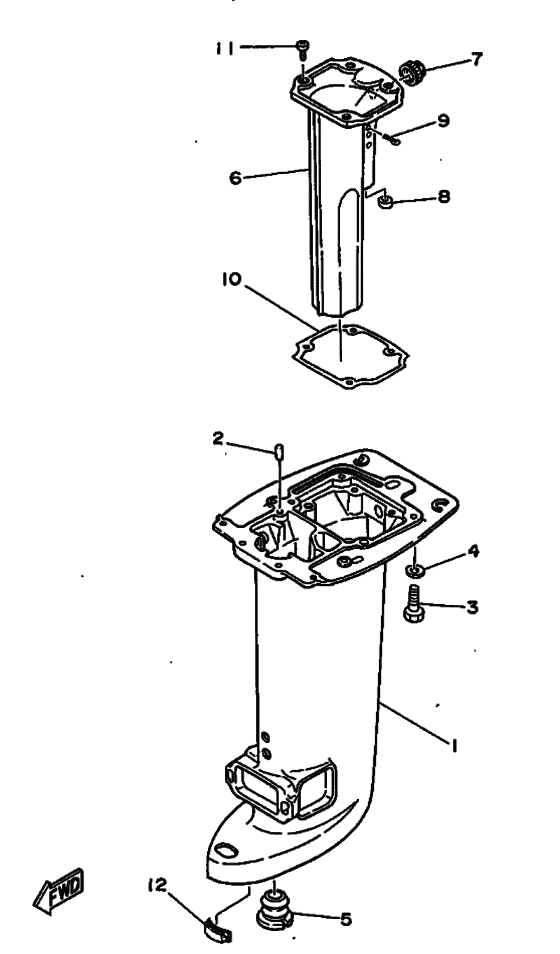

Upper casing Diagram Yamaha 20 MHS/L
- Year
- 1997
- Model
- 20C
- Model code
- 6A9
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-45111-04-4D Casing, UpperUR SHORT |
689-45111-04-4D |
US $429.70 |
||
| replacement | |||||
|
1
|
1
689-45111-04-8D Casing, UpperUR SHORT |
689-45111-04-8D |
US $533.59 |
||
|
1
|
1
689-45111-13-4D Casing, UpperUR LONG |
689-45111-13-4D |
from US $440.90 |
||
|
2
|
2
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
3
|
3
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
3
|
3
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
4
|
4
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
5
|
5
689-45127-00-00
Seal
|
689-45127-00-00 |
— | ||
|
6
|
6
664-41131-01-94 Manifold, Ext. 1 |
664-41131-01-94 |
US $179.61 |
||
| replacement | |||||
|
6
|
6
664-41131-01-00 MANIFOLD, EXT. 1 |
664-41131-01-00 |
from US $99.25 |
||
|
7
|
7
664-41133-00-00 Gasket, Exhaust Manifold 1 |
664-41133-00-00 |
from US $15.80 |
||
|
8
|
8
664-41135-00-00 Gasket, Exhaust Manifold |
664-41135-00-00 |
from US $11.03 |
||
|
9
|
9
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
10
|
10
664-41134-A0-00 Gasket, Exhaust Manifold |
664-41134-A0-00 |
from US $10.22 |
||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
12
|
12
64N-45375-00-00
Damper, Seal
|
64N-45375-00-00 |
— | ||
